Siemens SIVACON 8PS - Circuit diagrams; Tap-off unit with circuit breaker, 3-pole

Dimension drawings
8.5 Additional equipment
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
195

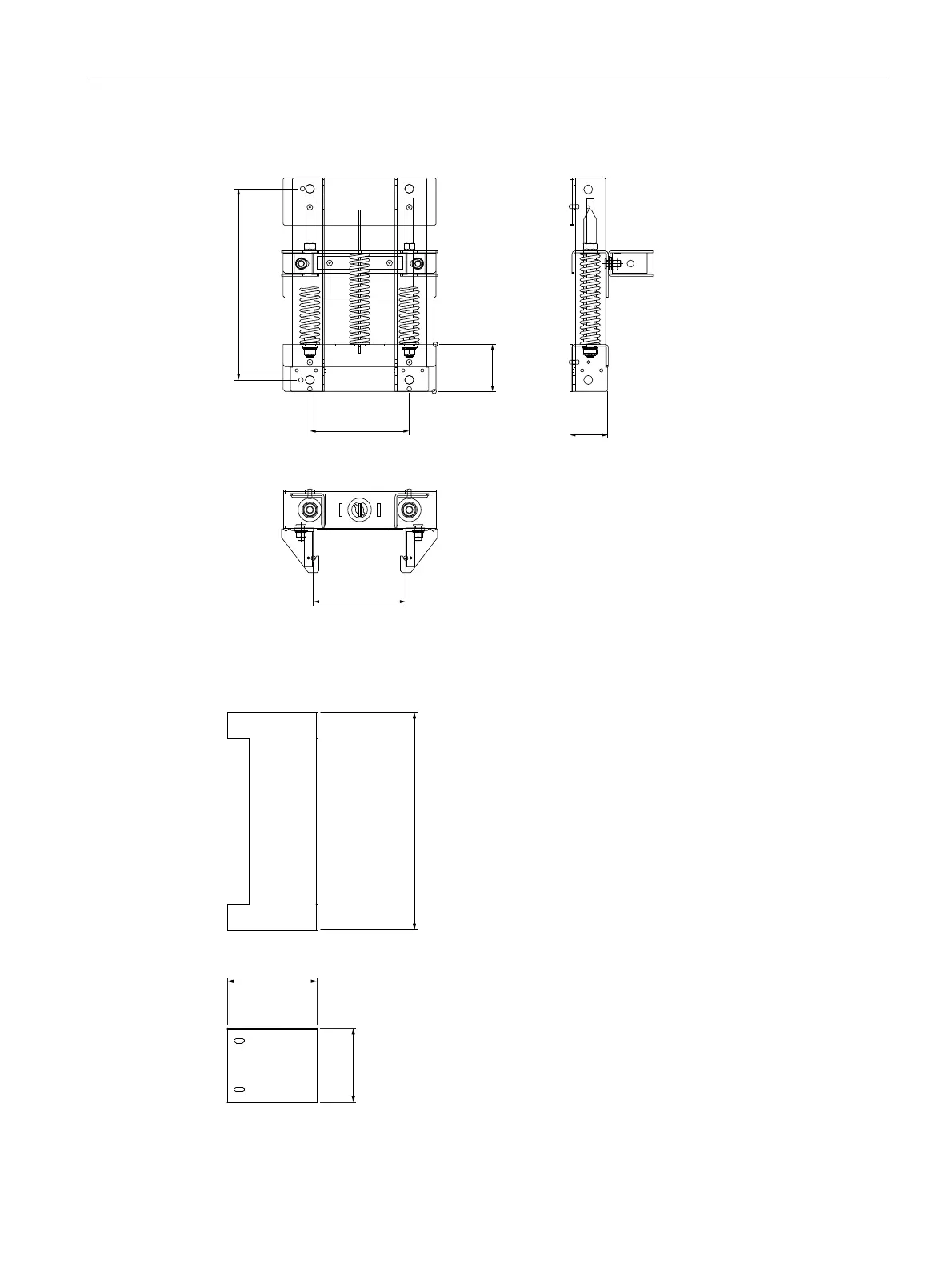

Fixing bracket





Figure 8-26 LX...-BV1(AK)/+LX-BVD
End cap
K


Figure 8-27 LX.....-EF
