Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
47
Universal busbar connection units
Connection units AS1 and AS3
Note
Ordering
When ordering the connection units, always specify the type suffixes for phase sequence
and phase distance.
Note
Flange plate
Equipped with an aluminium flange plate (type suffix +LX-FLP), the connection unit can be
flanged to a distribution board/transformer enclosure.
Values in brackets and dotted lines apply to the 5-core system.

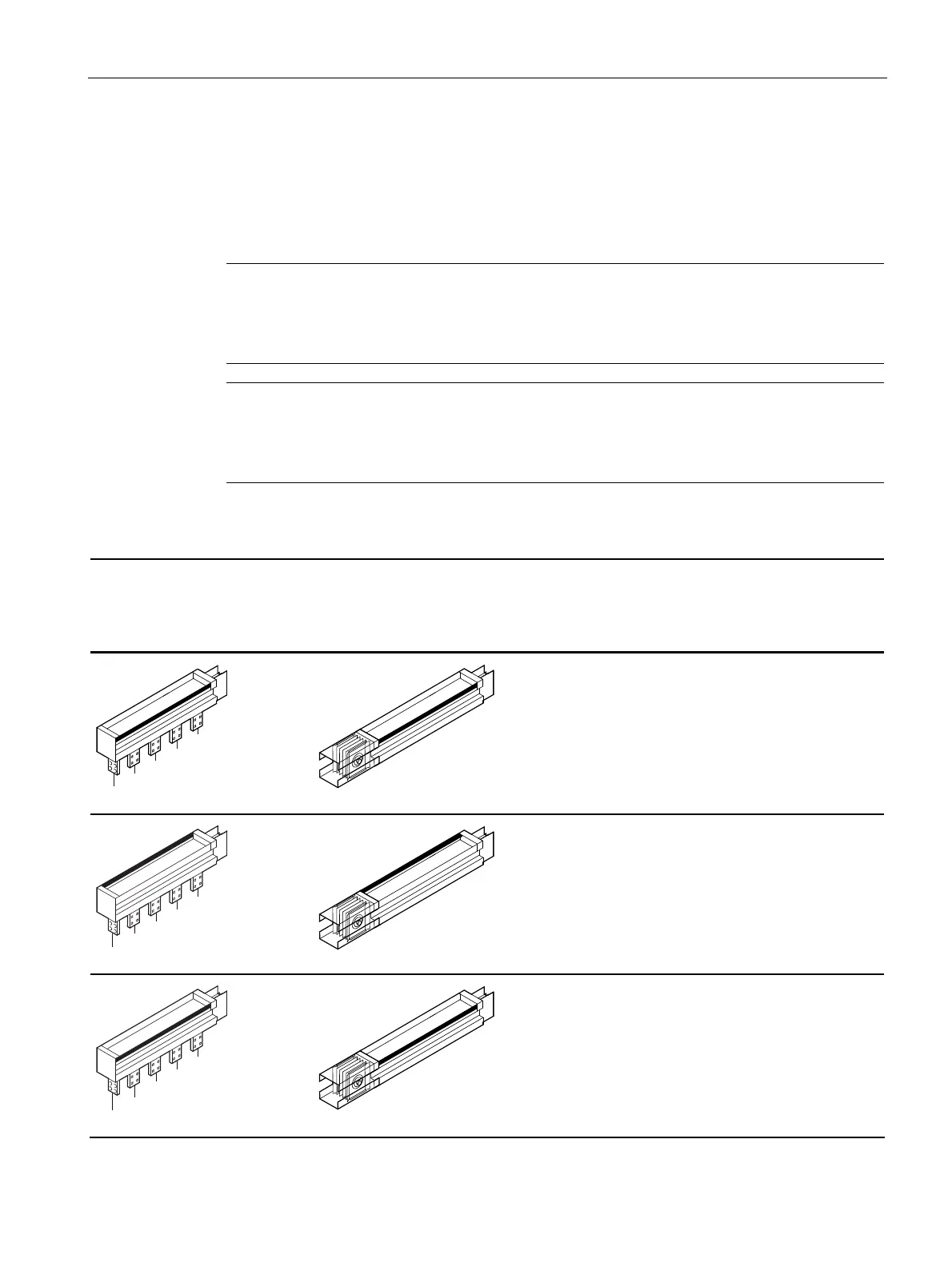

Phase sequence transformer
and LX connection
Installation position of
trunking units
Type
1)
Type suffix
Phase
sequence/
LX connection
Type suffix
Phase distance
3(11
/
3(
/
/
LX.....-AS. +LX-1A +LX-P*(/N*)
3(
/
/
/
3(11
LX.....-AS. +LX-2A +LX-P*(/N*)
3(
3(11
/
/
/
LX.....-AS. +LX-1B +LX-P*(/N*)
