4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
57

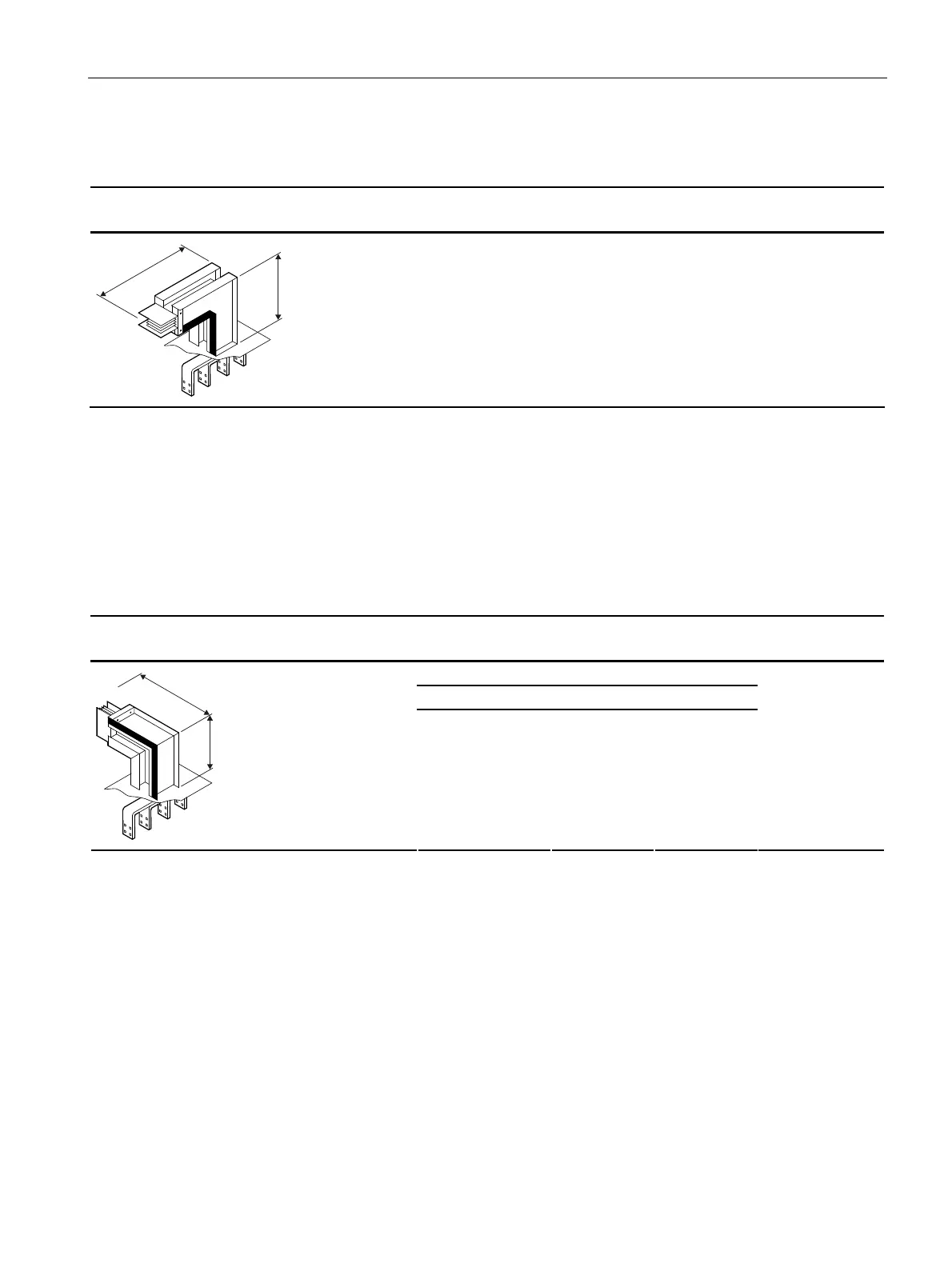

Non-Siemens distribution board connection units, connection elbow right
System Length X
[m]
Length Y
[m]
Type
1)
;
<
LX.01 to LX.10 0.35
2)
...0.70 0.22...0.55 LX.....-FLR-X*/Y*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-FLR-X0.70/Y0.53)
Non-Siemens distribution board connection units, connection knee rear
System Length X
[m]
Length Y
[m]
Type
1)
LX.01 to LX.04 0.35
2)
...0.70 0.35
2)
...0.70
LX.05 to LX.07 0.50
2)
...0.85 0.50
2)
...0.85
;
<
LX.08 to LX.10 0.80
2)
...1.15 0.80
2)
...1.15
LX.....-FLH-X*/Y*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-FLH-X0.70/Y0.53)
