Installation and mounting
5.2 Installing horizontal busbar runs
SIVACON 8PS - Configuring with LX system
70 Configuration Manual, 10/2011, A5E02194899-02
Standard installation
Trunking units are combined by joining the fronts (standard installation).
① Trunking unit with joint block
② Joint block
③ Trunking unit without joint block

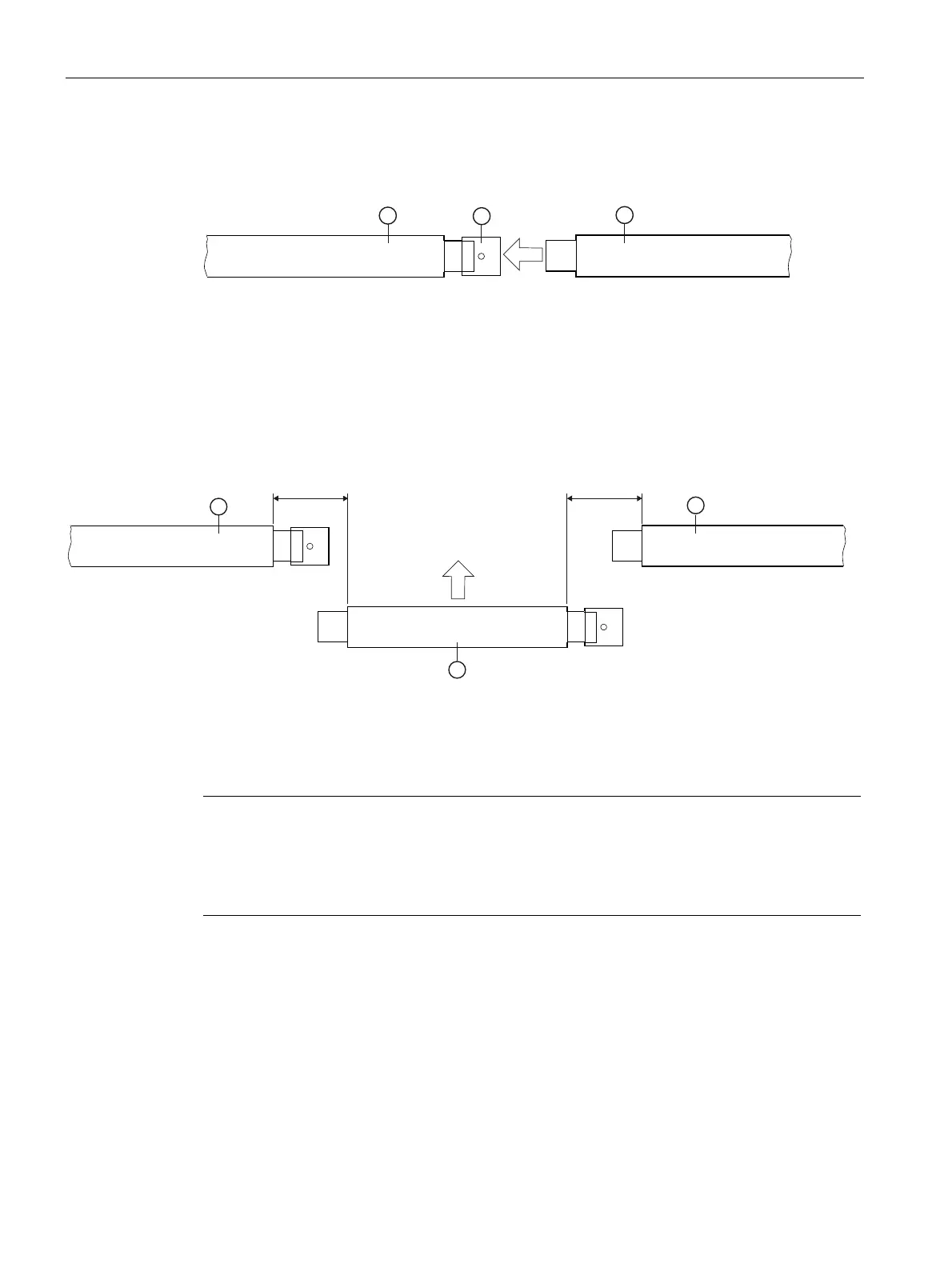

Figure 5-2 Joining the trunking units
When inserting custom lengths, the second trunking unit with joint block is inserted from
below.
① Trunking unit with joint block
② Trunking unit without joint block
Figure 5-3 Insertion of the second trunking unit
Note
Fixing bracket
Only the horizontal fixing brackets represented in the selection and ordering data must be
used for fixing the trunking units. This enables safe room for maneouver of the busbar run
during operation. The fixing brackets can be attached to the customer's fixing material.
