Installation and mounting
5.3 Distances from structures
SIVACON 8PS - Configuring with LX system
72 Configuration Manual, 10/2011, A5E02194899-02

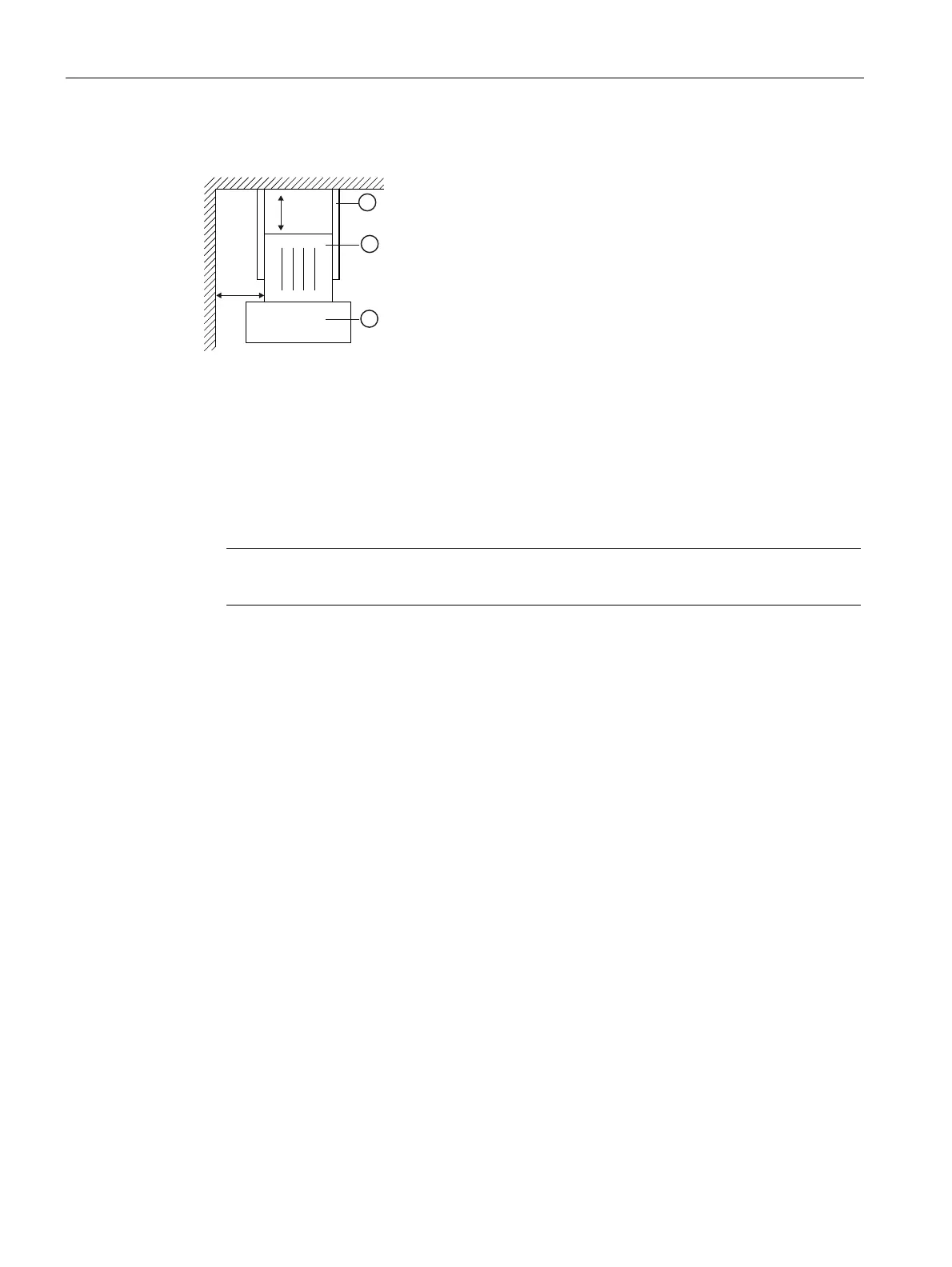

Minimum ceiling distance of vertical runs
:
PLQ
:
PLQ
① Vertical LX busbar run
② Tap-off unit
③ Vertical fixing brackets
The minimum lateral wall distance W
1min
depends on:
● The dimensions of the selected tap-off unit in power distribution.
● The space requirements for installing/uninstalling the trunking units and the vertical fixing
brackets.
Note
The fixing screws for the vertical fixing bracket must be sufficiently accessible.
The minimum wall distance W
2min
depends on the fixing material required by the customer to
compensate for uneven or sloping walls. The choice of fixing material depends on the load in
each case. The fixing brackets can be secured directly on the wall if the wall is completely
smooth and vertical.
You can find recommendations for distance dimensions in the planning manual "Planning
with SIVACON 8PS". Busbar trunking systems up to 6300 A (order number: A5E01541101)
