Configuration
6.1 Basic knowledge for configuring
SIVACON 8PS - Configuring with LX system
84 Configuration Manual, 10/2011, A5E02194899-02
T units
In the case of T units, the direction of the add-on unit (T tap-off unit) determines the type.
9

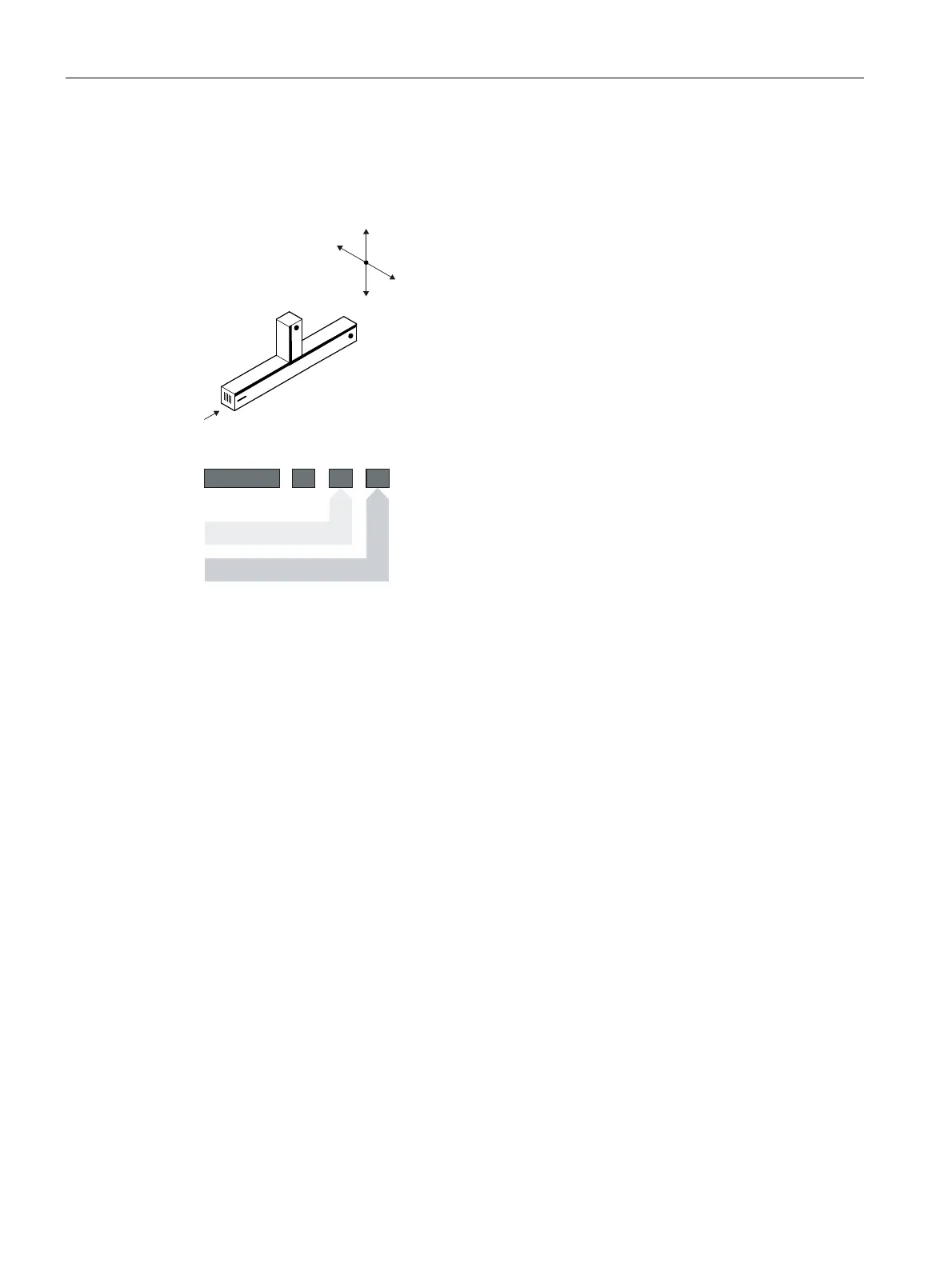

Figure 6-4 T unit (add-on unit top)
7EDVLFXQLW
'LUHFWLRQRIWKHDGGRQXQLW
/;$&
/;$&
 
7 9
