Configuration
6.1 Basic knowledge for configuring
SIVACON 8PS - Configuring with LX system
90 Configuration Manual, 10/2011, A5E02194899-02

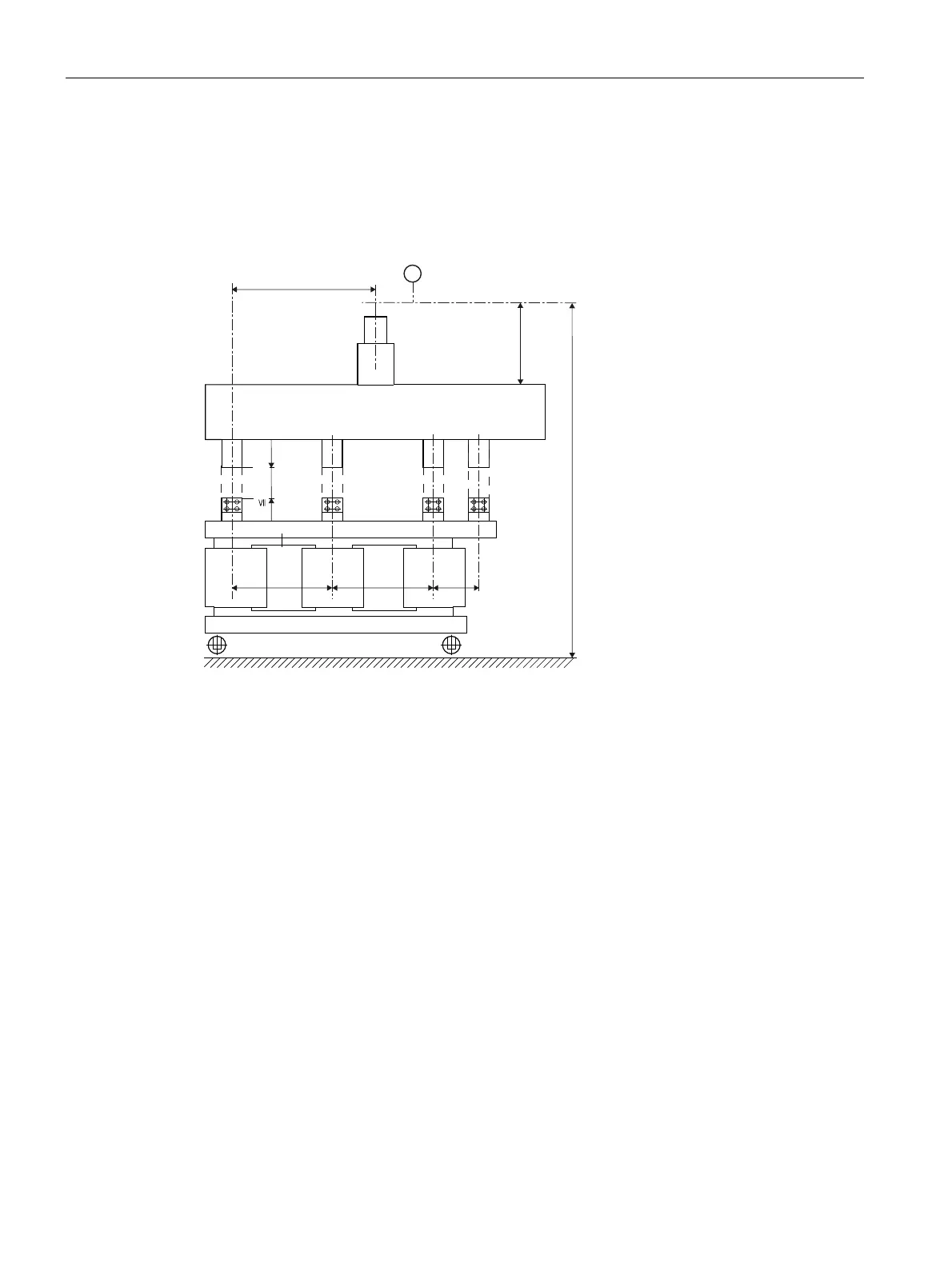

Positioning via transformers
The connection tags must always be positioned in the centre by means of the associated
connection tags of the transformer. The configuring dimensions a, b and c are decisive for
configuring the remaining run. You can find type-related dimension specifications for a under
Dimension drawings (Page 159) .
D
E
F
3(11
PP
① Centre of joint block
