Respiratory Gating
489

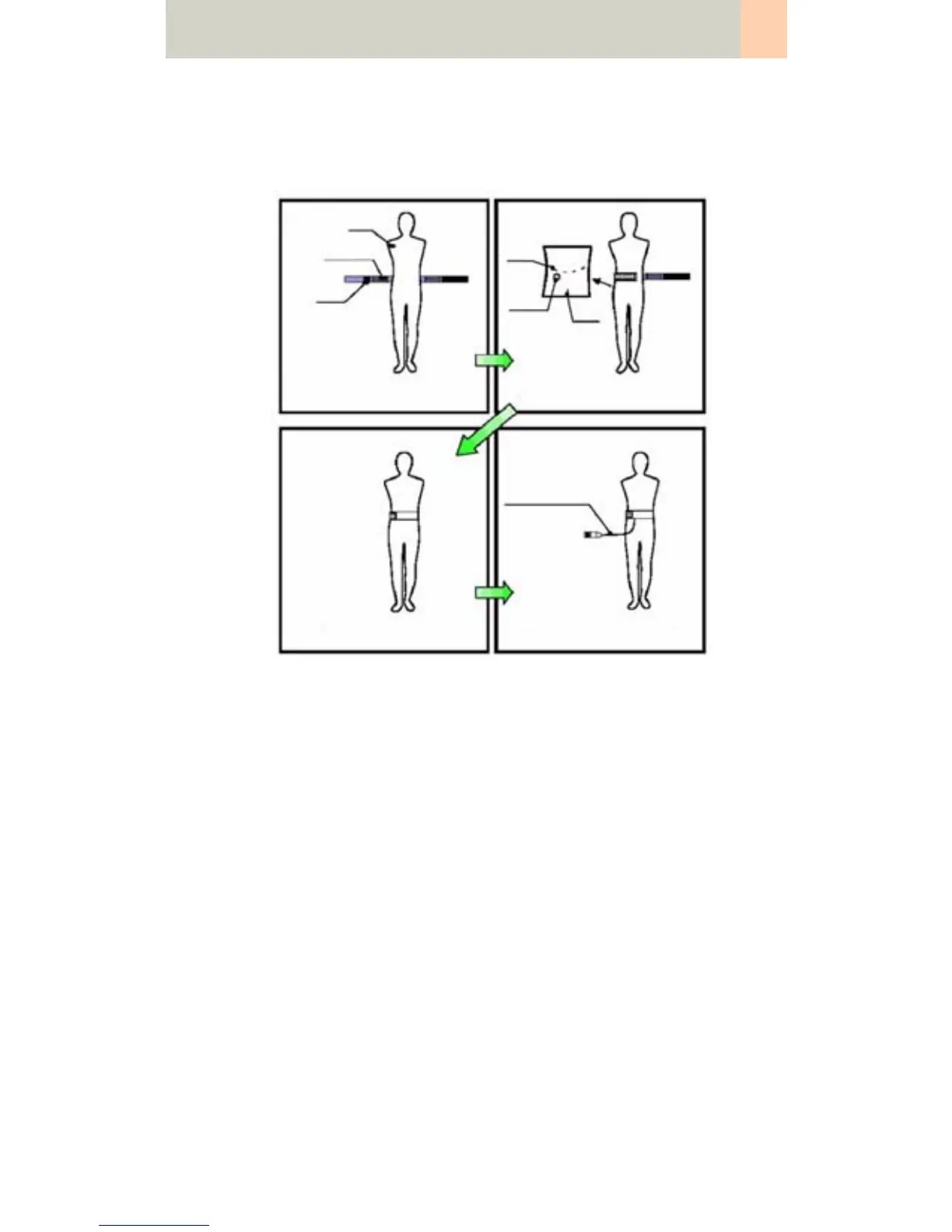

For proper belt positioning please follow the instruc-
tions below:
For further information on the respiratory gating sys-
tem AZ-733V (Anzai Medical, Japan), please refer to
the Operational manual "Respiratory Gating" or Anzai
User's manual.
Step 2
Step 4
patient
load cell fixing belt
The blue part should apply to the back of the
patient.
patient´s abdomen
the dia-
phragm
load cell
setting
point
navel
Securely fasten the fixing belt around the
patient.
load cell connection cable
Be careful load cell connection cable may
not entangle with the patient.
Step 1
load cell
Wind the load cell fixing belt around the
body so that the pocket (load cell part)
applies ontojust below the diaphragm.
Step 3

Siemens SOMATOM Specifications

General

Category	CT Scanner
Rotation Time	0.25 seconds
Tube Voltage	70-150 kV
Bore Size	78 cm
Max Table Load	250 kg
Gantry Aperture	78 cm
Table Weight Capacity	250 kg
X-ray Tube Voltage	70-150 kV
Scan Time per Rotation	0.25 seconds
Software	Syngo
Connectivity	DICOM
