52
Dose Information

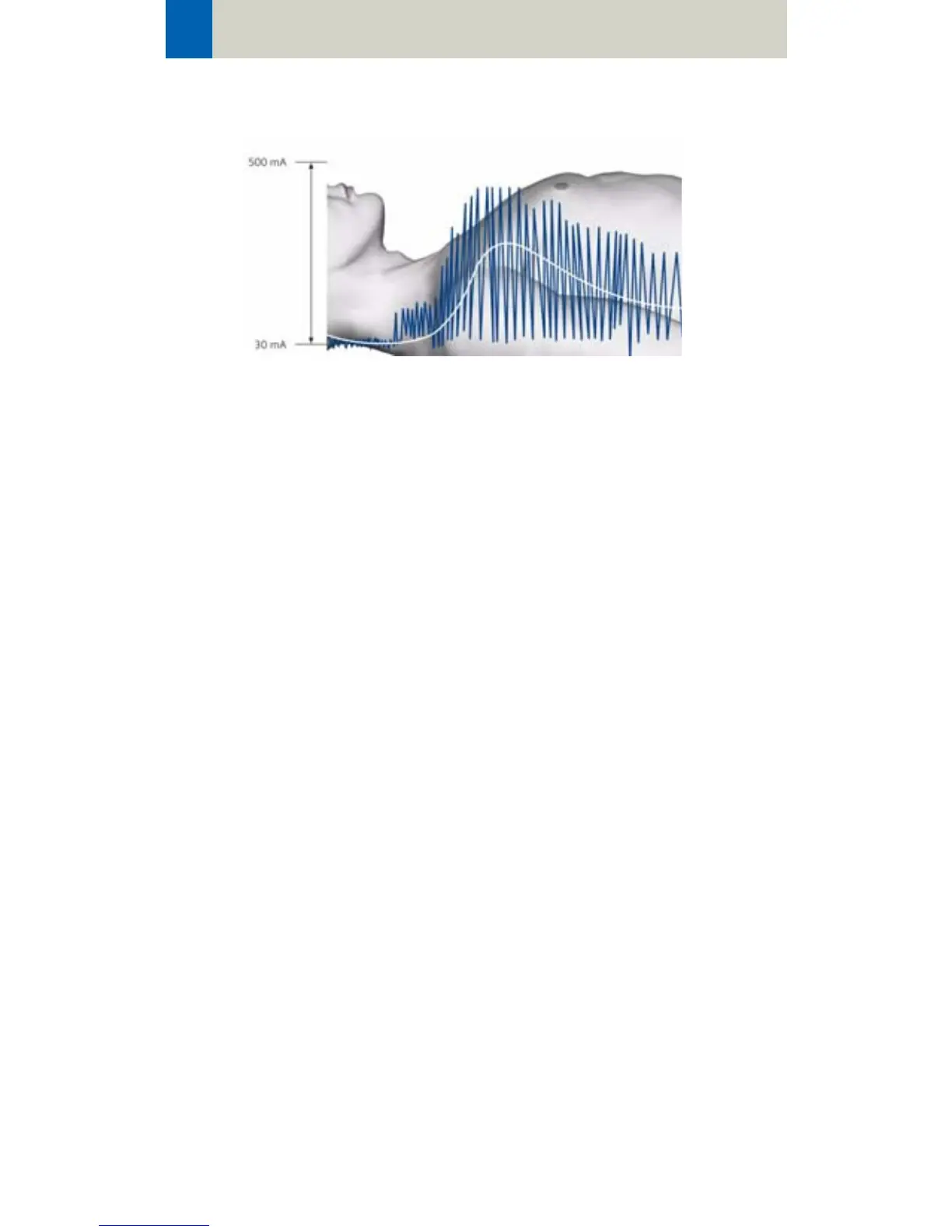

Principle of automatic tube current adaptation by
CARE Dose 4D for a spiral scan from shoulder to pelvis
(very high table feed for demonstration): High tube
current and strong modulation in shoulder and pelvis,
lower tube current and low modulation in abdomen
and thorax. The dotted lines represent the min. and
max. tube current at the corresponding table position
and result from the attenuation profile of the Topo-
gram.
The mAs value displayed in the user interface and in
the patient protocol is the mean (eff.) mAs value for
the scan range.
The mAs value recorded in the images is the local (eff.)
mAs value.

Siemens SOMATOM Specifications

General

Category	CT Scanner
Rotation Time	0.25 seconds
Tube Voltage	70-150 kV
Bore Size	78 cm
Max Table Load	250 kg
Gantry Aperture	78 cm
Table Weight Capacity	250 kg
X-ray Tube Voltage	70-150 kV
Scan Time per Rotation	0.25 seconds
Software	Syngo
Connectivity	DICOM
