NOTE*:
All the ranges enable to obtain 10% value higher than original except
750V. Besides, both Manual and Auto are available for setting every
range.
When inputting range is higher than 750V at 750V Level, “overload” will be
shown on the screen.
750V input protection exists in every range.
4. Set relative value (Optional operation).
Press 【Rel】 to open or close Relative math function. When it is opened,
the reading displayed is a value which comes from the result of actual
measurement value subtracts the relative value that has been set. The
default relative value is the measurement value when the function is
opened. (Please refer to “ Math Functions” in Chapter 2 to know about the
details.)
5. Read measurement result.
Select required measurement rate (reading rate) by pressing 【Speed】and
read the measurement result. If you press and then press
and to get the frequency value measured from input AC signal.

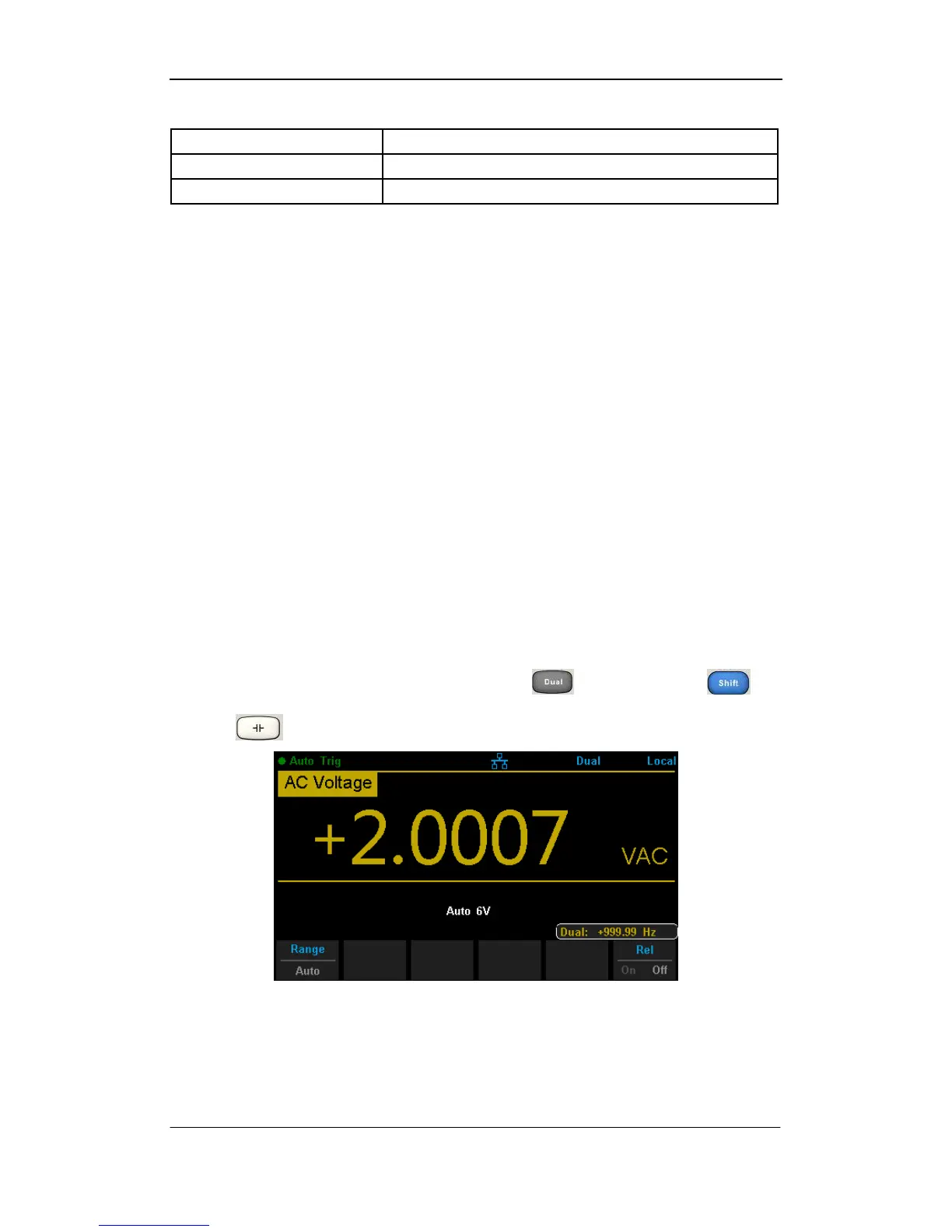

Diagram 2- 10 Dual-display
6. View history data.
There are four types of way to view historical data: “Number”, “Bar
Meter” ”Trend Chart” and “Histogram”.
