4. Turn on the beeper and start Limits Test. As shown in Diagram 3-11. The
measured result is between the Low and High limits, so the test status is
“Pass”.
5. If changing the high limit value to 2V, the measured result is not between
the Low and High limits. So the instrument beep once, and the main
display is red. The test status is “Fail” and High Failures is shown. As the
following diagram shows.

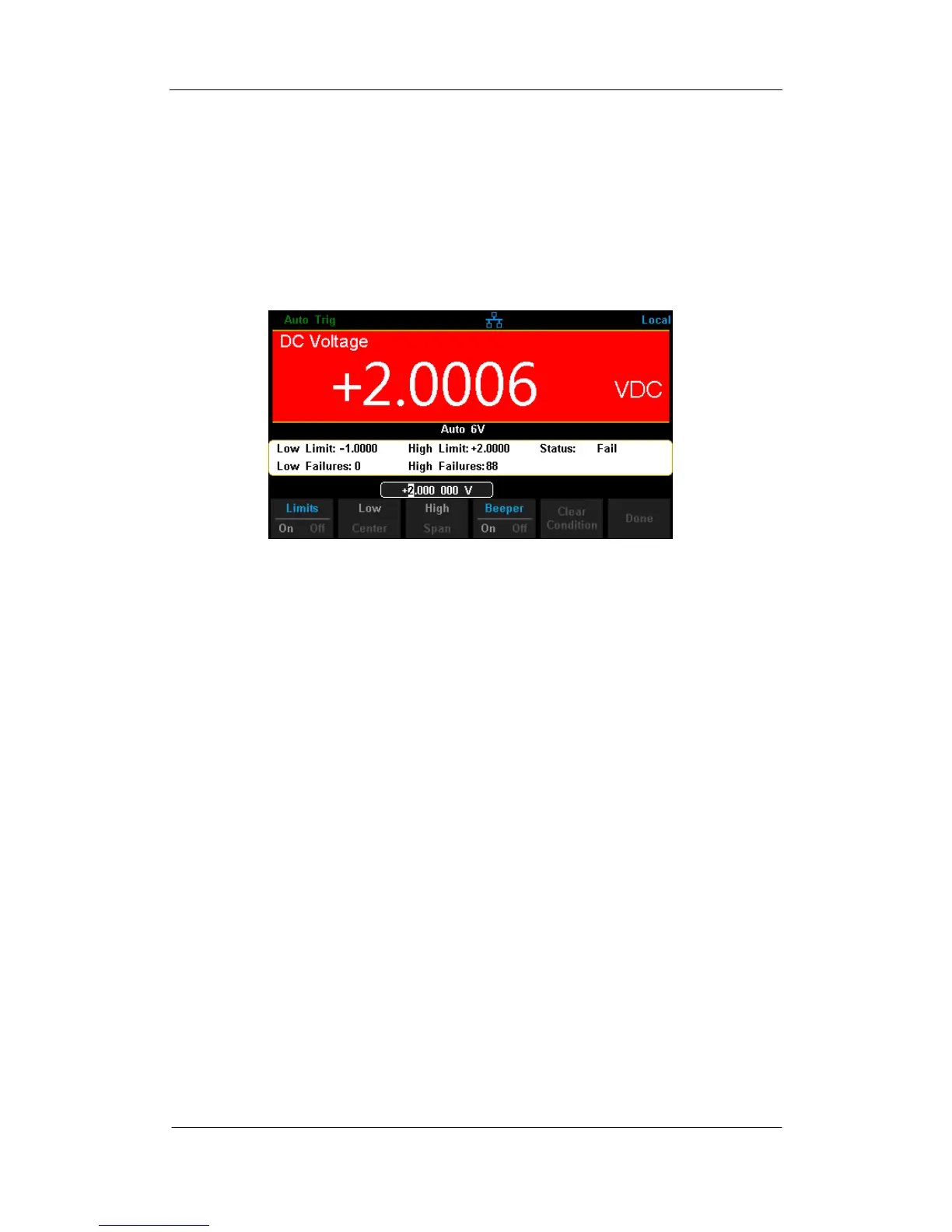

Diagram 3- 10 Limits Test Result
