Sigma Digital SLR Camera SD14 User Manual

12
1. AF AUXILIARY LIGHT
2. DUST PROTECTOR
3. LENS MOUNT
4. LENS LOCK BUTTON
5. BATTERY COMPARTMENT COVER
6. BATTERY COMPARTMENT COVER
LATCH
7. TRIPOD SOCKET
8.
FLASH EXPOSURE COMPERTMENT
BUTTON
9. REMOTE CONTROL SENSOR
10. PC SYNCHRO TERMINAL
11.
DEPTH-OF-FIELD PREVIEW BUTTON
12. CONNECTOR COVER
13. RELEASE SOCKET
14. FOCAL PLANE MARK
15. HOT SHOE
16. DIOPTER ADJUSTER
17. D-DIAL（DRIVE DIAL）
18. CAMERA STRAP EYELET
19.
(FUNCTION) BUTTON
20. EYEPIECE CUP
21. VIEWFINDER EYEPIECE
22. MODE DIAL
23. TOP LCD ILLUMINATION BUTTON
24. C-DIAL（COMMAND DIAL）
25. SHUTTER BUTTON
26. TOP LCD PANEL
27. CF CARD COVER
28.
AF POINT SELECTOR BUTTON
29.
EXPOSURE / APERTURE
COMPENSATION BUTTON
30. AE LOCK BUTTON
31.
(MAIN MENU) BUTTON
32.
(VIEW) BUTTON
33.
(INFORMATION) BUTTON
34.
(MODIFY MENU) BUTTON
35.
(DELETE) BUTTON

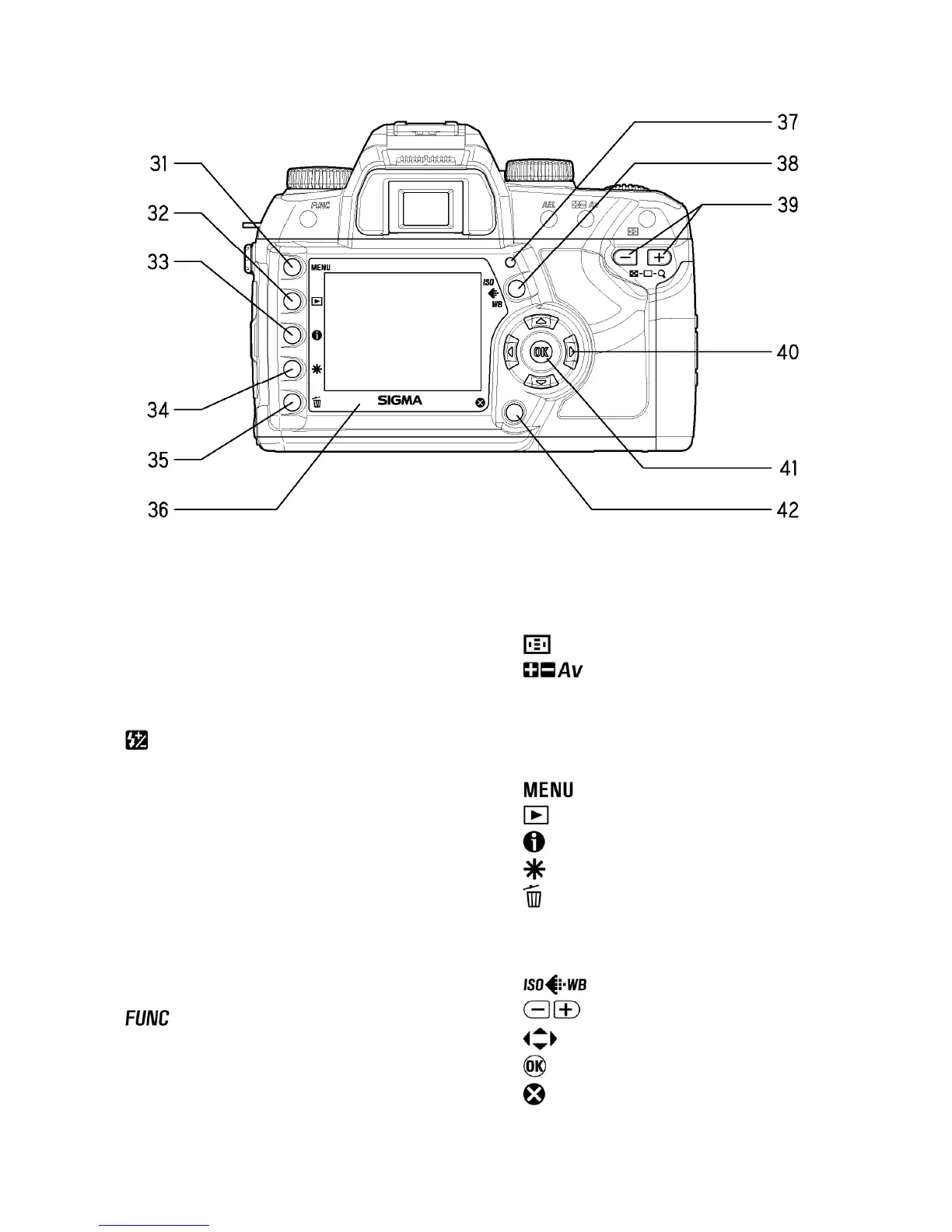

36. COLOR LCD MONITOR
37. CF CARD BUSY LIGHT
38.
QUICK SET BUTTON
39.
CONTROLLER
40.
4-WAY CONTROLLER
41.
(OK) BUTTON
42.
(CANCEL) BUTTON

Sigma Digital SLR Camera SD14 Specifications

General

Camera Type	Interchangeable Lens SLR Type Digital Camera
Image Sensor Size	13.8 x 20.7mm
Lenses Used	Sigma SA Mount Lenses
Picture Angle	Equivalent to 1.7x the focal length of a lens when used on a 35mm SLR camera.
Lens Mount	SA mount
Imaging Element Type	FOVEON® X3™ (CMOS)
Color Photo Detectors	14.06 Million (2652 Columns x 1768 Rows x 3 Layers)
Image Recording Format	Lossless compression RAW Data (12bit), JEPG
White Balance	8 Type (Auto, Sunlight, Shade, Overcast, Incandescent, Fluorescent, Flash, Custom white balance)
Viewfinder Type	Pentaprism SLR Viewfinder
Viewfinder Frame Coverage	98％ horizontal, 98％ vertical
Viewfinder Magnification	0.9x (50mm F1.4 at infinity)
Eyepoint	18mm
Diopter Adjustment Range	-3dpt to +1.5dpt
Auto Focus Type	TTL phase difference detection system
AF Operating Range	EV 0 to 18（ISO100）
Focus Mode	Single AF, Continuous AF (AF Predict function), MF
Metering Systems	8-segment Evaluative Metering, Center Metering, Center-Weighted Average Metering
Metering Range	EV 1 to 20（with 50mm F1.4 at ISO100）
Exposure Modes	(P) Program AE、(A) Aperture Priority AE、 (S) Shutter Speed Priority AE、(M) Manual
ISO Sensivity	ISO 100, 200, 400, 800, (1600)
Exposure Compensation	±3EV（in 1/3steps）
AE Lock	Push button type
Auto Bracketing	±3EV （ in 1/3steps, Appropriate Exposure – Under Exposure – Over Exposure）
Shutter Type	Vertical-travel metal focal plane shutter, electronically controlled through entire speed range
Shutter Speeds	1/4000sec to 30sec, Bulb up to 30sec Flash Synchronization at 1/180sec.
Storage Media	CompactFlash™ (CF) (TypeⅠ/Ⅱ), HITACHI MicroDrive™
Aspect Ratio	3：2
Resolution	Super Hi(JPEG) : 4608 x 3072, HI：2640 x 1760 MED：1776 x 1184, LOW：1296 x 864
Interfaces	USB 2.0, Video Out (NTSC／PAL)
