57
TIP
• When a custom white balance setting is successfully captured, "Custom"
will automatically become the selected item in the White Balance menu.
• It is recommended that an automatic exposure mode such as P , A , or S
be used when capturing a custom white balance setting to ensure proper
exposure.
• It may be necessary to set the lens to manual focus (P.50) when capturing a
custom white balance setting since auto focus may not work properly when
photographing low contrast subjects.

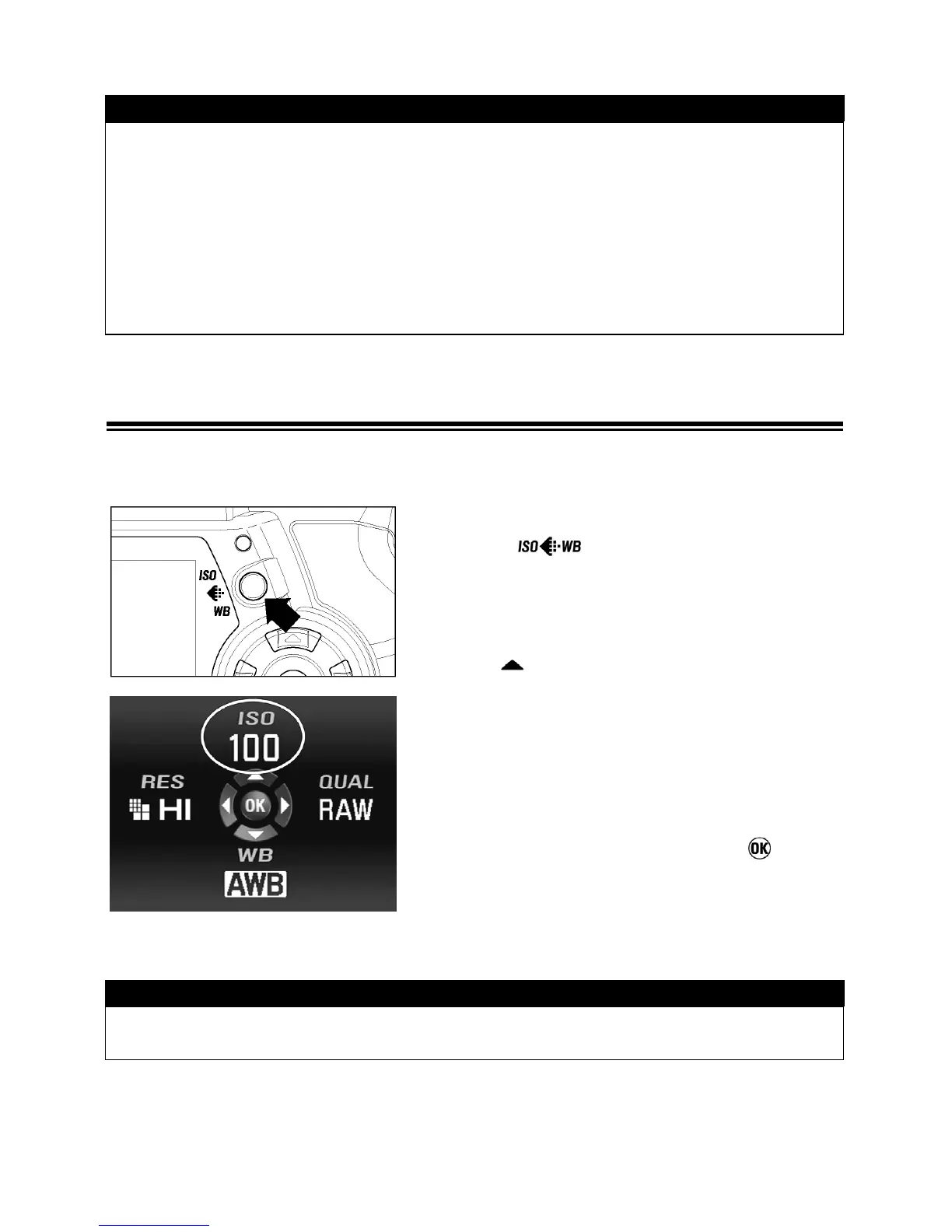

SETTING THE SENSITIVITY （ ISO EQUIVALENCY ）
The photosensitivity of digital cameras is described in terms of “ISO equivalent”
like silver-halide film cameras. (ISO sensitivity P. 11 3)
1
Press the button on the back of the
camera to open the Image Setting Menu.
2
Use the on the 4-way controller to select
the desired ISO sensitivity value.
(The ISO value can be changed 100 → 200 →
400 → 800 by pressing – button. The ISO
value turns yellow, while selecting ISO
sensitivity.)
3
Press the shutter button halfway or button
to apply the setting. Then you can take the
picture.
NOTE
• If extended mode is selected you can use ISO up to 1600（See P.71）

Sigma Digital SLR Camera SD14 Specifications

General

Camera Type	Interchangeable Lens SLR Type Digital Camera
Image Sensor Size	13.8 x 20.7mm
Lenses Used	Sigma SA Mount Lenses
Picture Angle	Equivalent to 1.7x the focal length of a lens when used on a 35mm SLR camera.
Lens Mount	SA mount
Imaging Element Type	FOVEON® X3™ (CMOS)
Color Photo Detectors	14.06 Million (2652 Columns x 1768 Rows x 3 Layers)
Image Recording Format	Lossless compression RAW Data (12bit), JEPG
White Balance	8 Type (Auto, Sunlight, Shade, Overcast, Incandescent, Fluorescent, Flash, Custom white balance)
Viewfinder Type	Pentaprism SLR Viewfinder
Viewfinder Frame Coverage	98％ horizontal, 98％ vertical
Viewfinder Magnification	0.9x (50mm F1.4 at infinity)
Eyepoint	18mm
Diopter Adjustment Range	-3dpt to +1.5dpt
Auto Focus Type	TTL phase difference detection system
AF Operating Range	EV 0 to 18（ISO100）
Focus Mode	Single AF, Continuous AF (AF Predict function), MF
Metering Systems	8-segment Evaluative Metering, Center Metering, Center-Weighted Average Metering
Metering Range	EV 1 to 20（with 50mm F1.4 at ISO100）
Exposure Modes	(P) Program AE、(A) Aperture Priority AE、 (S) Shutter Speed Priority AE、(M) Manual
ISO Sensivity	ISO 100, 200, 400, 800, (1600)
Exposure Compensation	±3EV（in 1/3steps）
AE Lock	Push button type
Auto Bracketing	±3EV （ in 1/3steps, Appropriate Exposure – Under Exposure – Over Exposure）
Shutter Type	Vertical-travel metal focal plane shutter, electronically controlled through entire speed range
Shutter Speeds	1/4000sec to 30sec, Bulb up to 30sec Flash Synchronization at 1/180sec.
Storage Media	CompactFlash™ (CF) (TypeⅠ/Ⅱ), HITACHI MicroDrive™
Aspect Ratio	3：2
Resolution	Super Hi(JPEG) : 4608 x 3072, HI：2640 x 1760 MED：1776 x 1184, LOW：1296 x 864
Interfaces	USB 2.0, Video Out (NTSC／PAL)
