Document: LT0400 4100U-S1 Programming Guide
Adding Zone Displays
Issue 1.4 15 December 2010 Page 7-7
Note: the import process message box may display errors if the hardware configuration
does not match the number of zones. E.g., in the case where the hardware
configuration modification (see 7.3) included only 48 zones and custom control
equations referring to zones 49-64 use undefined points.
Delete any unnecessary equations for zones that are not present, as described in
Section 4.3.

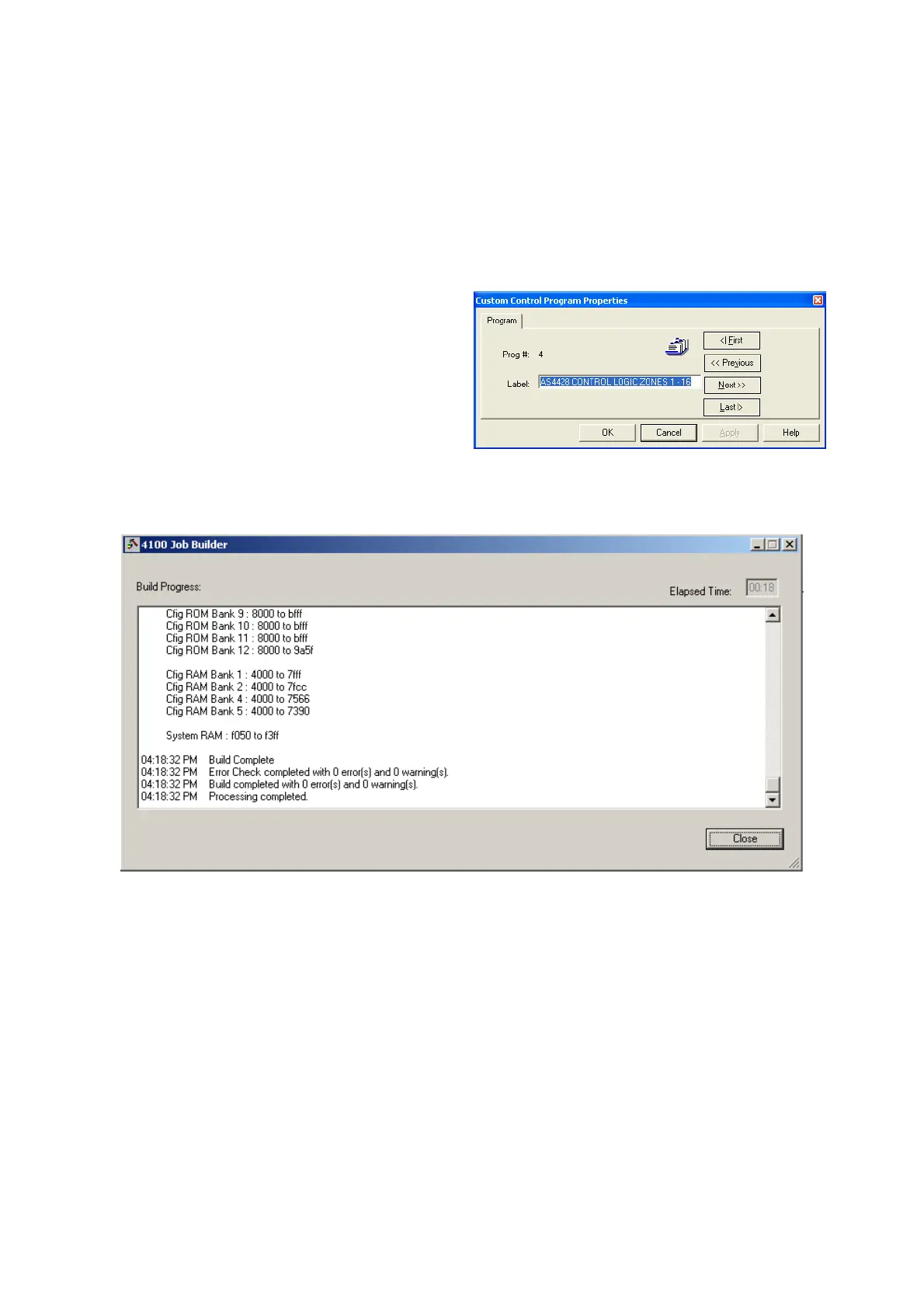

Rename program 4 to reflect the modification.
This is done by right click and selecting
„Properties…‟ and editing the „Label:‟ text box
to have the correct zone range.
Finally do a „Build‟ to the new configuration which should result with no errors.
