4100U-S1 Programming Guide Document: LT0400
AS1668 Fan Controls
Page 10-8 15 December 2010 Issue 1.4
10.4.3 Point Editing

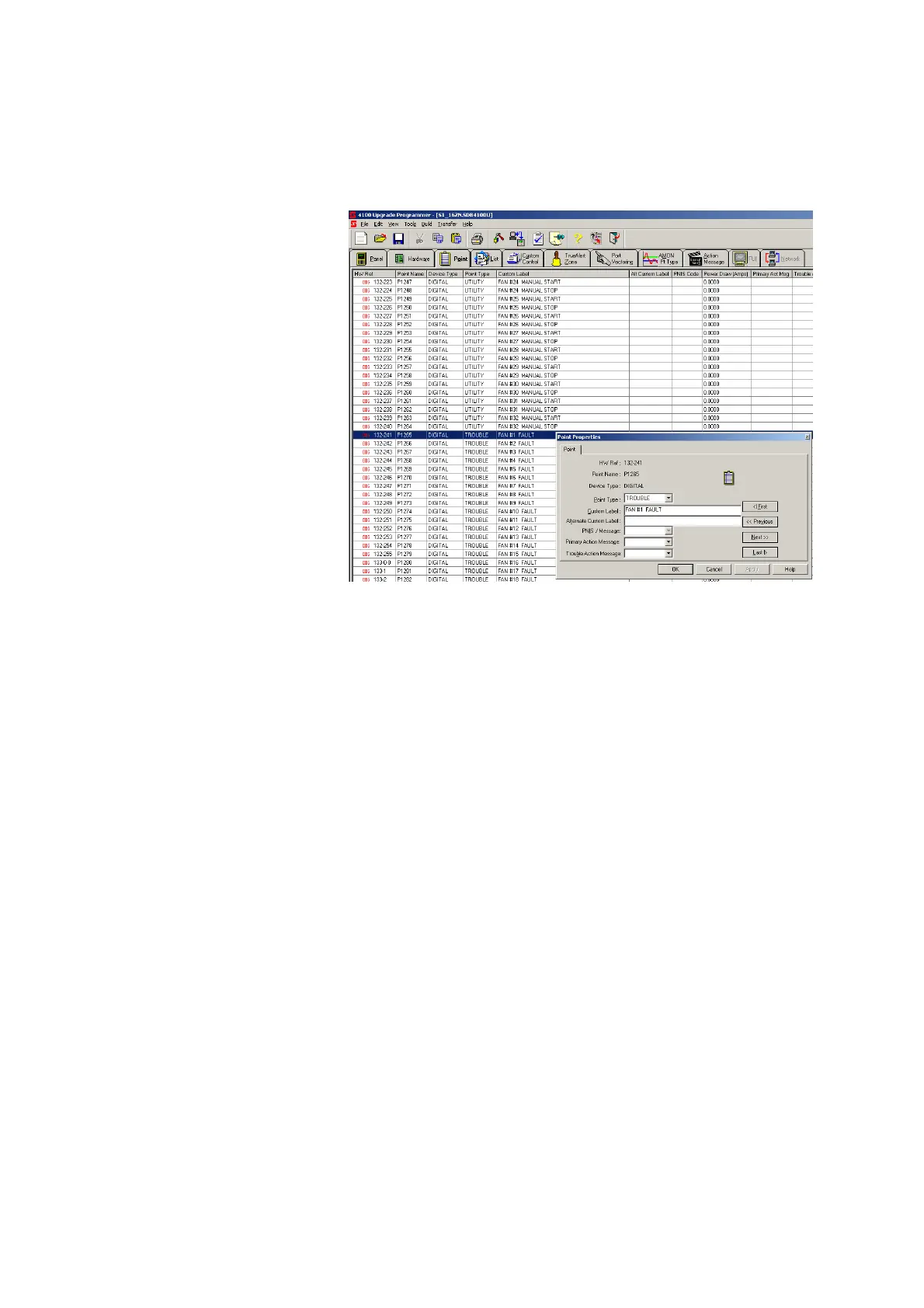

Click the Point tab and scroll to point P1265 which is coupled to the Fault LED of the 1
st
fan.
Configure the points as described hereafter for the 1
st
fan:
Click on the line and select
the Point Type TROUBLE.
In the Custom Label text
box enter a related
meaningful text e.g. FAN #1
FAULT.
Continue editing the points for the remainder of the configured fans in the same way.
