Document: LT0400 4100U-S1 Programming Guide
Adding Expansion Modules
Issue 1.4 15 December 2010 Page 8-9

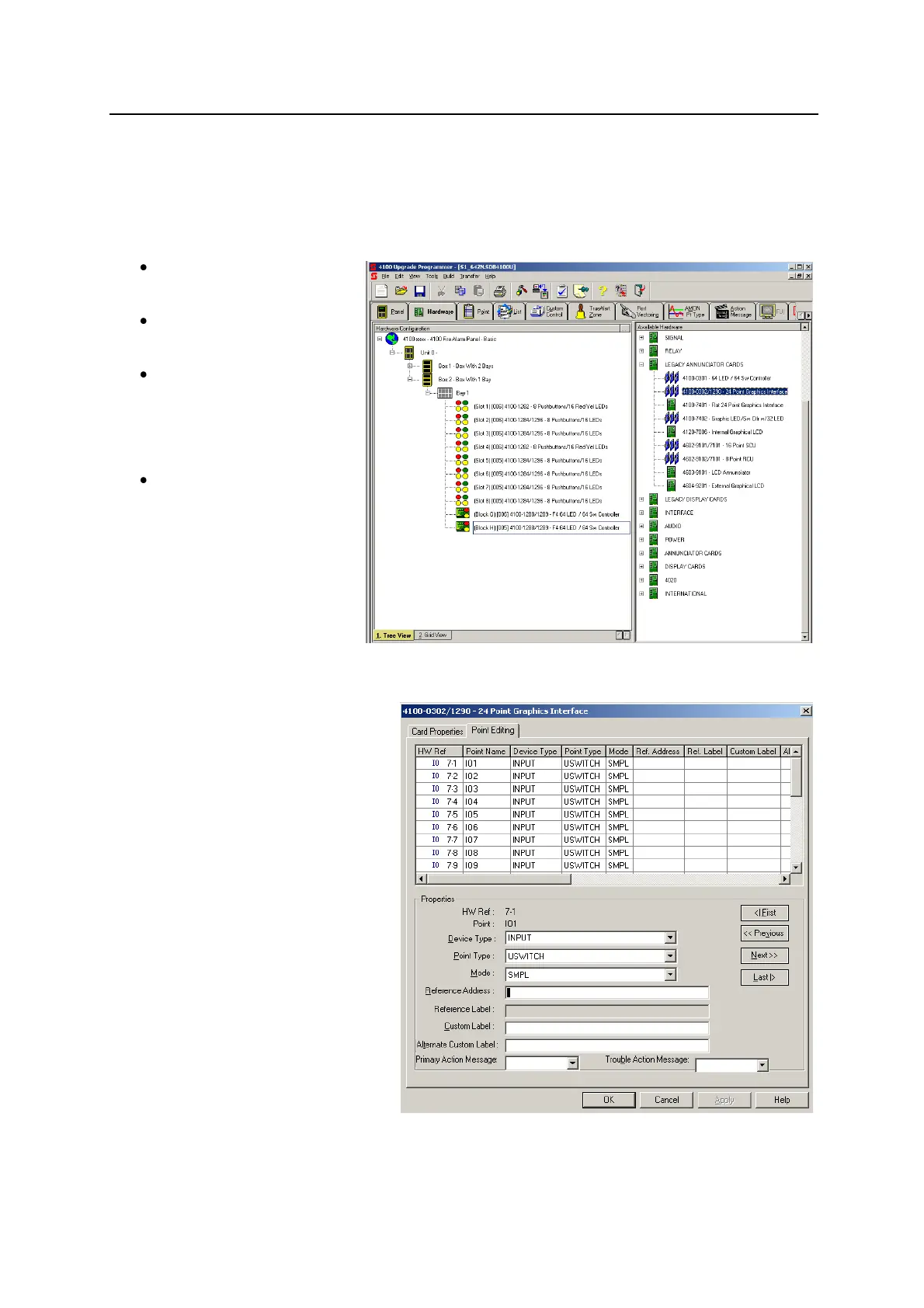

8.6 Adding 4100-0302/1290 24 Point Graphic Interface.
The 4100-0302 24 Point Graphic Interface provides 24 points that can be configured as
inputs or outputs, with no restrictions on point‟s allocation as input or output.
To add the 4100--0302 24 Point Graphic Interface to the panel:
Select the HARDWARE
Tab.
Expand the Unit 0, „Box 1‟
and „Bay 2‟.
Click on the “+” sign beside
the LEGACY
ANNUNCIATOR CARDS
option on the Available
Hardware window.
Drag and drop the 4100-
0302/1290 24 Point
Graphic Interface Icon
over to the Bay 2 icon.
The card will be added to the
panel configuration.
Double click on the card and in the
Properties Tab, select the card‟s
address and enter in the Card Custom Label: text box, a descriptive label.
Click the Point Editing tab and
add/edit the points‟ device types, point
types and Custom Labels. Record the
point addresses, as they are used
within user defined Custom Control
equations.
