Document: LT0400 4100U-S1 Programming Guide
Building and Downloading the Configuration
Issue 1.4 15 December 2010 Page 11-3

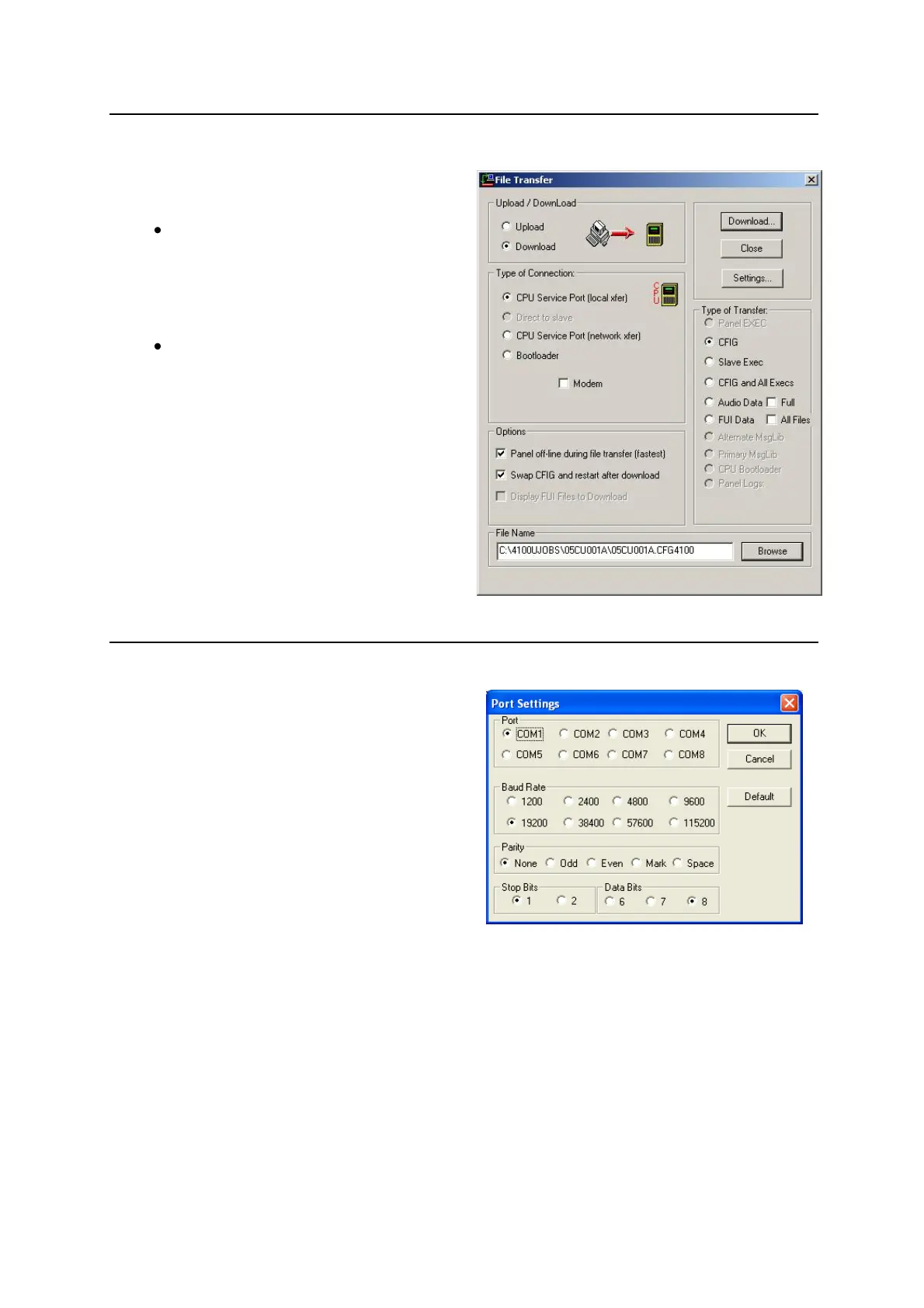

11.2 Starting the Transfer Utility
The 4100U File Transfer utility can be started
from within the 4100U Programmer or from
the Windows Start menu:
From within the 4100U Programmer:
If the programmer is already running,
click on the Transfer menu, located
along the menu bar at the top of the
programmer window. When the
options appear, click on Transfer.
From the Windows Start Menu: Click
the Start button. Move the pointer to
the Programs option. When the list of
choices appears, move the pointer to
the Simplex option and click on the
option containing the appropriate
programmer (for example, 4100U Ver
11.01.01. A list of options appears.
Click on File Transfer.
In both cases, the File Transfer utility is
launched.
11.3 Serial Communication Parameter Settings
Clicking the Settings… button allows you to
set the serial port, baud rate, parity, and stop
bits used by the PC. In most cases (see note
below), it is recommended that you use the
default settings for these parameters.
Note: If you connect the serial cable (733-794)
to a port other than COM1, make sure to open
the Settings dialog and change the default Port
(COM1) to the port being used.
