4100U-S1 Programming Guide Document: LT0400
Adding Expansion Modules
Page 8-10 15 December 2010 Issue 1.4
8.7 Adding Legacy Card – 4100-0113 RS-232/2120 Interface
Module
The 4100-0113 RS-232/2120 Interface Module provides two RS-232-C outputs (Port A and
Port B) that can be configured for remote printers, CRT, or as a Computer Port for
communications to a remote system (e.g. BMS or BAS Systems).

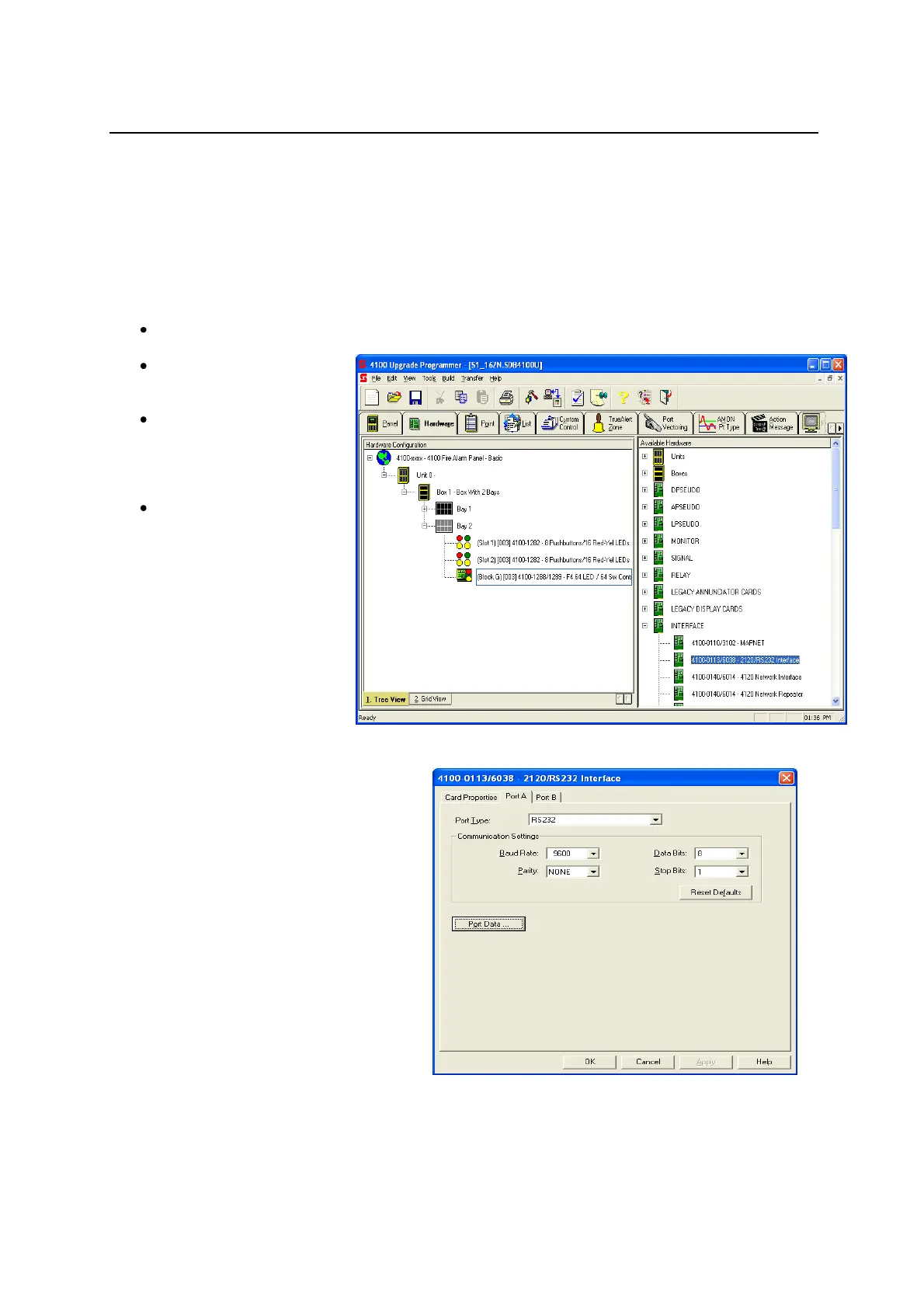

To add the 4100-0113 RS-232/2120 Interface Module to the panel:
Select the HARDWARE Tab.
Expand the Unit 0, „Box
1‟ and „Bay 2‟.
Click on the “+” sign
beside the INTERFACE
option on the Available
Hardware window.
Drag and drop the 4100-
0113 RS-232/2120
Interface Icon over to the
Bay 2 icon.
The card will be added to the
panel configuration.
Double click on the card and in
the Properties Tab adjust its
address to be greater than 4,
then enter in the Card Custom
Label: text box, a descriptive
label.
Set the Ports as in the following example for
RS232 connection to PC (used for
generating printed reports). Adjust the baud
rate, etc, if needed.
To Next Page
