4100U-S1 Programming Guide Document: LT0400
Custom Control
Page 9-4 15 December 2010 Issue 1.4
9.3 Creating a New Equation
9.3.1 Select User Program
The first step in defining a new custom control equation is to add the equation to either one
of the five User Programs -- Program 3 through Program 7. However, it is recommended
that Program 6 is used for general functions and Program 7 is used for AS1668 Fan
Controls. Follow these steps to do this.

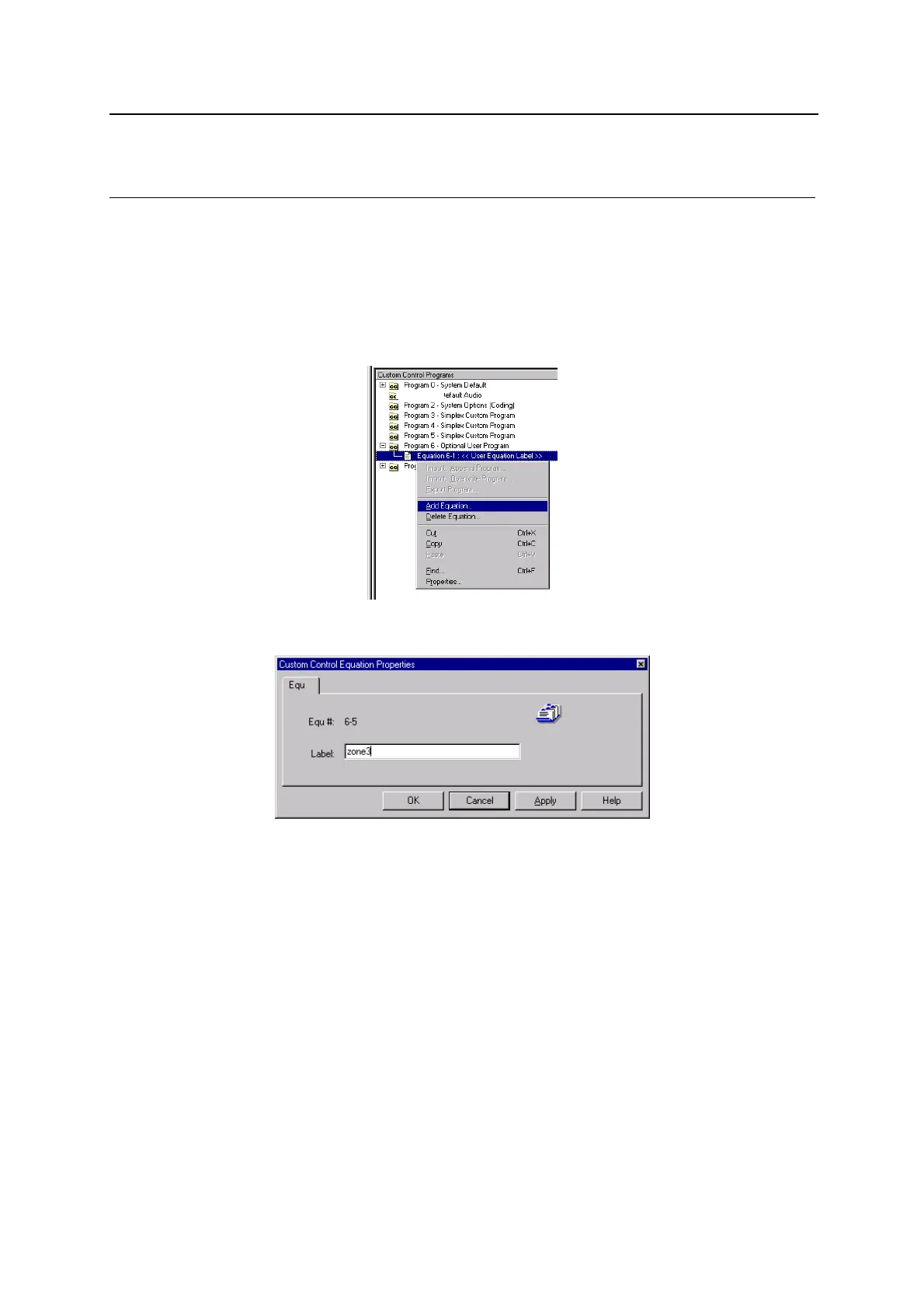

1. Right click on one of the user programs (Program 3 through Program 7), located at the
bottom of the program list, and select Add Equation… from the list of options.
2. The properties dialog shown below appears. Enter a name for the equation in the Label:
text box and click on OK.
The Equations section of the Custom Control window updates to include the [INPUTS],
[END INPUTS], etc entries.
