Document: LT0400 4100U-S1 Programming Guide
Building and Downloading the Configuration
Issue 1.4 15 December 2010 Page 11-5

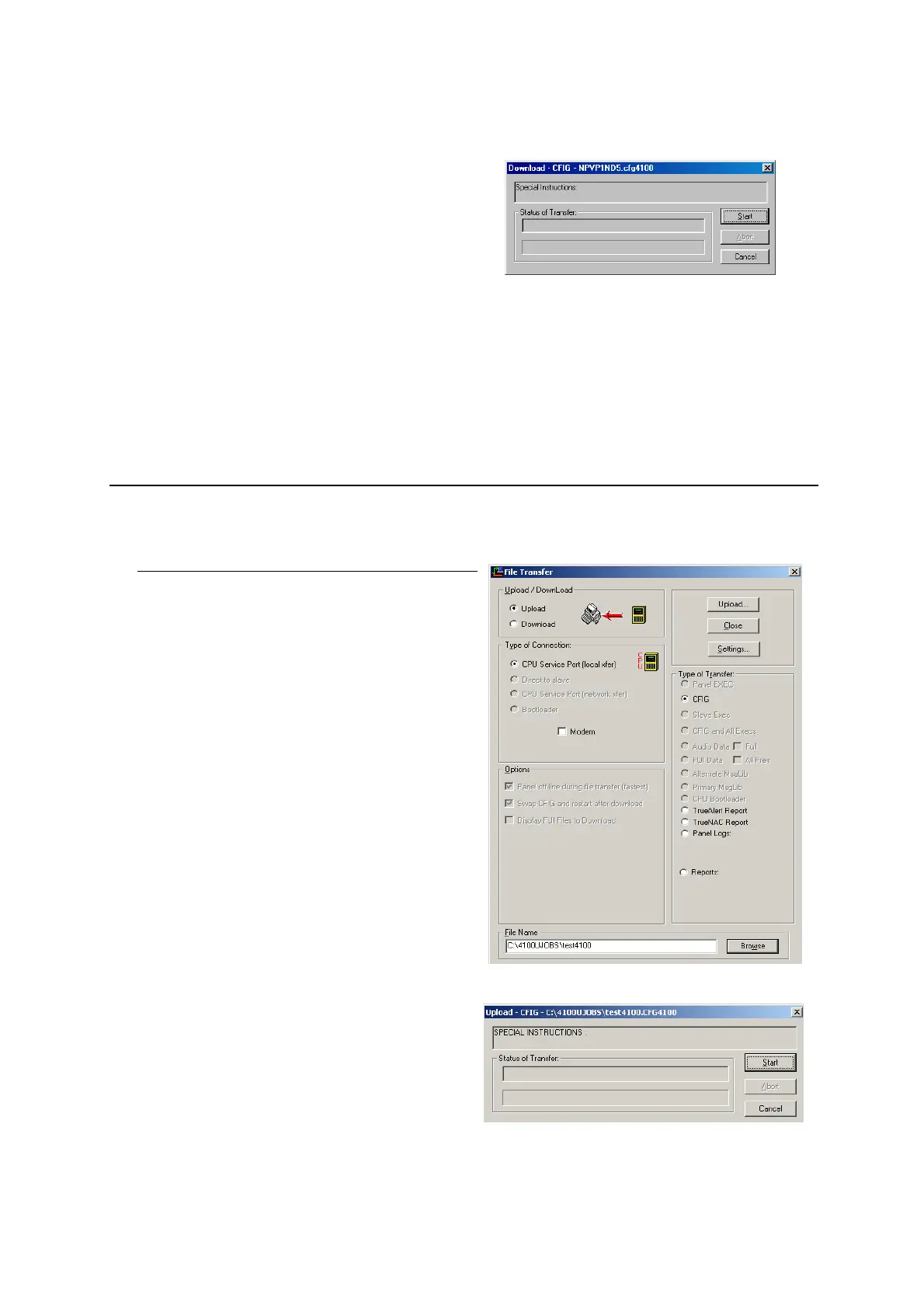

6. Click the Download… button. A dialog as follow appears:
7. Click the Start button to begin the download. The display on the front panel of the
4100U shows the progress of the download, and notifies when the download is
complete.
8. At the end of download the panel restarts automatically on the configuration.
9. The panel running the new configuration requires adjusting its date and time via the
panel display menu.
11.6 Uploading from the Panel
The 4100U File Transfer utility can be started from within the 4100U Programmer:
1. From within the 4100U Programmer,
click on the Transfer menu, located
along the menu bar at the top of the
programmer window. When the options
appear, click on Transfer. .
2. Set the Upload radio button.
3. Add a Filename in the dialog at the
bottom of the window.
4. Click on the Upload button – a dialog
box will appear – click on Start and the
Panel config will be uploaded into the
PC.
