4100U-S1 Programming Guide Document: LT0400
Adding Expansion Modules
Page 8-8 15 December 2010 Issue 1.4
8.5 Adding 4100-3003 8 Aux Relay Card.
The 4100-3003 8 Aux Relay Card provides eight Single Pole Changeover relays and 8
contact closure inputs (Feedback points).
To add the 4100-3003 8 Aux Relay Card to the panel:

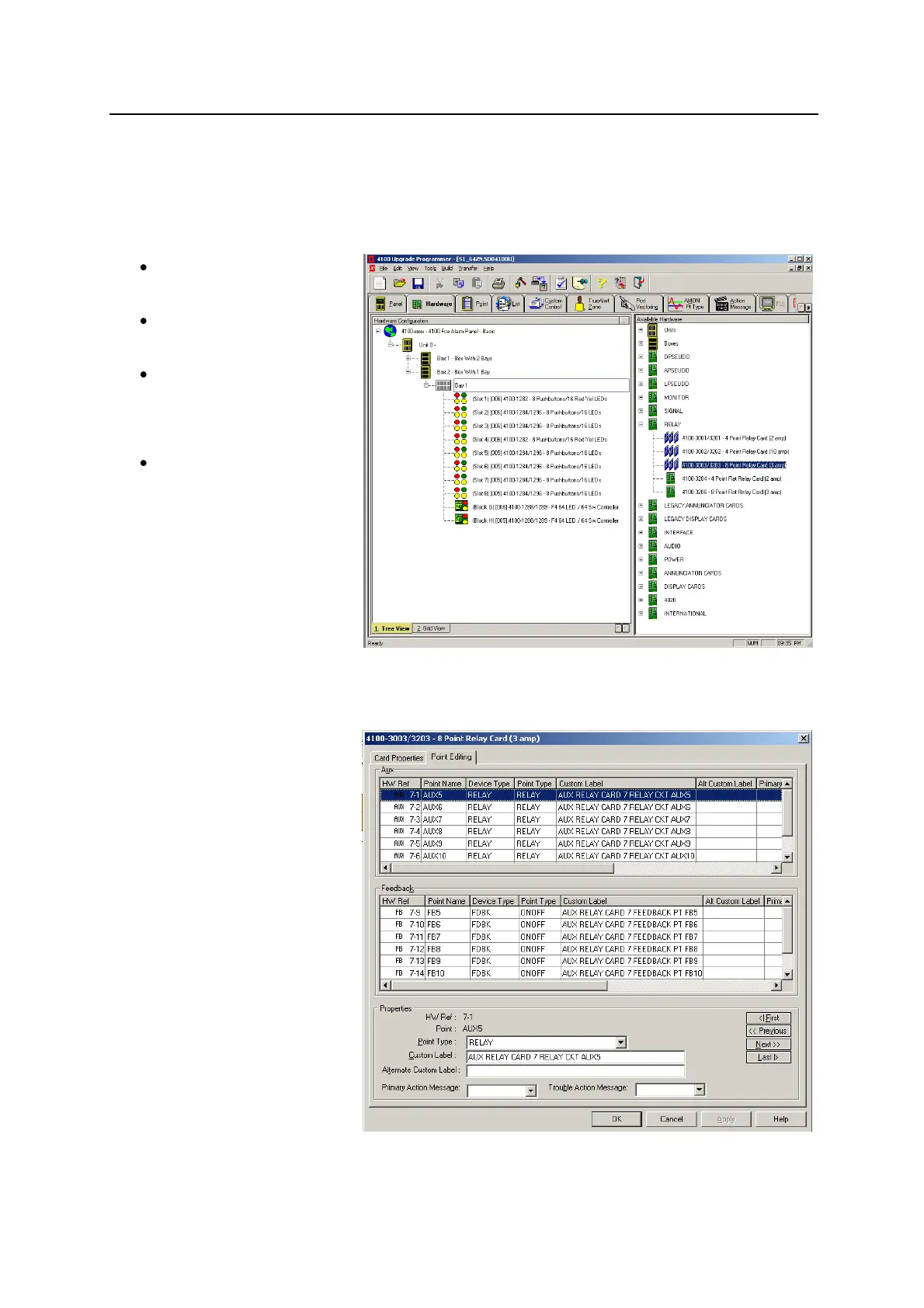

Select the HARDWARE
Tab.
Expand the Unit 0, „Box 1‟
and „Bay 2‟.
Click on the “+” sign beside
the RELAY option on the
Available Hardware
window.
Drag and drop the 4100-
3003/3203 8 Point Relay
Card Icon over to the Bay
2 icon.
The card will be added to the
panel configuration.
Double click on the card and in
the Properties Tab, select the
card‟s address and enter in the
Card Custom Label: text box, a
descriptive label.
Click the Point Editing tab and
add/edit the points‟ device types,
point types and names. Record
the point addresses, as they are
used within user defined Custom
Control equations
