4100U-S1 Programming Guide Document: LT0400
Custom Control
Page 9-6 15 December 2010 Issue 1.4
9.3.3 Add Output Statements
The third step in creating a new Custom Control equation is to add output statements to the
new equation. Repeat the steps in this section until all output statements in the equation
have been defined.
1. In the Equations box, position the cursor just to the right of [OUTPUTS]

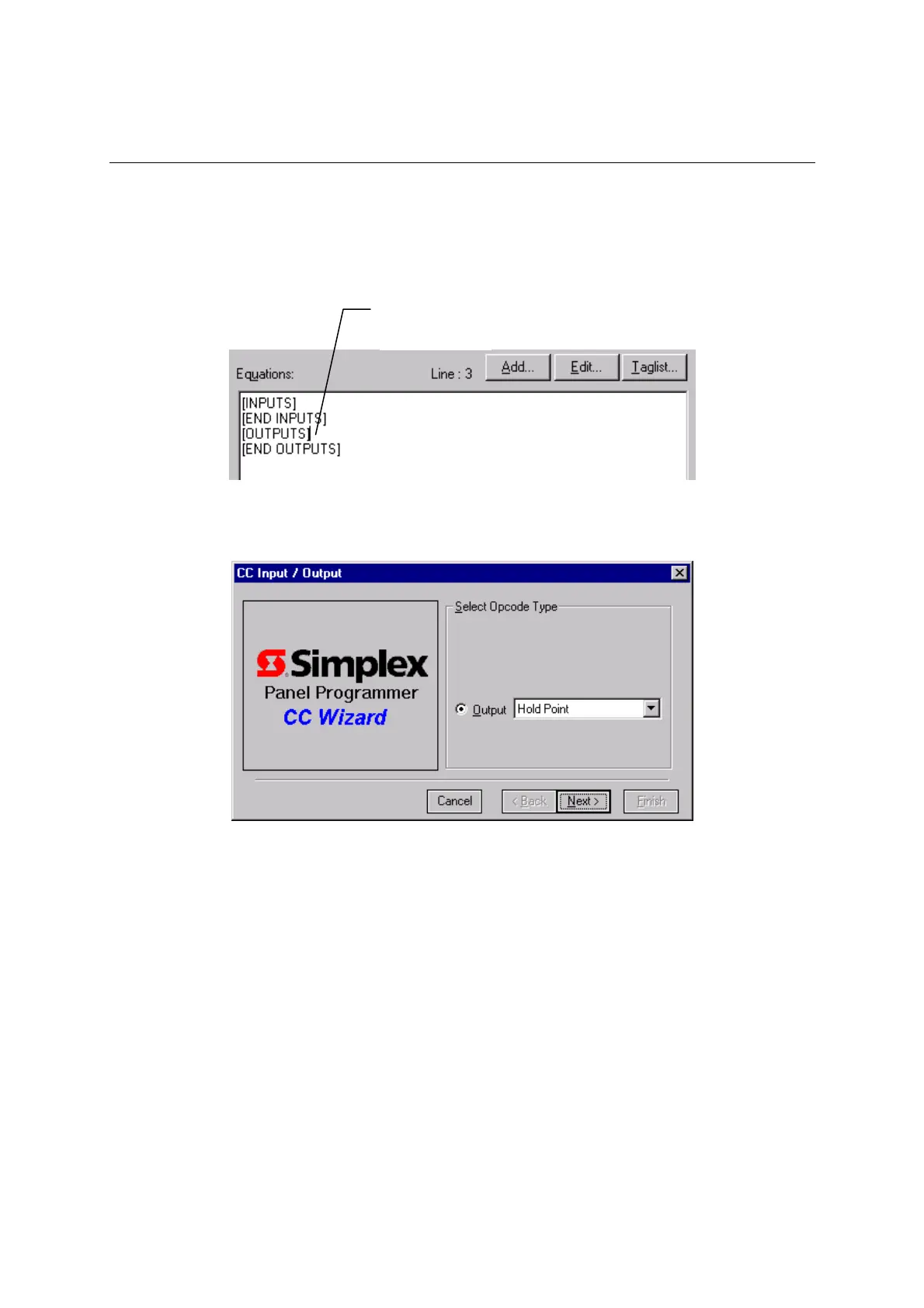

2. Click on the Add button. The dialog shown below appears.
3. Click on the drop down list box, select one of the output Opcodes, and click the Next
button.
4. The next dialogs displayed by the wizard depend on the Opcode you selected in Step 3.
5. The Finish button becomes available when all dialogs related to the output opcode have
appeared. Click it to finish defining the output statement.
