Document: LT0400 4100U-S1 Programming Guide
Adding Expansion Modules
Issue 1.4 15 December 2010 Page 8-5

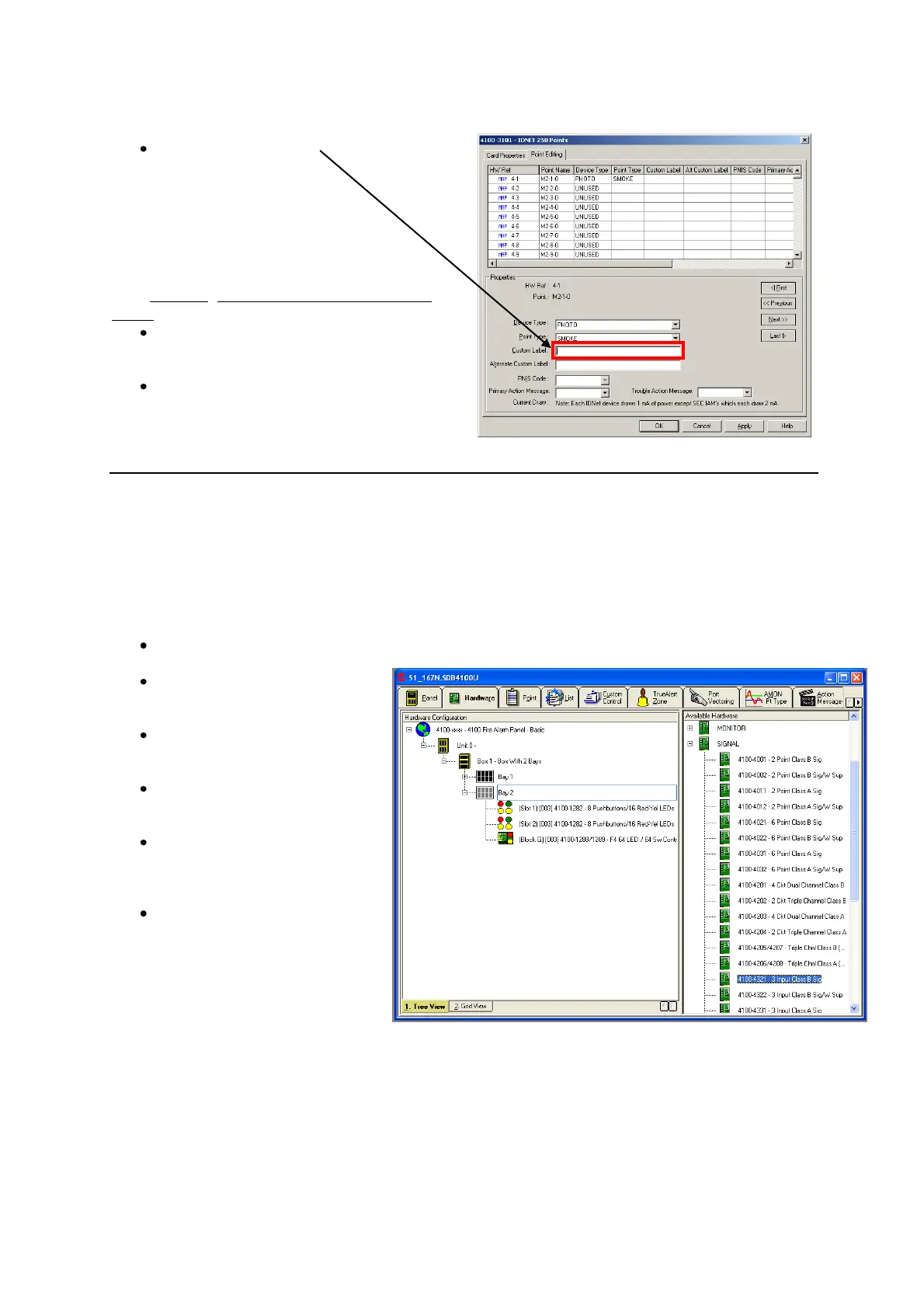

Enter a Custom Label into the Custom
Label text box.
The Custom Label is limited to
40 characters. It is recommended
that the first characters be the point address,
followed by the description of the point
location and then lastly the zone number,
e.g. M1-188 FOYER RECEPTION DESK
ZN01
To continue entering new devices click the
Apply or Next buttons
The devices can then be added to zones
as described in Section 5.2.
8.3 Adding 4100-4321 Legacy Signal Card
The 4100-4321K 6 Supervised Relay module provides 6 supervised output control (signal)
circuits. The 6 circuits have two power inputs: one power input for every three signal circuits.
Each of the signal circuits is supervised for ground faults, opens and line-to-line shorts.
The card is added as follows:
Select the HARDWARE Tab.
Click on the “+” sign beside
Unit 0.
Click on the “+” sign beside
Box 1.
Click on the “+” sign beside
Bay 2.
Click on the “+” sign beside
the SIGNAL option on the
Available Hardware window.
Drag and drop the 4100-4321-
3 Input Class B Sig Icon over
to the Bay 2 icon.
The card will be added to the panel
configuration.
