The contents of the Install Mode list can viewed with the VIEW option of the Install
Mode menu, as in Figure 8-8. See Figures 8-5 and 8-6 for the menu selections to reach
this menu. Viewing this menu does not require being logged in.

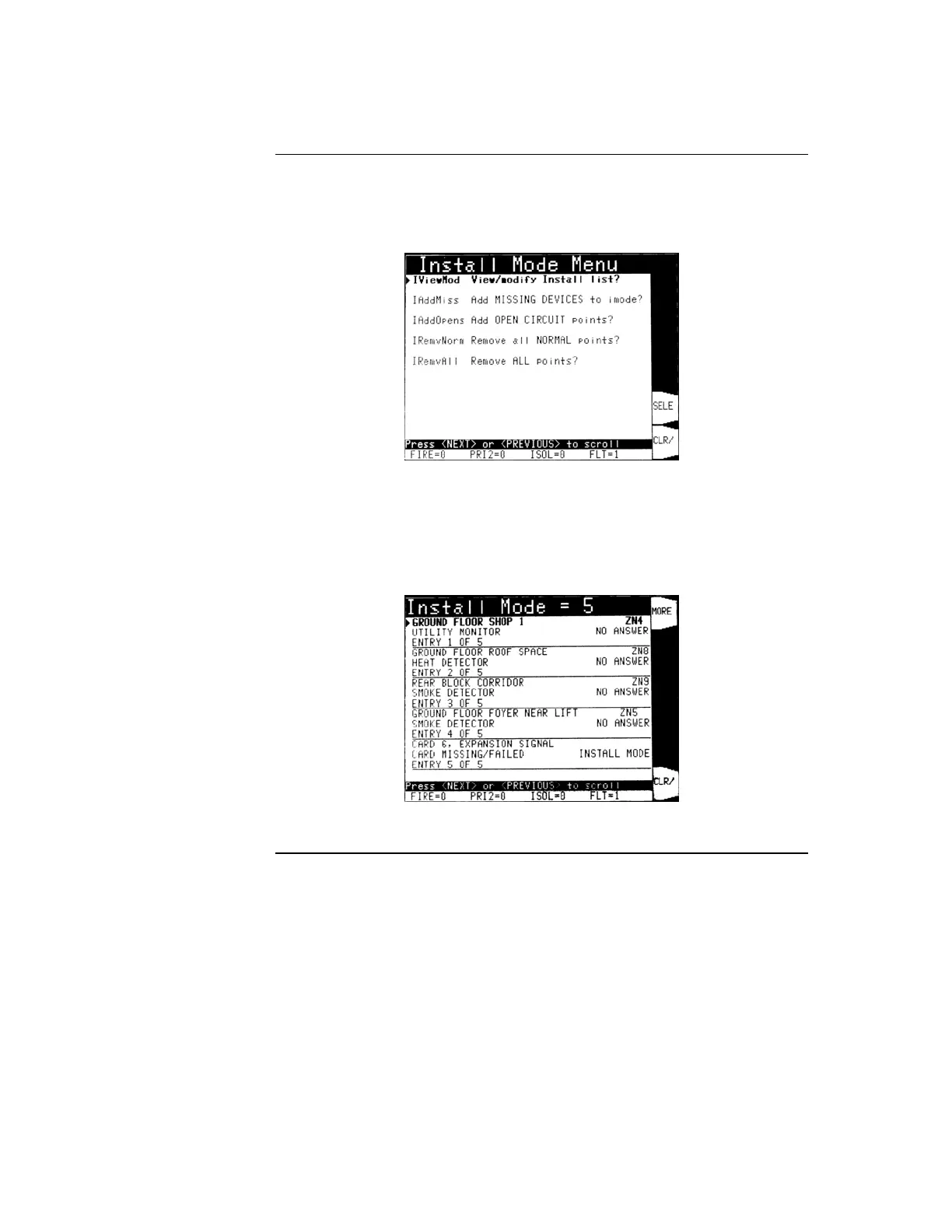

Figure 8-8. View Option on the Install Mode Menu Screen
The Install Mode display shows the device count, and a list of devices and modules, with
their current status, as in Figure 8.9. The <MORE> softkey will provide More Info for
the highlighted entry in the list.
Figure 8-9. Displaying Contents of Install Mode List
Viewing Devices in Install Mode
Viewing Contents of
Install Mode list

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
