Simplex 4100ES Installation & Maintenance

2-18
 As shown in the Figure 2.12 below, motherboards can be installed alongside
4”x 5” cards, if necessary.
No Boards
Allowed
in
This Slot
PDI
Expansion Power
Supply
(XPS)
I/O Wiring
I/O Wiring
I/O Wiring
4100 Option 4100 Option 4100 Option
Slot 1 Slot 2 Slot 3 Slot 4
Position
5
Position
6
Position
7 & 8
Block E Slots 7 + 8
Block F
This slot cannot contain a motherboard unless the pins
on P1 (or leftmost pin connector) are removed.
4" (102 mm) x 5" (127 mm)
Module
4" (102 mm) x 5" (127 mm)
Module
(Note. Australian SPS is 4 slots wide. XPS is not available in Australia.)

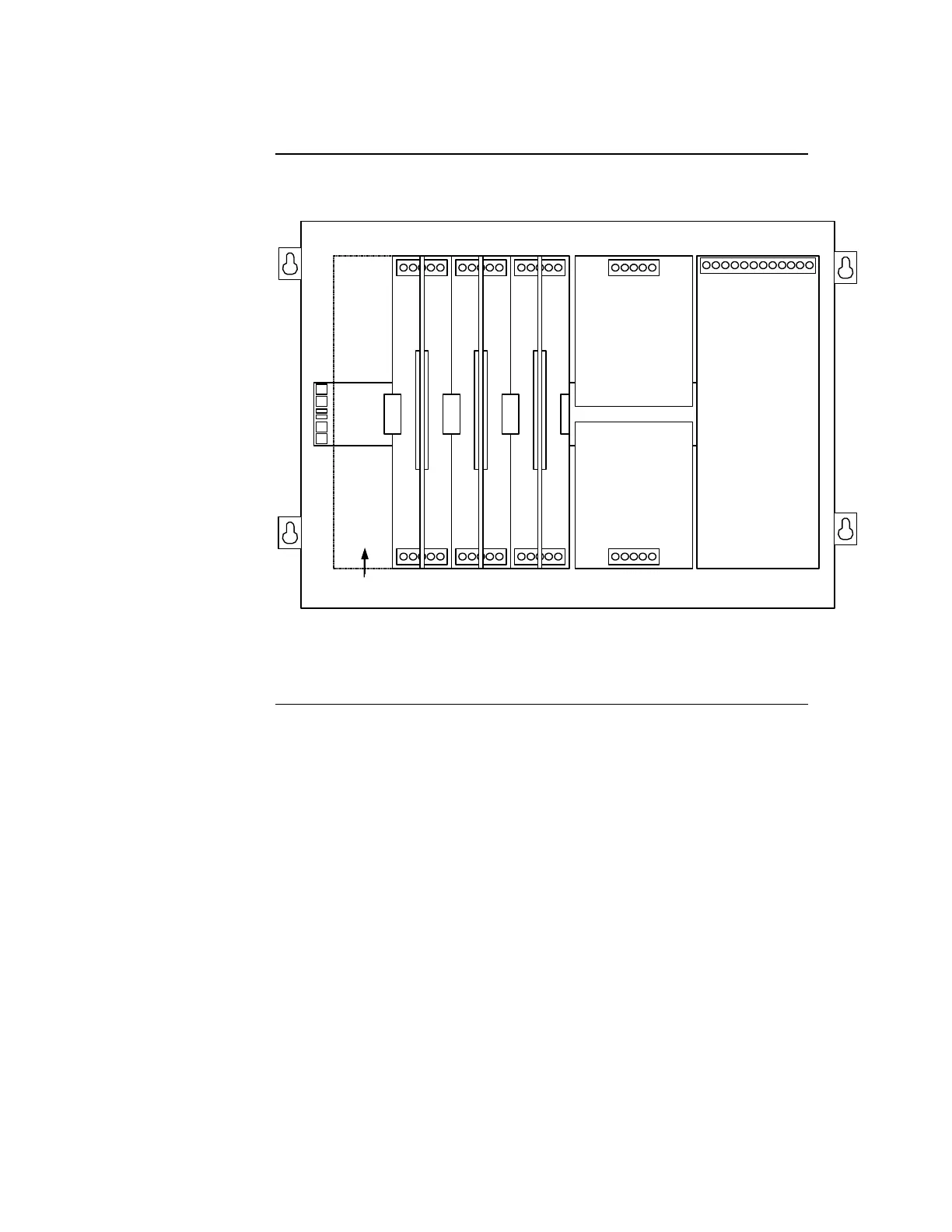

Figure 2-12. Mixed Module Placement
Continued on next page
Step 5. Installing Modules into Expansion Bays (4100ES), Continued
Placement
Guidelines
(continued)

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
