Simplex 4100ES Installation & Maintenance

2-19
The power distribution interface (PDI) is mounted to the back of each expansion cabinet.
The PDI contains slots for up to eight 4”x 5” slave cards. Since the PDI carries power and
data across the entire bay, it solves most interconnection issues, especially between
4”x 5” cards.
Use the following instructions and the Figure 2.13 below to mount 4”x 5” slave cards to
an expansion cabinet:
1. Screw two standoffs and washers to the appropriate holes in the back of the
cabinet. These holes must line up with the screw holes in the 4”x 5” card.
Plug the 4”x 5” card into the appropriate PDI connector. Seat the card firmly
onto the PDI when installing to ensure complete insertion of the power
connector into the PDI.
2. Secure the top of the card to the standoffs with two #6 torx screws and washers.

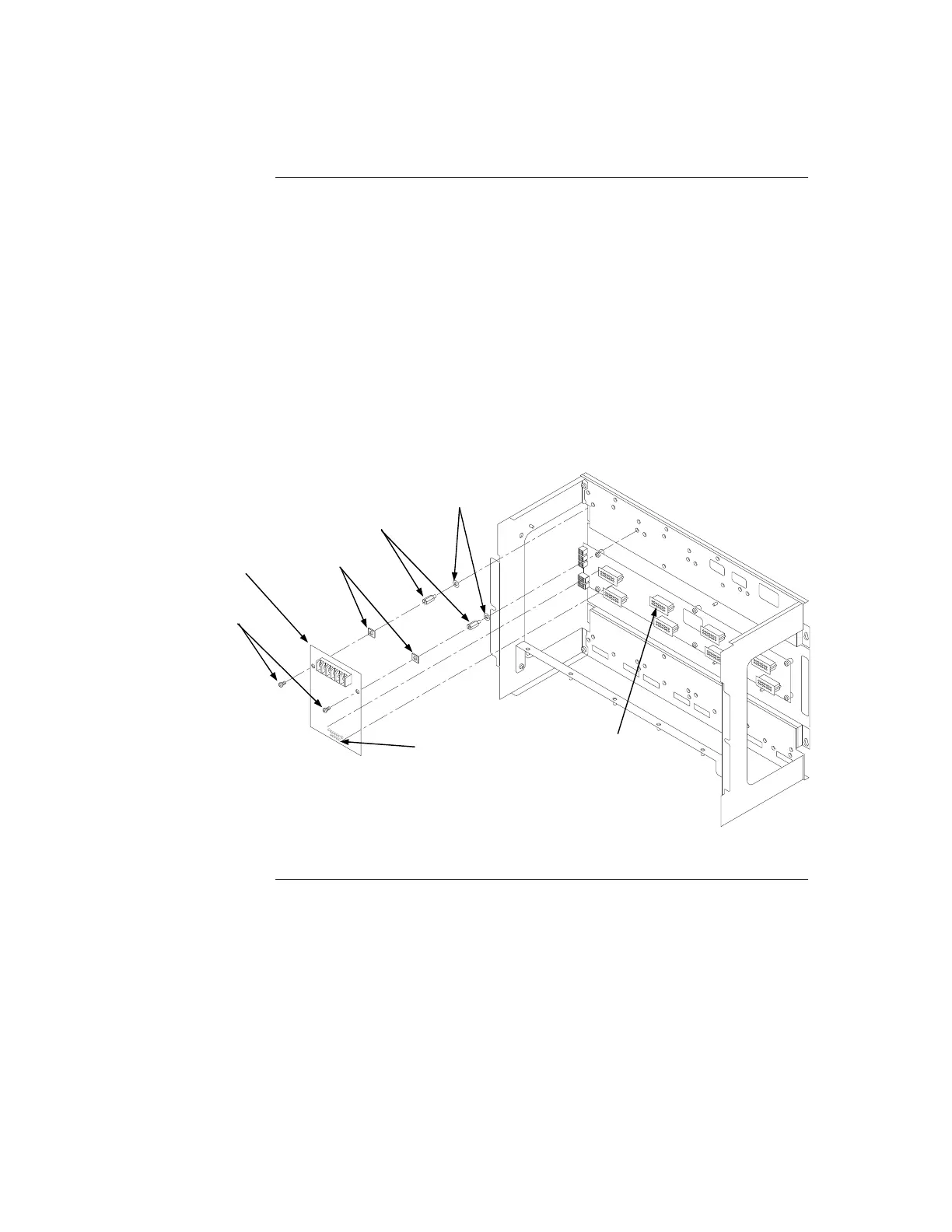

Figure 2-13. Slave Card/PDI Connection
Continued on next page
Step 5. Installing Modules into Expansion Bays (4100ES), Continued{xe
"mounting: modules to 4100U back boxes"}
Installing 4” X 5”
Cards
4”x 5” CARD
STANDOFFS
#6 SCREWS
WASHERS
PDI CONNECTOR
(reverse side)
PDI
SCREW
RETAINERS

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
