NOTE: The PTO belts are a matched set and must be
replaced as a set. If the belts are being removed for
inspection, make sure they are reinstalled in the their
original pulley groove and rotational orientation.
4. Install the PTO clutch assembly (C, Figure 28), fan
(B), and PTO belt set (A) to the engine (Refer to
Section 16, PTO CLUTCH SERVICE, if additional
information is required).
5. Connect the choke and throttle cables (A, Figure 29)
to the engine.
13 Engine Removal & Installation
Kawasaki - Engine Installation

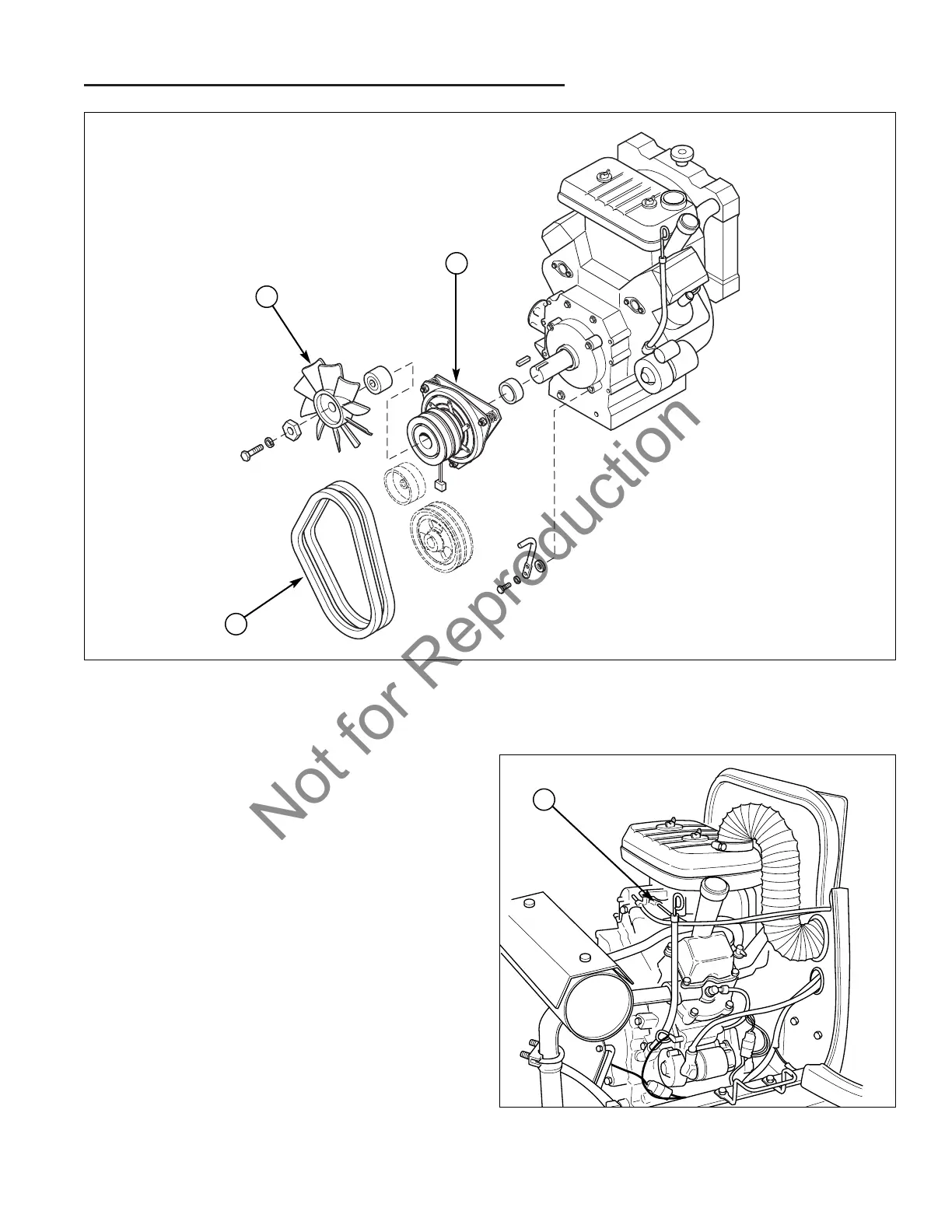

Figure 28. PTO Clutch Installation
A. PTO Belt Set C. PTO Clutch Assembly
B. Fan
A
C
B
Figure 29. Engine Cable Installation
A. Throttle and Choke Cables
A
