Simplicity LEGACY Series User Manual

13 Engine Removal & Installation
Kawasaki - Engine Installation
13 - 24
Kawasaki - Engine Installation
1. Connect a suitable lifting device to the lift rings on the
engine, and raise the engine. Move the engine above
the front of the tractor, and slowly lower into the
frame. As the engine is lowered, ensure that the drive
shaft front flange is positioned for proper reassembly.
2. Install and tighten the hardware (A, Figure 26) secur-
ing the engine to the frame.
3. Position the drive shaft front flange (B, Figure 27) on the
engine (C), and secure with the original hardware (A)

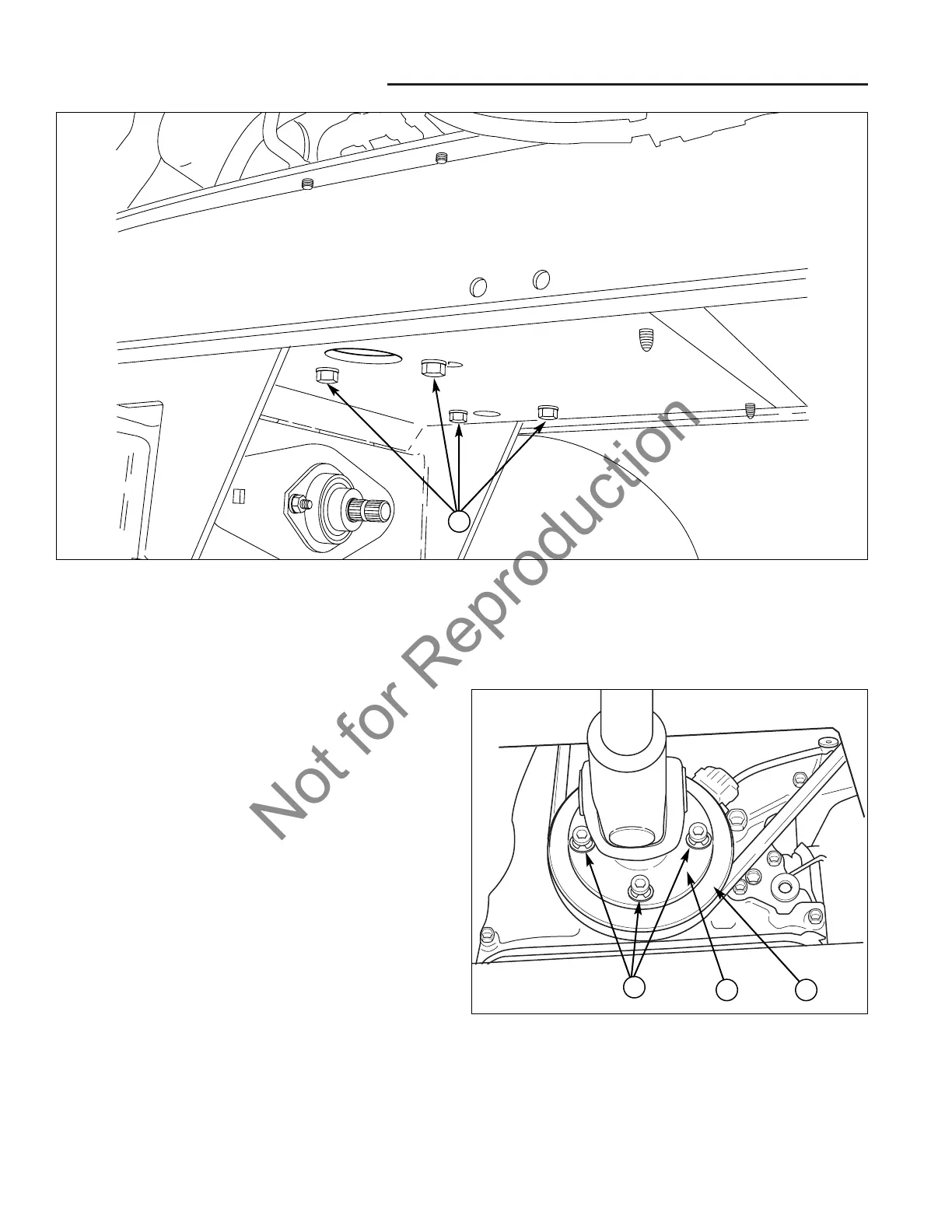

Figure 26. Engine Mounting Hardware
A. Hardware
A
Figure 27. Drive Shaft Installation
A. Mounting Hardware
B. Drive Shaft Front Flange
C. Engine Pulley
C
B
A
