17 - 3
Pedal Pad Replacement

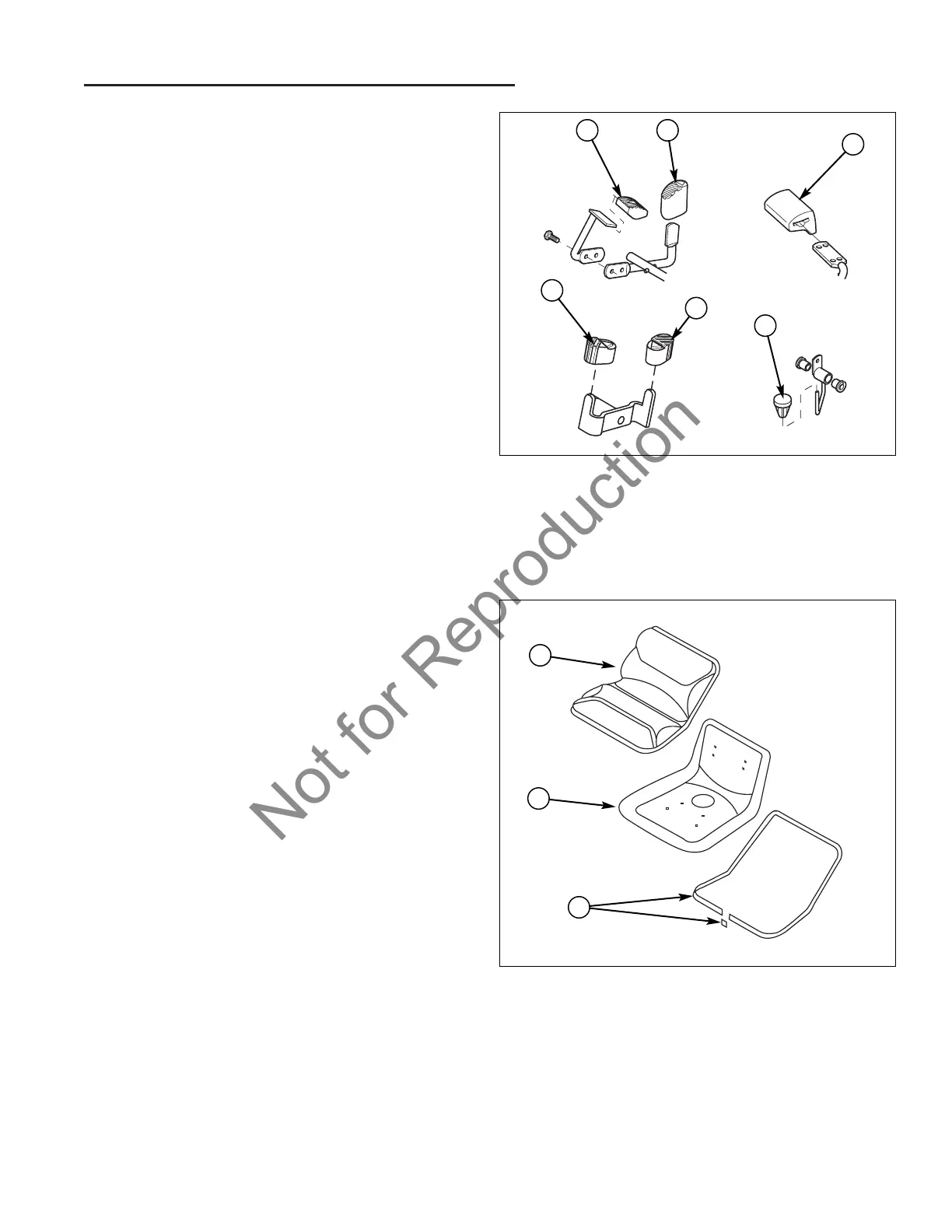

To remove the foot pedal pads (A through F, Figure 3),
twist the pads while pulling them off the pedals. To
install simply push the pad onto the pedal. If necessary,
lubricate with soapy water.
Figure 3. Foot Pedal Pads
A. Forward Pedal Pad D. Up Pedal Pad
B. Reverse Pedal Pad E. Down Pedal Pad
C. Brake Pedal Pad F. Differential Lock Pedal
17 Miscellaneous Component Service
Pedal Replacement
C
F
A B
E
D
Seat Cover Replacement
The seat cover and foam assembly (A, Figure 4) are held
on the seat pan (B) by plastic edging and a metal clip
(C). Once removed, the cover, foam, plastic edging, and
clip cannot be reinstalled. As a result, this seat is only
serviced as a complete assembly.
Figure 4. Seat Cover
A. Seat Cover and Foam Assembly
B. Seat Pan
C. Plastic Edging & Clip
A
B
C
