DIP SWITCH SETTINGS
20221537 / D 103

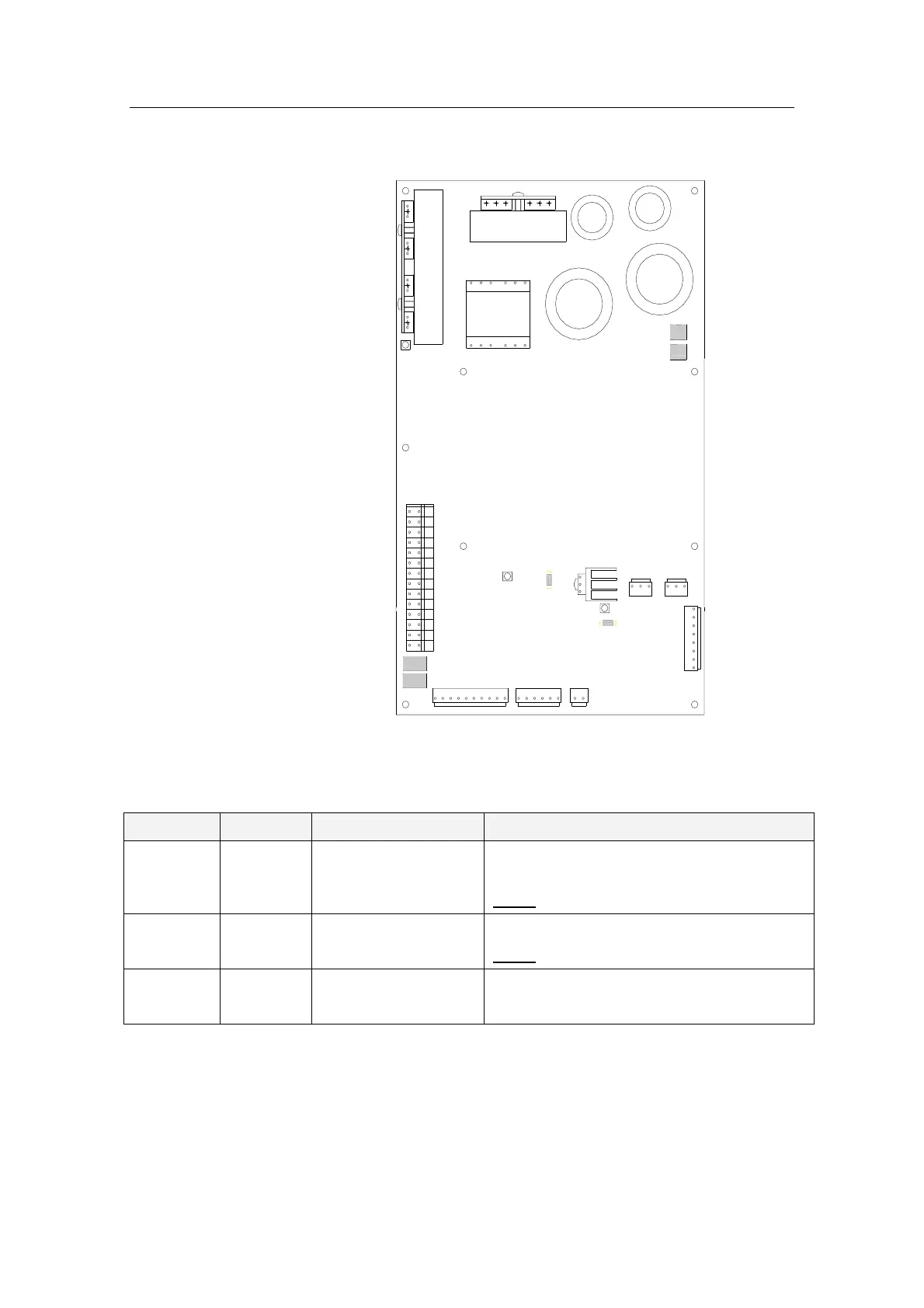

11.2 GPOWER board 1 and 2
J9
J10
J7
J8
TB4
TB3
Jumper settings on GPOWER boards
JUMPER DEFAULT FUNCTION DESCRIPTION
J7 Open
or
Short
Over-current limit set Over-current value of dc24v for Master
compass is set up.
NOTE
: Shall not be changed!
J8 Open Over-current limit
change time
Used for inspection at a factory.
NOTE
: Shall not be changed!
TB3 – TB4 Open Main power supply
setting
Open = 220V AC
Short = 100/110/115V AC
