Simrad GC80 - Verifying the Elements Tilt Angle

MAINTENANCE
20221537 / D 35
Verifying the element’s tilt angle
1. Tilt the Sensitive element by hand towards the level tool on
the Horizontal ring and keep it tilted for approximately 1
minute. Remove the pressure and observe that the tilt angle
remains at:
- GC80: 15° to 19°
- GC85: 18° to 22°

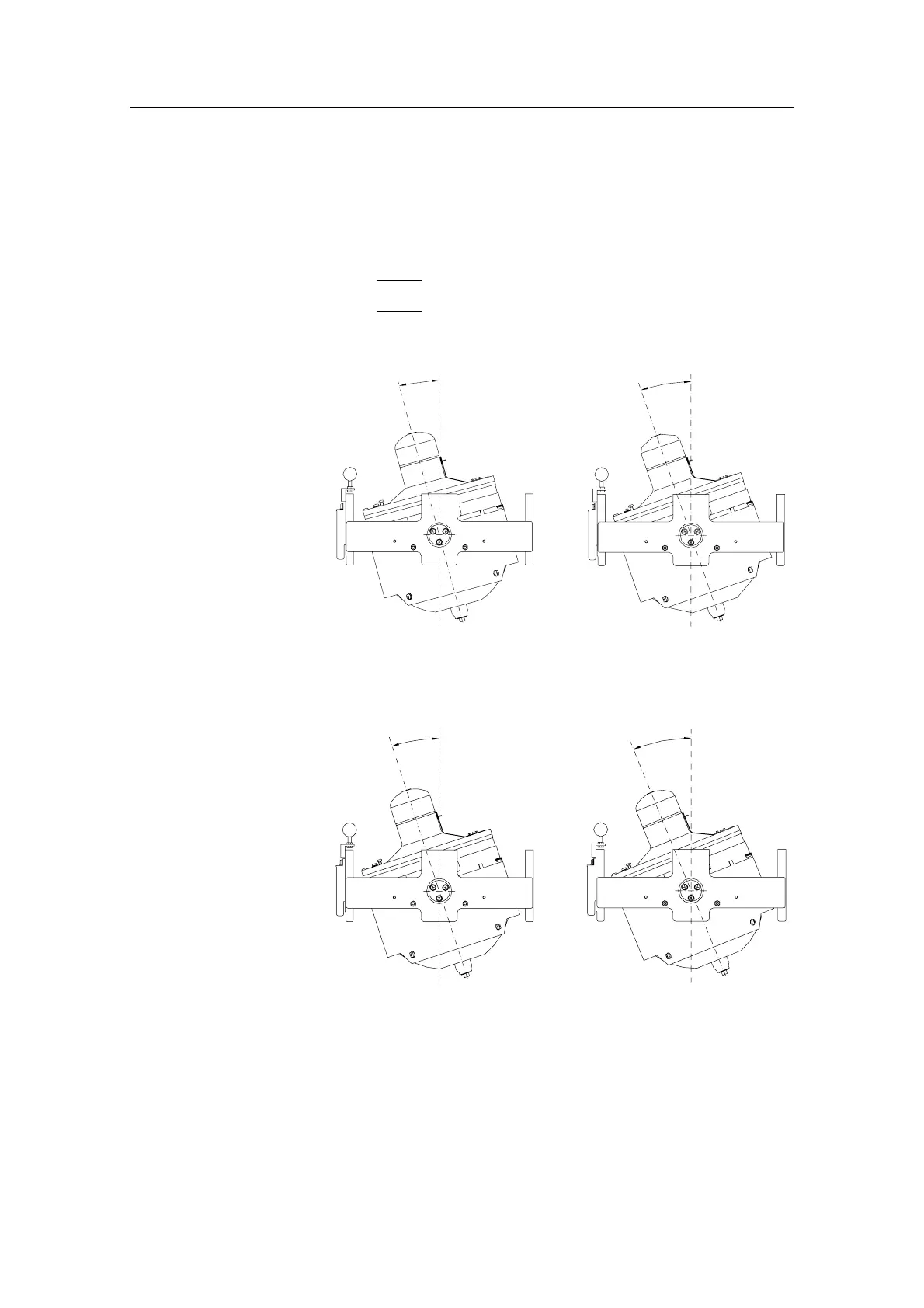

The tilt angle is indicated on the figures below.
1
5
°
1
9
°
Max and min tilt angle for GC80 std system
1
8
°
2
2
°
Max and min tilt angle for GC85 High Speed system
Note! The tilt angle shown above is correct for cold condition. The
angle may change when the element has reached normal
operational temperature!
