DIP SWITCH SETTINGS
20221537 / D 109
11.5 SCOIF board
J44
J45
J42
J43
4
2
3
1
J15
4
2
3
1
4
2
3
1
J17
4
2
3
1
4
2
3
1
J16
4
2
3
1
4
2
3
1
21
J19
J18
21
J21
J20
4
2
3
1
4
2
3
1
S1
J25
21
21
J31J26
21
21
J32J30
21
J27J23
4
2
3
1
4
2
3
1
J33J29
4
2
3
1
4
2
3
1
J28J34
4
2
3
1
4
2
3
1
J36J35
4
2
3
1
4
2
3
1
4
2
3
1
J37
4
2
3
1
4
2
3
1
4
2
3
1
1
3
2
4
12
65
J47
J48
J46
J22
J24
4
2
3
1
J38
4
2
3
1
J39
4
2
3
1
J40
4
2
3
1
J41

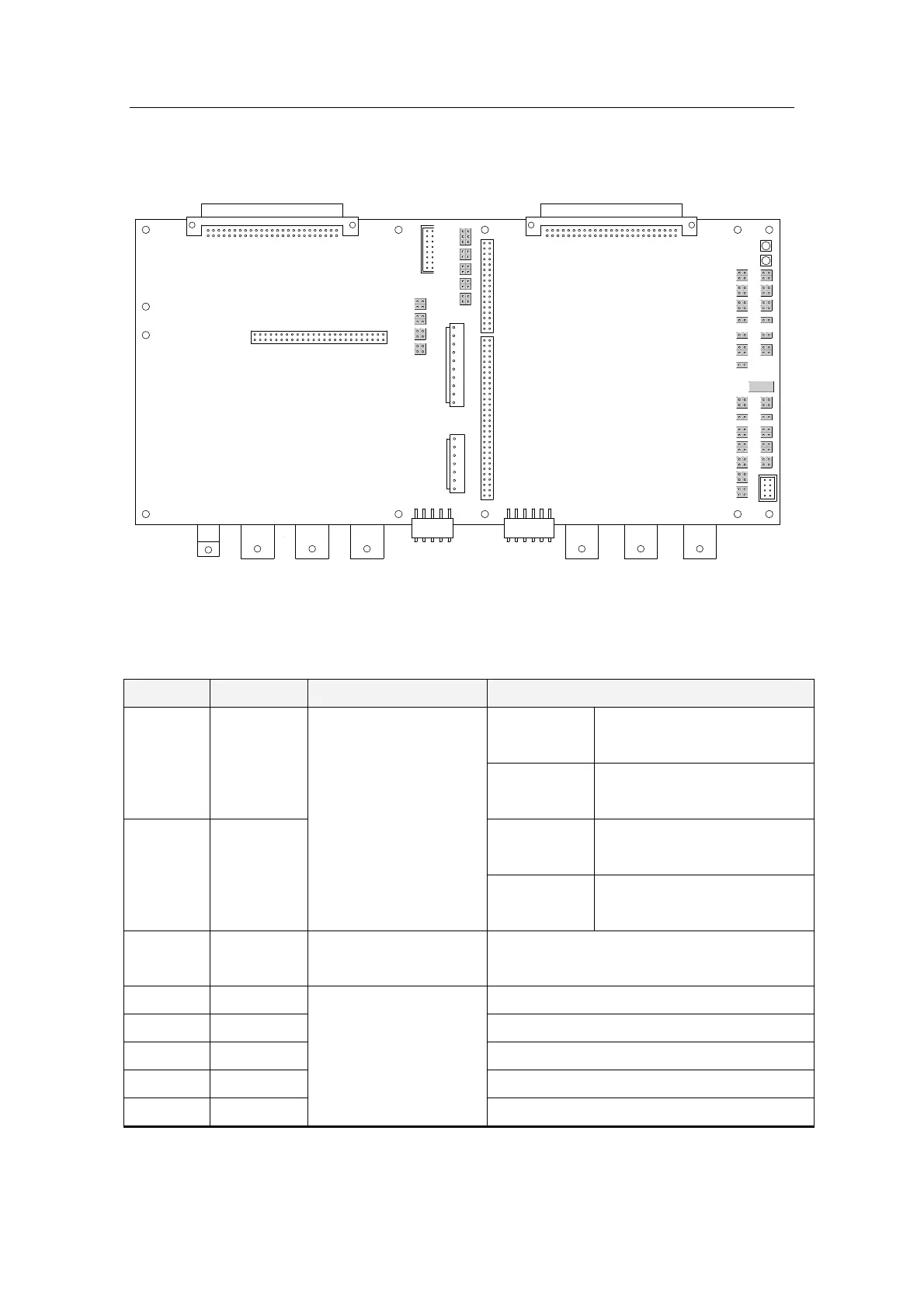

DIP switch settings on SCOIF board
SWITCH DEFAULT FUNCTION DESCRIPTION
SW1-1 OFF
SW1-2 OFF
No external sensor
SW1-1 OFF
S1-1 OFF
SW1-2 ON
Magnetic system connected
(back-up)
SW1-1 ON
SW1-2 OFF
External sensor connected
SW1-1 ON
S1-2 OFF
External sensor
connection
SW1-2 ON
External system connected
(back-up)
S1-3 OFF
Automatic system
change
OFF = NO
ON = YES
S1-4 OFF
S1-5 OFF
S1-6 OFF
S1-7 OFF
S1-8 OFF
Not used

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
