Simrad GC80 User Manual

Simrad GC80/GC85 Dual Gyro Compass
40 20221537 / D
F17
F14
F13
F4
F8
F12
F3
F7
F6
F5
F1
F2
F10
F11
F9
F16
F15
F17
F18
F19
WARNING Make sure that the main power switches SW1
and SW2 is turned OFF before any fuse is
replaced!
Note! The fuses in the Control unit are open glass type and may be
damaged if handles with force.
1 Pull the damaged fuse up from the holder.
2 Re-install a new fuse by carefully pushing it into the
holder. When correctly located, it should be fixed 1-2mm
above and parallel with the mounting level.

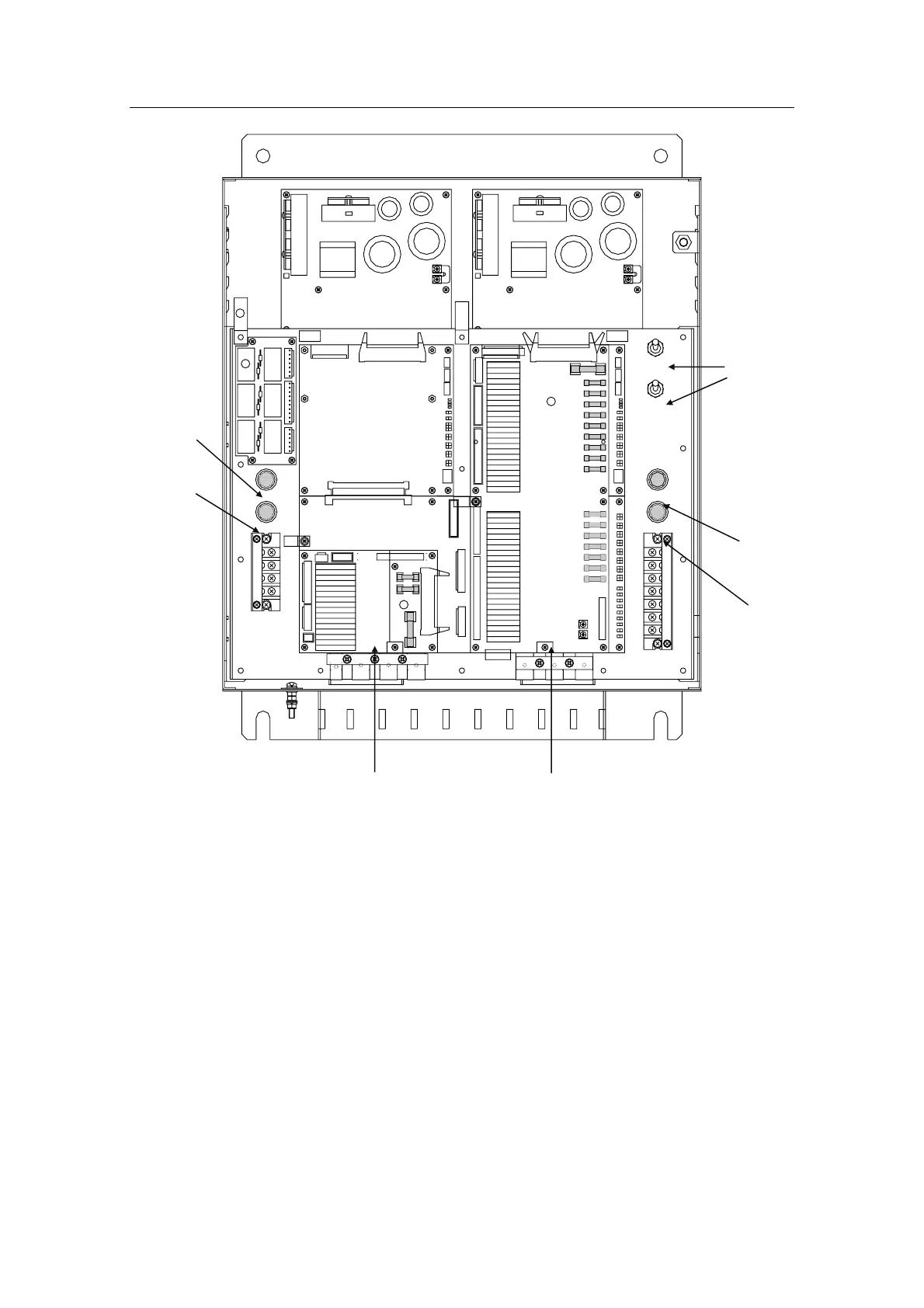

SW1 AND
SW2
MAIN
POWER
SWITCHES
FOR
MASTER
COMPASS
1 AND 2
F201
(6.3A)
AND
F202
(20A)
FOR
MASTER
COMPASS
NO.2
F101
(6.3A)
AND
F102
(20A)
FOR
MASTER
COMPASS
NO.1
GTERM
BOARD
DTERM
BOARD

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
