Simrad GC80 User Manual

Simrad GC80/GC85 Dual Gyro Compass
44 20221537 / D
4 Loosen the 4 nuts holding the control panel, and remove
the panel. These nuts are to be re-used when fastening the
control panel to the flush mounting panel.

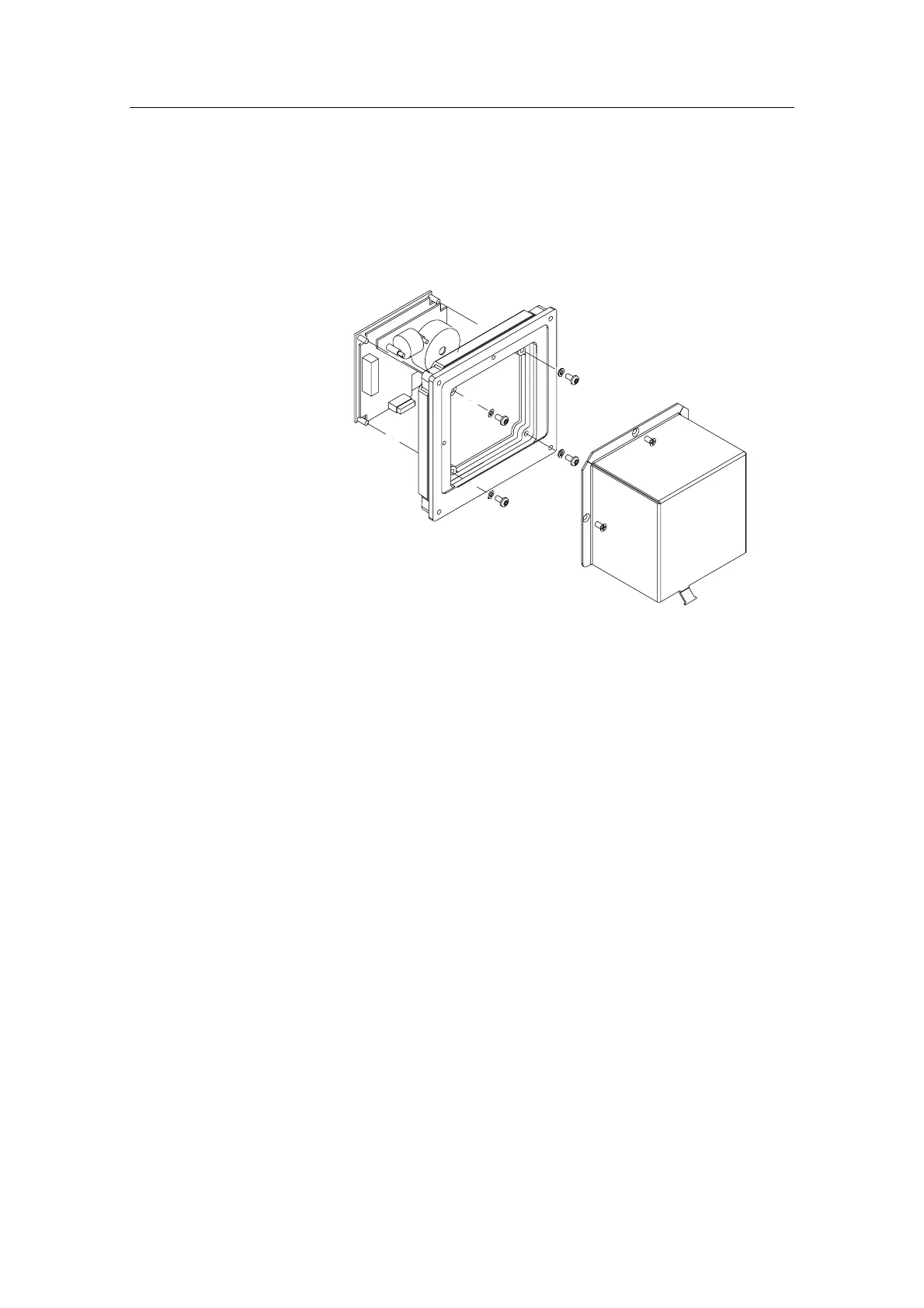

5 Insert the control panel in the flush-mounting kit from the
front side as shown on the figure. Fasten the panel with the
4 nuts.
6 Insert the plug on the optional control panel cable, and
connect the grounding wire.
7 Mount the cover on the back side.
8 Fasten the cable to the cover by a wire strip.
9 Slide the control panel cable through the cable inlet, insert
the plug in SCC board and connect the grounding wire.
Secure the cable to the control unit by a wire strip.
10 Insert the blind cover in the Control unit by using the 4
bolts included in the kit.

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
