INSTALLATION
20221537 / D 57

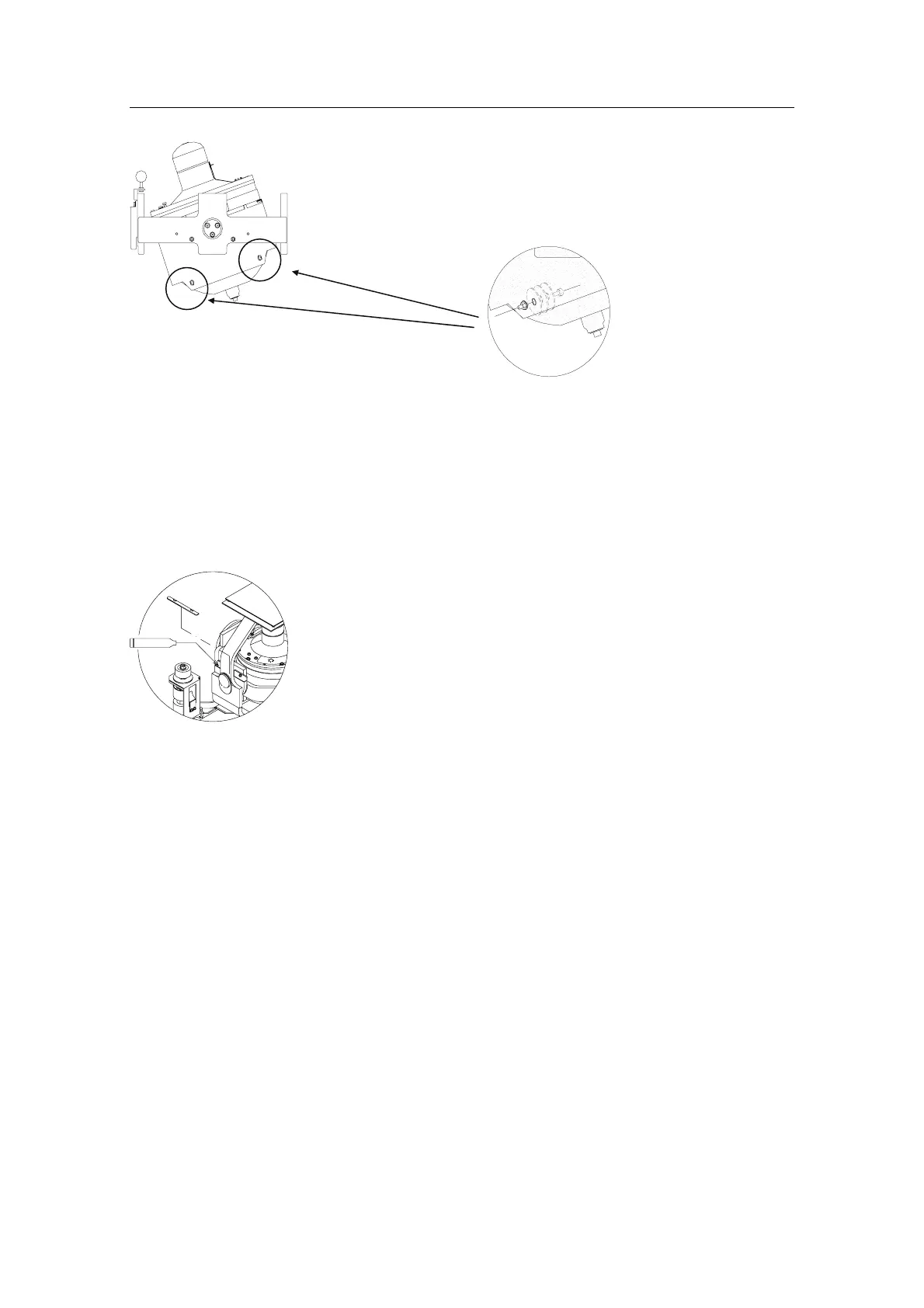

2 If the tilt angle is incorrect, weight disks must be adjusted
by moving weights from one side to the other. After
adjustments, wait for 2 minutes for the oil to set before the
tilt angle verification is repeated.
Caution! The sensitive element must have equal number of weight disks
on both weight points on the tilting side (north and south
side)!
3 Carefully rotate the Horizontal ring at least one complete
rotation. Verify that all movable parts will turn around
without making any contact with mechanical or electrical
components.
4 Lift the lid from the damper oil case, and fill the container
with the supplied damper oil. The oil has high viscosity,
and care should be taken when pouring the damper oil into
the container to avoid spill. Reinstall the lid on the damper
oil case.
Any oil spilled on the outside should be cleaned.
