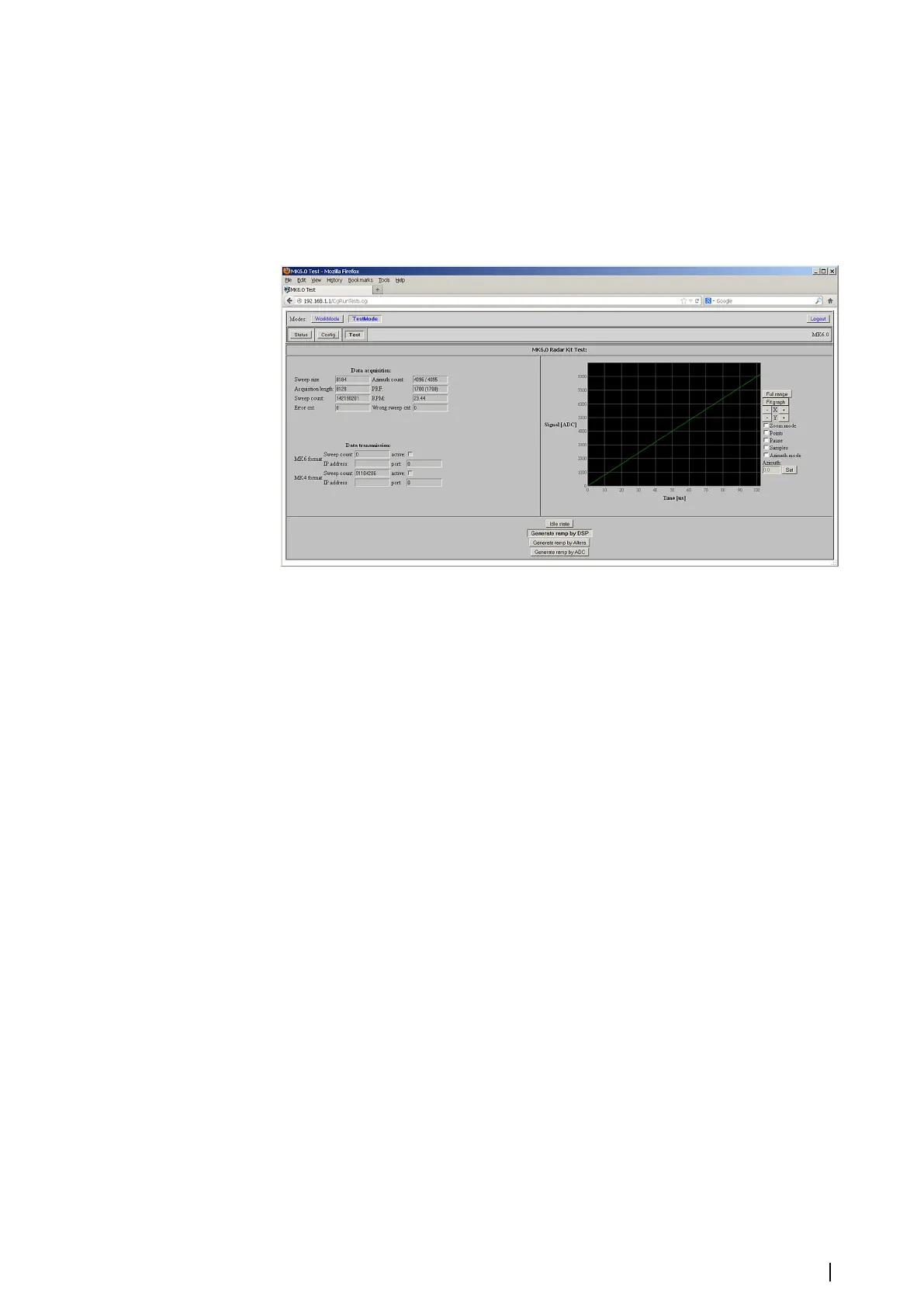

Test mode
Test mode provides a possibility to briefly assess the main functionality of the board. In test
mode, internally generated signals are used, so the board can be tested without connection
to the radar. There are three tests available. The first test provides the test signal (digital ramp)
generated in DSP, the second test provides it generated in Altera, and the third test provides
it generated in ADC. Signals which are generated by DSP and Altera are synchronized with
the beginning of the sweep, so they are not moving. The signal which is generated by ADC is
not synchronized with the sweep and starts in random moments.
Settings | MK 6.0 Installation Manual
29
