Sinterit LISA X User Manual | 14
21
WI-FI ANTENNA
22
ETHERNET PORT
23
GAS INLET NIPPLE
(QUICK CONNECT FITTING)
24
POWER SOCKET
25
POWER SWITCH (ON/OFF)

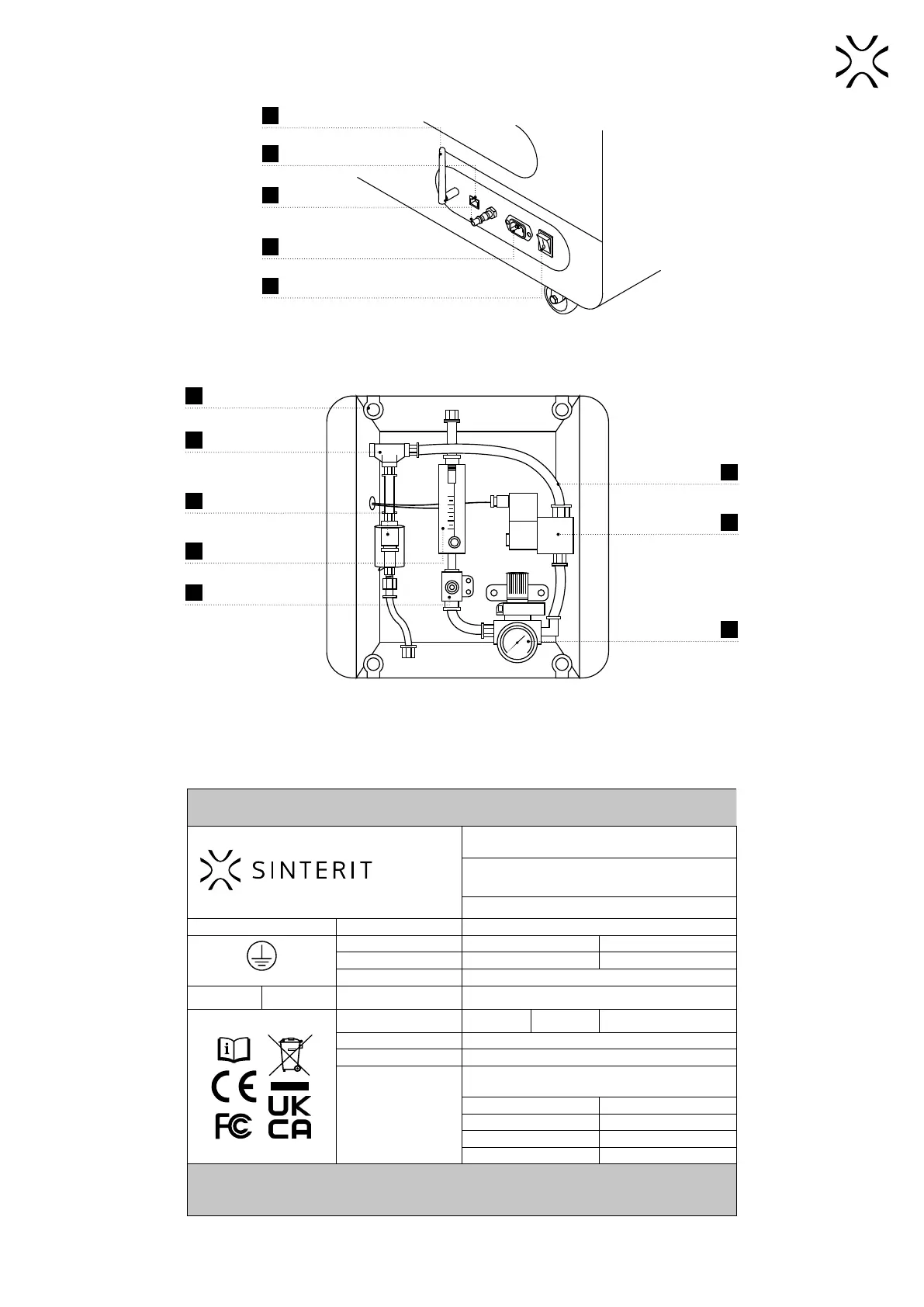

Fig. 3.4 View of the back of the printer.
AIR 20°C 1 atm NI/min
10
8
6
4
2
26
MAGNETIC FASTENERS
33
32
31
PNEUMATIC TUBING
PNEUMATIC
SOLENOID VALVE
PRESSURE REDUCING
REGULATOR WITH
BUILT-IN MANOMETER
27
T-TYPE PUSH-IN FITTING
WITH A PRESSURE SENSOR
30
THROTTLE CHECK VALVE
28
FILTER AIR DEHYDRATOR
29
ROTAMETER
Fig. 3.5 View of the inert gas control system.
3.5 PRINTER SAFETY PLATE
DO NOT REMOVE THIS LABEL!
Manufacturer
Sinterit sp. z o.o. ul. Nad Drwiną 10 bud. B3, 30-741 Kraków, Poland
www.sinterit.com support@sinterit.com
Name Lisa X
Serial number
Manufactured Made in EU / POLAND
IEC Protection Class Machine type SELECTIVE LASER SINTERING 3D PRINTER
Class 1
Dimensions 650 x 610 x 1200 [mm] 25.6 x 24.0 x 47.2 [in]
Total weight 145 [kg] 319 [lbs]
Power consumption 190-240 [V] AC, 50-60 [Hz], 1.65 [kW]
IP Code
IP20
AC current 8 [A] / 230 [V] AC
Short-circuit
current rating
6 [kA]
Number
of phases
1
Contains devices FCC FCC ID: 2ABCB-RPICM4
Laser product class
CLASS 1 IR LASER PRODUCT INVISIBLE LASER RADIATION
Embedded laser
product class
CLASS 4 IR LASER PRODUCT
INVISIBLE LASER RADIATION
wavelength λ = 976 ± 3 [nm]
beam divergence θ = 13°
beam output CW (CONTINUOUS WAVE)
maximum power 30 [W]
WARNING! Read and understand operator’s manual and all other safety instructions before using this machine.
Failure to follow operating instructions could result in serious injury.
Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No. 56, dated May 8, 2019.
