INSTALLATION AND COMMISSIONING
SKF Enlight Collect gateway
SKF Enlight Collect IMx-1 System
User Manual
Revision F
Antenna recommendation
The Delock 12545 antenna has been regulatory tested with the CMWA6600 GW to
serve as an all-band antenna solution for Miramesh, Wi-Fi/BLE and Cellular
applications.
This antenna has a 1m integral cable and male SMA connector for direct interfacing
to the CMWA6600 GW antenna connections. Furthermore, this antenna has easy nut
based mounting capabilities.

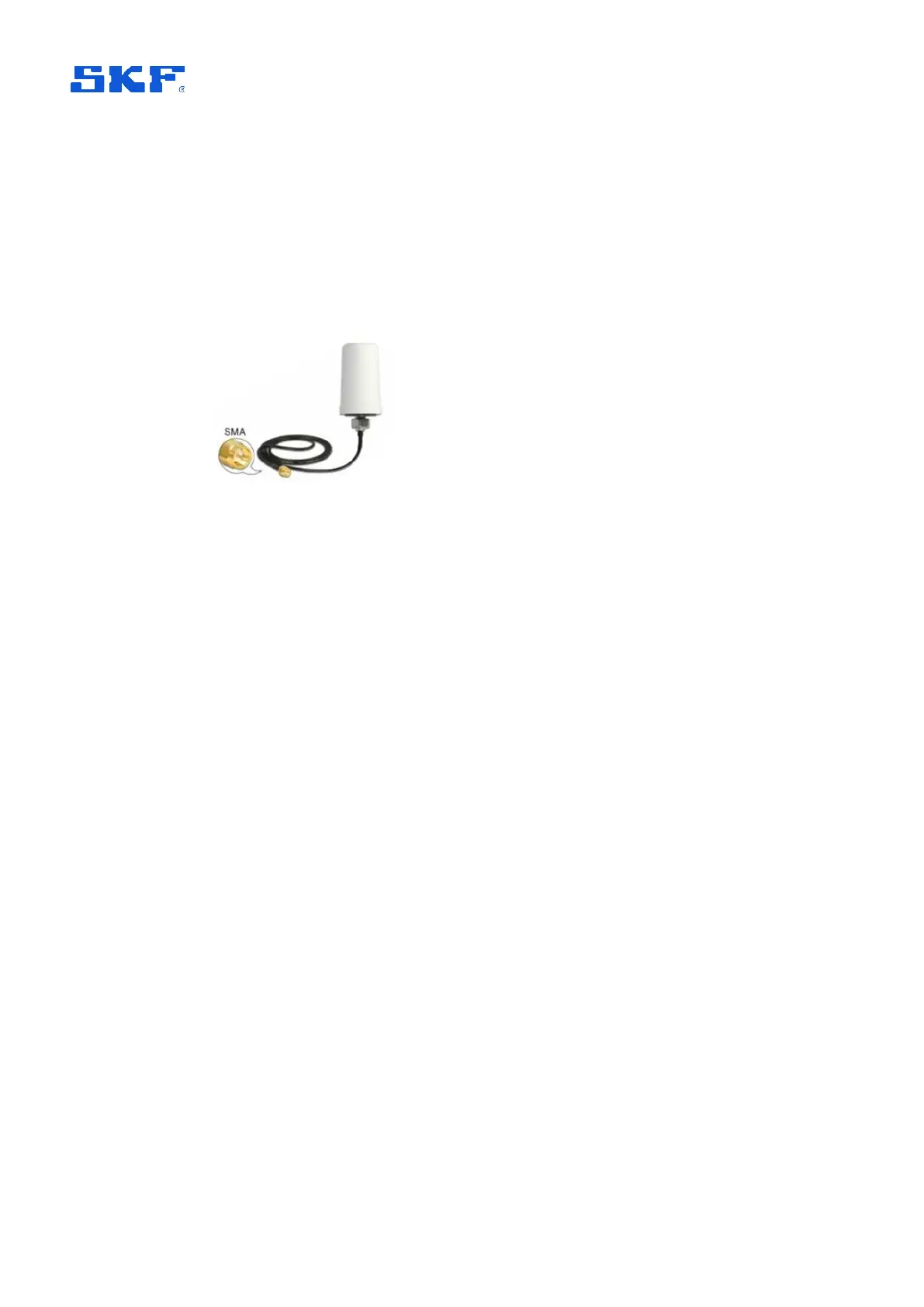

Figure 33 Delock 12545 antenna
Antenna Gain (max pk):
• 698 – 960 MHz: 1.7 dBi
• 1710 – 2170 MHz: 1.7 dBi
• 2300 – 2700 MHz: 2.0 dBi
• 5180 – 5825 MHz: 2.9 dBi
VSWR (max):
• 698 – 960 MHz: 6.0
• 1710 – 2170 MHz: 2.5
• 2300 – 2700 MHz: 2.5
• 5180 – 5825 MHz: 2.3
Other specifications:
• Operating temperature: -40 °C ~ 85 °C
• Housing material: polycarbonate
• Protection class: IP67
• Colour: white
• Cable: coaxial
• Cable type: ULA100
• Cable colour: black
• Cable diameter: ca. 2.8 mm
• Cable attenuation: 0.98 dB @ 1500 MHz per meter
• Smallest bending radius: 14 mm
• Cable length incl. connectors: ca. 1 m
• Dimensions (LxD): ca. 77 × 45 mm
