PRODUCT DESCRIPTION
Introduction to the SKF Enlight Collect IMx-1 system
SKF Enlight Collect IMx-1 System
User Manual
Revision F
1 Product description
1.1 Introduction to the SKF Enlight Collect IMx-1 system
The overall architecture of the SKF Enlight Collect IMx-1 System:

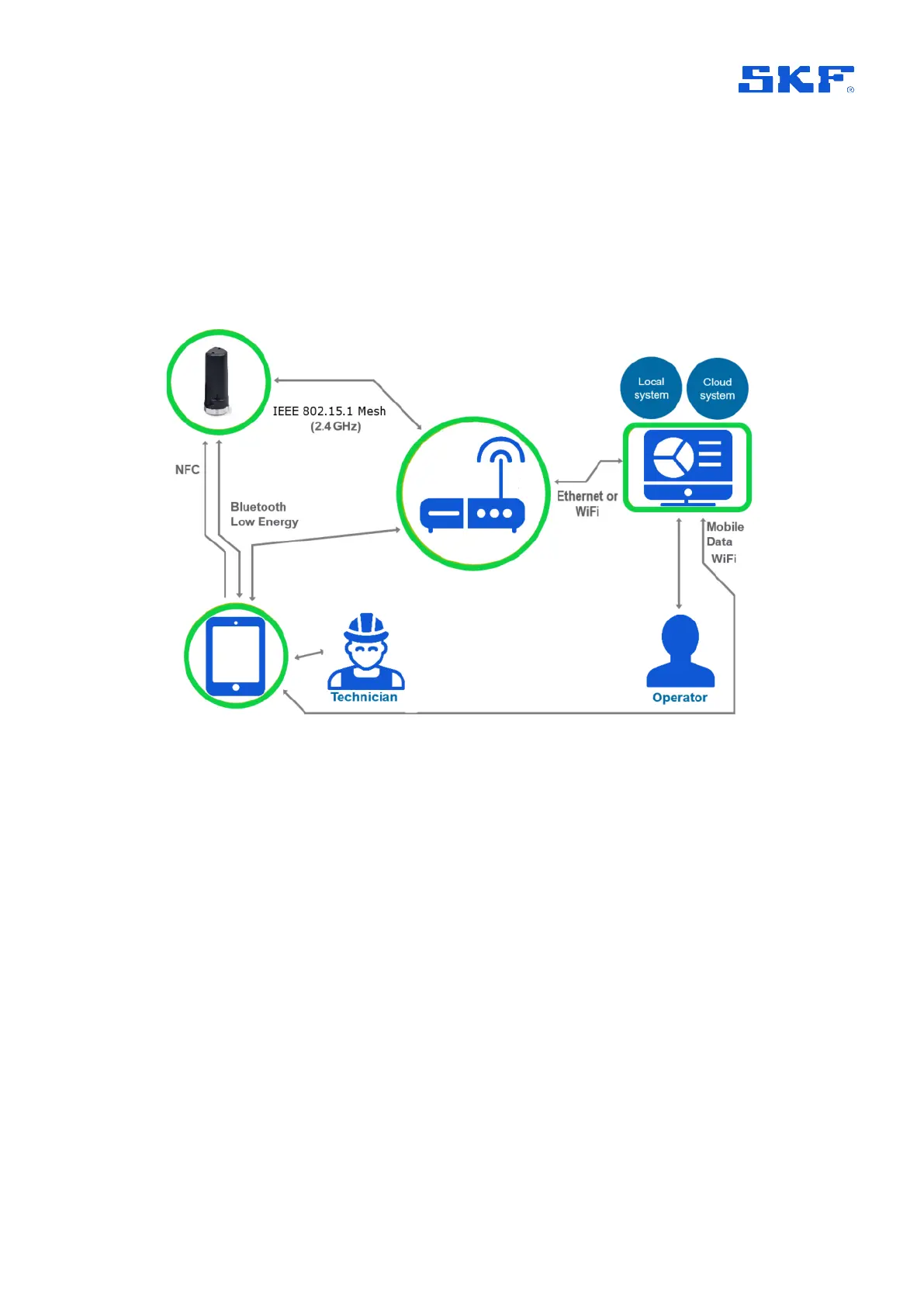

Figure 1 SKF Enlight Collect IMx-1 System architecture – single gateway, one sensor shown
The system consisting of sensors, gateways, analysis and visualisation software and
a mobile application for Android and iOS devices, the Enlight Collect Manager app,
provides the opportunity for a completely wireless architecture at the monitored
machinery.
One gateway and its associated wireless sensors form a communication network.
This may also include relay nodes, essentially sensors that have their measurements
disabled and that are used to support/extend the wireless mesh. A system consists of
the analysis and visualisation software and at least one gateway, although in most
systems, multiple gateways are anticipated. Different gateways might typically be
applied to different machine groups, production processes or physical plant areas.
According to a user defined schedule, the sensors measure the vibration and
temperature of the monitored machinery, pre-process the vibration signals and
transmit all the resulting data to the gateway. This is then forwarded to the analysis
and visualisation software where the final analysis is performed, and historical data is
