INSTALLATION AND COMMISSIONING
Offline commissioning
SKF Enlight Collect IMx-1 System
User Manual
Revision F

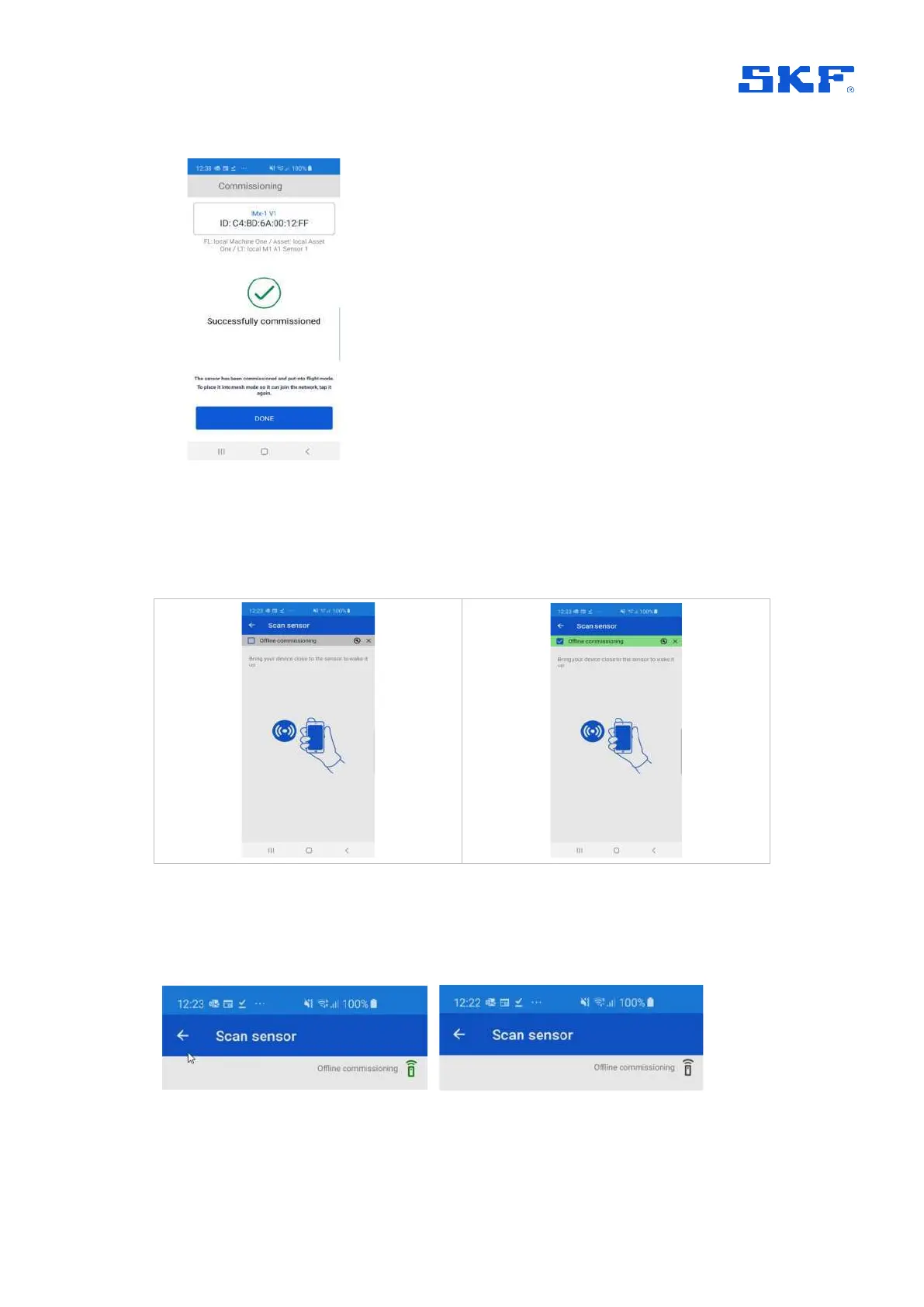

Figure 39 Successfully commissioned – with reminder to place the sensor into mesh mode
To install the sensor and place it into mesh mode, select the Scan Sensor option
and the sensor will be tapped as normal. If offline commissioning is selected, the
banner will change its colour from grey to green.
Figure 40 Scan sensor
You can also minimise the banner by tapping the × button. The banner will appear as
shown below:
Figure 41 Offline commissioning banner minimised
