SKF MKU Series Assembly Instructions

35

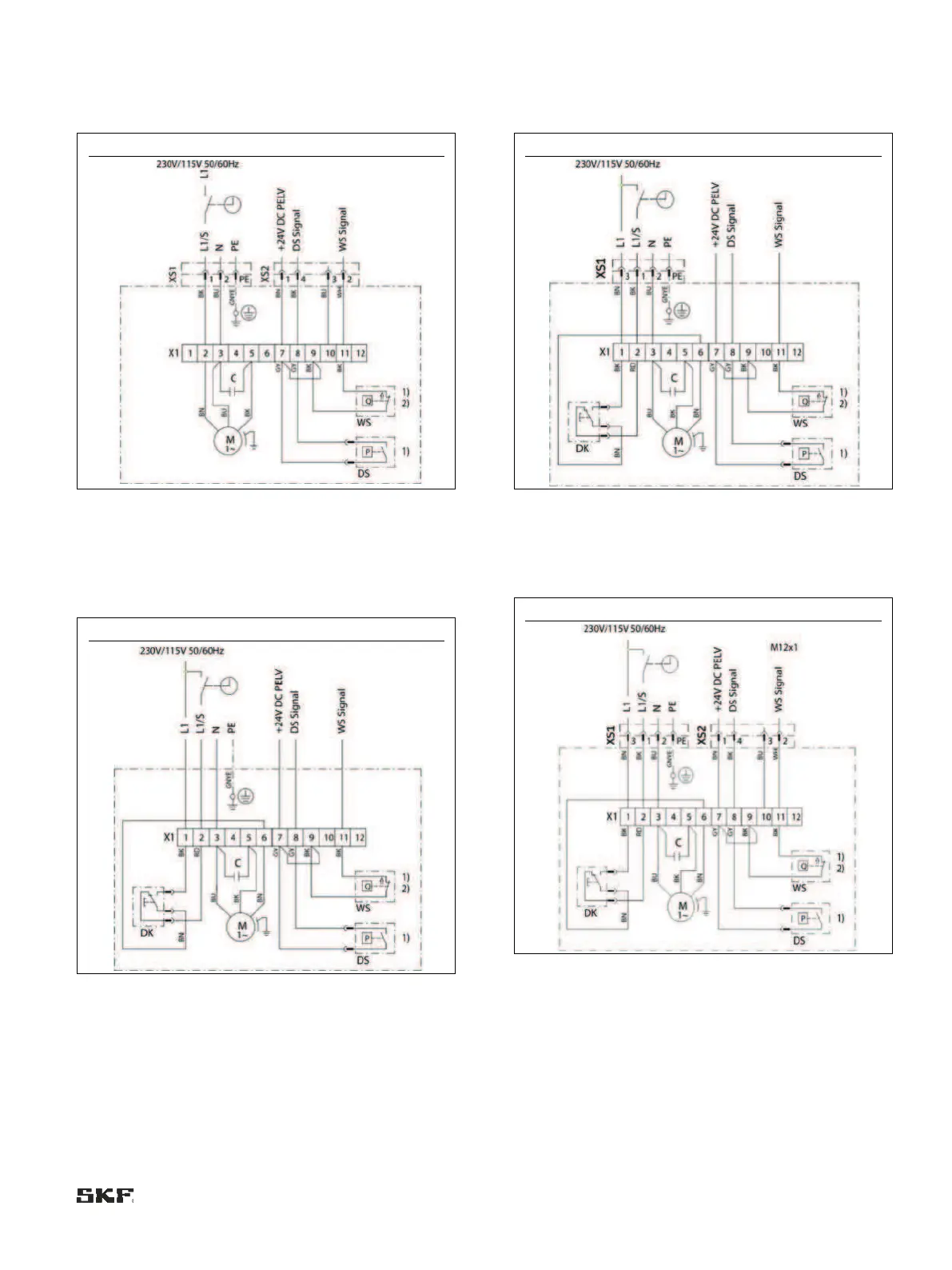

Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 34
MKU1-11A _ _ 2000+428/+429
6.8.2.2 MKU, 2-liter reservoir, voltage design
230/115 VAC, with pushbutton
Connections via:
• 2x screwed glands
Fig. 35
MKU1-11B _ _ 0000+428/+429, MKU1-11B _ _
3000+428/+429
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 36
MKU1-11B _ _ 1000+428/+429, MKU1-11B _ _
4000+428/+429
Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 37
MKU1-11B _ _ 2000+428/+429
