SKF MKU Series Assembly Instructions

48
Table 14
Settings
Assignment
Operation
<Content>
d2:12
Fault
d2:24
Normal operation
d2:22
Fault
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland

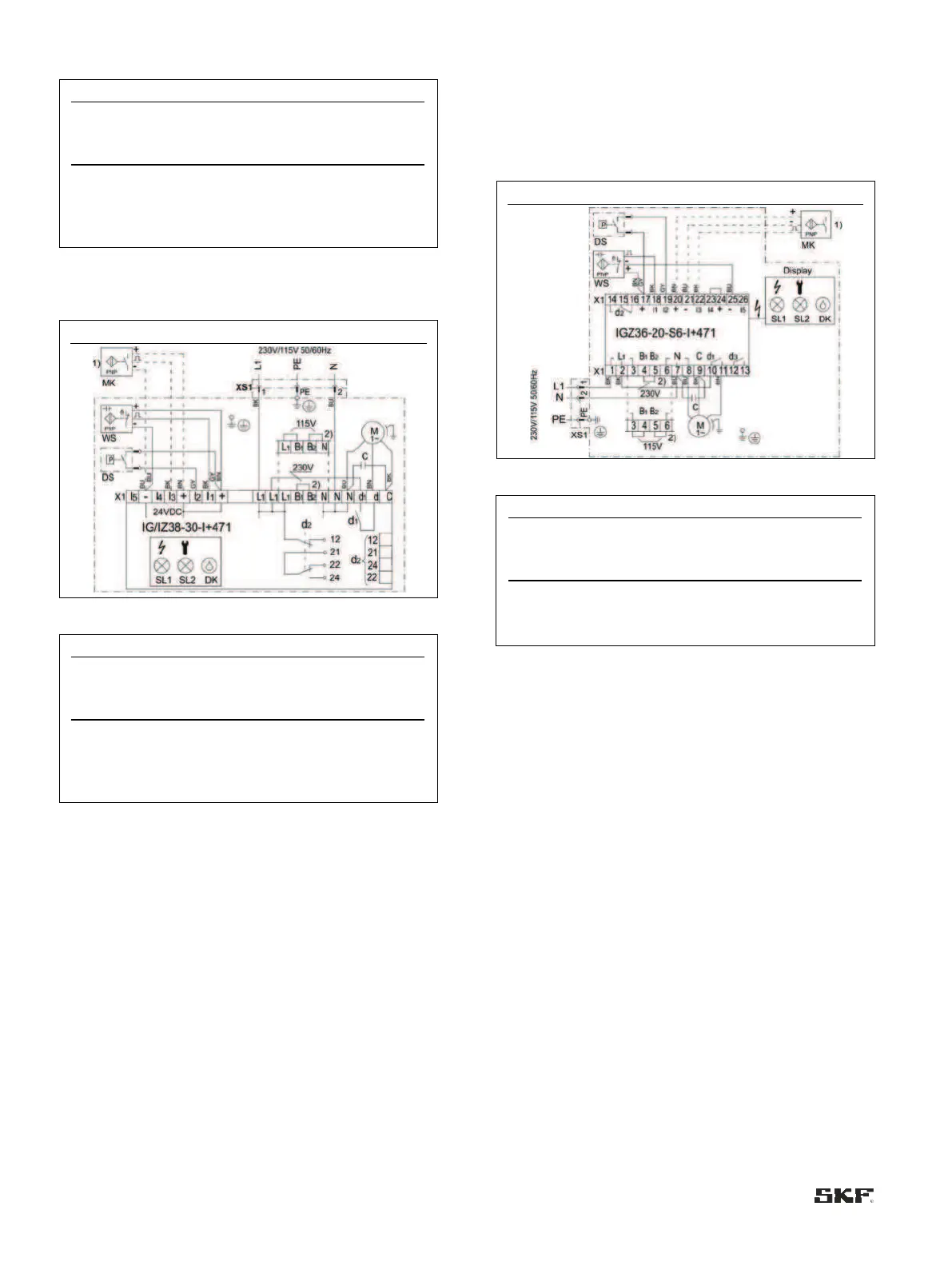

Fig. 85
MKF2/5-12/4C/D _ _ 1000+428/+429
Table 15
Settings
Assignment
Operation
<Content>
d2:12
Fault
d2:24
Normal operation
d2:22
Fault
1) Machine contact MK is only required in counter mode (IZ38-
30-I control unit)
2) The control unit can be switched between 230 V and
115 V AC. The pump motor is not switchable!
6.8.4.1 MKF, IGZ36 control unit, voltage design
230/115 VAC
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 86
MKF2/5-12/4E _ _ 1000+428/+429
Table 16
Settings
Assignment
Operation
<Content>
X1:16
Fault
X1:14
Normal operation
1) Machine contact MK is only required in counter mode
(operating mode D)
2) The control unit can be switched between 230 V and
115 V AC.
The pump motor is not switchable!
