SKF TMEB 2 Belt alignment tool

Step 2. Elimination of horizontal angle misalignment.

Move the machine until the laser line is positioned equidistantly from

the three reference lines, the top reference line and the two bottom

reference lines (as per figure 13).

Step 3. Elimination of parallel misalignment.

Move one of the pulleys on its shaft until the laser line exactly

matches the three reference lines (as per figure 15).

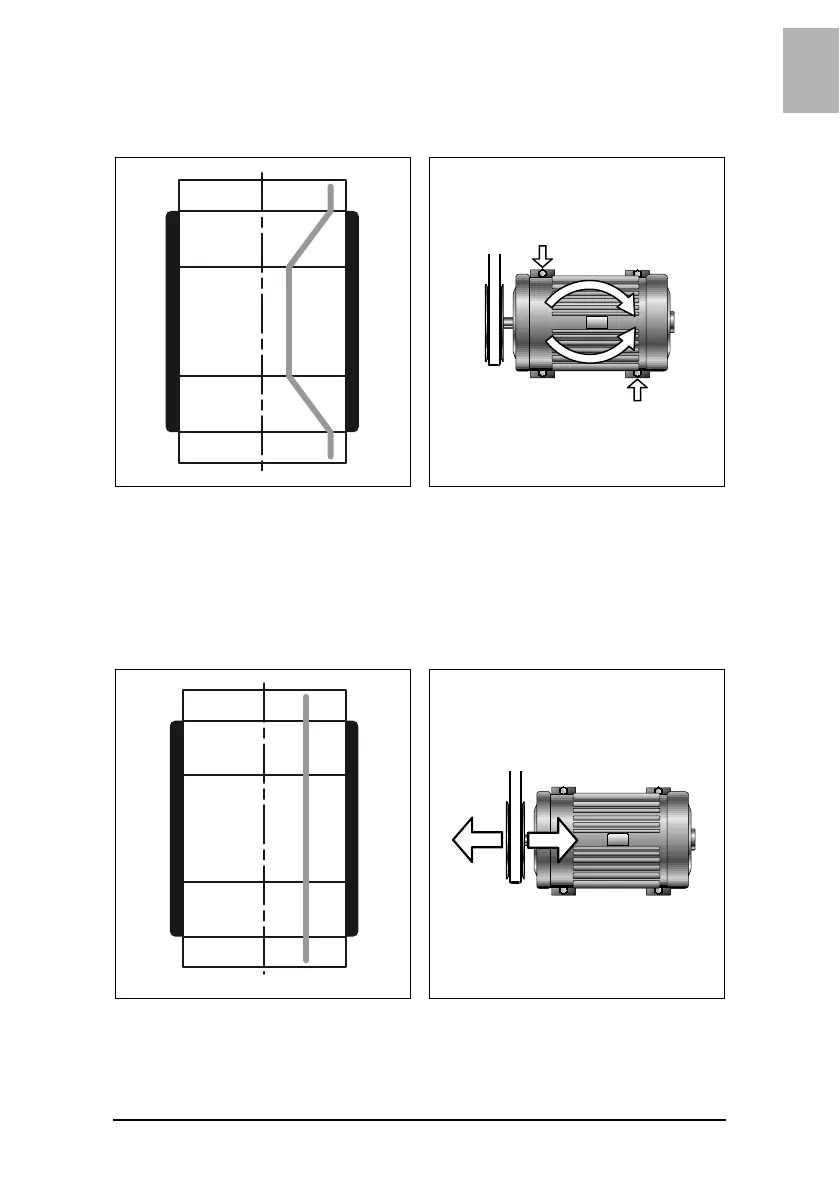

Fig. 11. Pulleys with combined

horizontal angle and

parallel misalignments

Fig. 12. Horizontal angle alignment

Fig. 13. Pulleys with parallel

misalignment

Fig. 14. Parallel alignment
