Italiano
SKF TMEB 2 L’allineatore per cinghie 57
2.2 Campo di applicazione

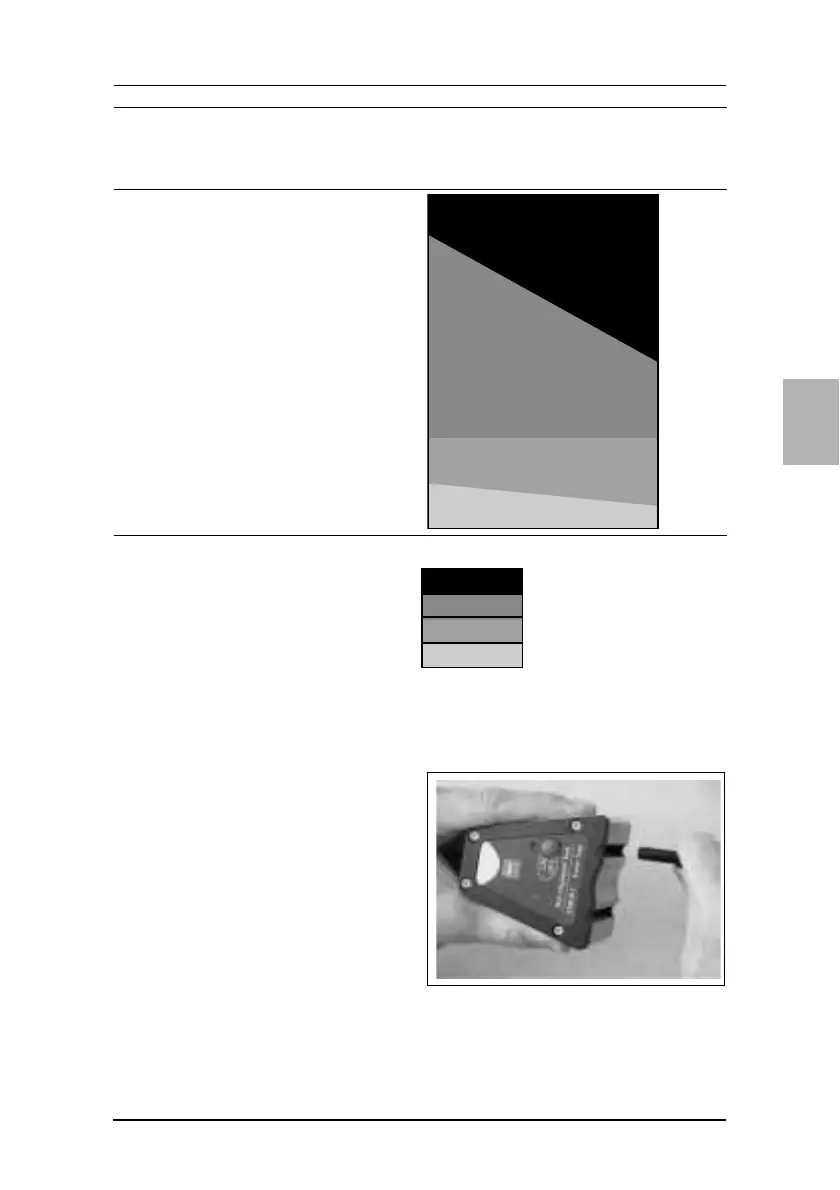

Schema per la scelta delle guide a V
3. ISTRUZIONI PER L’USO
3.1 Scelta delle guide a V
Con il TMEB 2 sono fornite
quattro misure di guide a V adatte
all'accoppiamento con gole di
qualsiasi grandezza e tipo.
Se è necessario passare alle
guide a V più piccole o più grandi,
scegliere e fissare le guide adatte
come mostrato nella figura 2.
Larghezza
gole
pulegge
(mm)
Profilo cinghia Min.
Ø
(mm)
Diametro di riferimento
pulegge
Max.
Ø
(mm)
6 Y/6 75 700
8 8 75 900
9 3V/9N 85 900
9,7 SPZ 85 900
10 Z/10, ZX/X10 80 900
12,7 SPA 85 900
13 A/13, AX/X13 80 900
15 5V/15N 90 1300
16,3 SPB 90 1300
17 B/17, BX/X17 90 1300
20 20 140 1300
22 SPC, C22, CX/X22 140 1300
25 25, 8V/25N 300 1800
32 D/32 300 1800
40 E/40 300 1800
Guida a V 1: 5 - 22 mm asta corta
Guida a V 2: 5 - 22 mm asta lunga
Guida a V 3: 22 - 40 mm asta corta
Guida a V 4: 22 - 40 mm asta lunga
Fig. 2. Montaggio o smontaggio
delle guide a V
