SKF TMEB 2 User Manual

14 Belt alignment tool SKF TMEB 2
The pulleys are now successfully aligned.
Note:
When tightening the belt, check the horizontal angle alignment and
adjust if necessary.
Warning:
Switch OFF the laser unit and remove both units BEFORE starting
machinery.
4. TROUBLESHOOTING
4.1 No laser line
• Check that the batteries are inserted correctly in the laser unit.
• Replace the batteries.
• Make sure the optic of the laser unit is not obstructed by dirt. If
necessary, clean with cotton cloth.
4.2 Lost calibration
If for some reason, such as heavy impact, the laser unit loses its
calibration, return the TMEB 2 to SKF for repair.

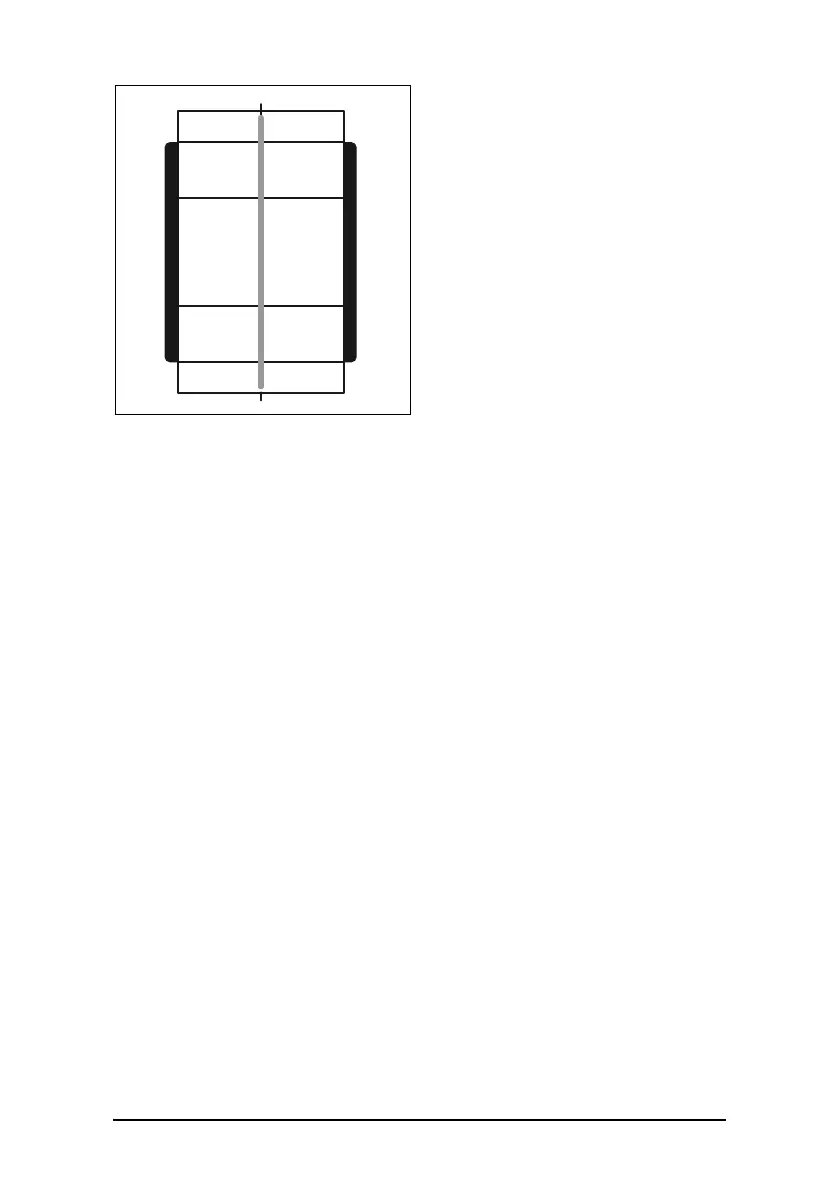

Fig. 15. Pulleys perfectly aligned
