SKF TMEB 2 Belt alignment tool 9
2.2 Application range

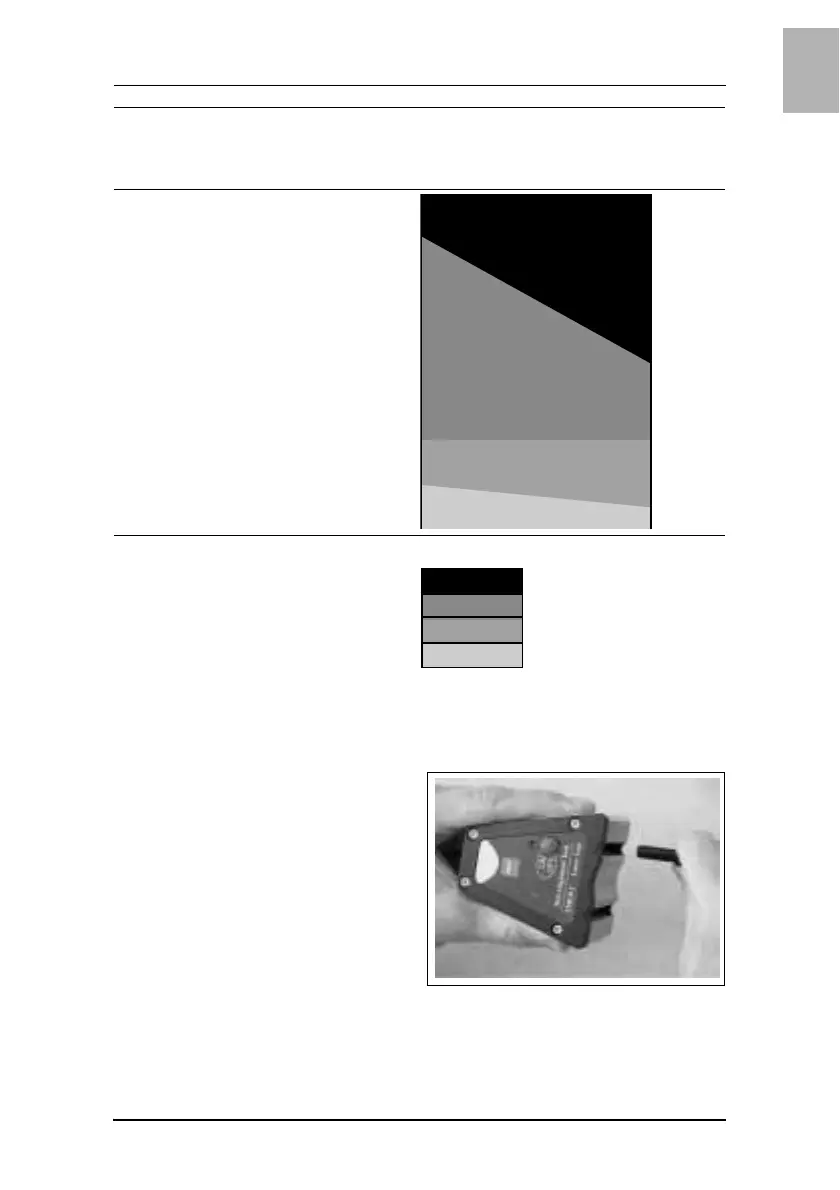

V-guides selection chart
3. INSTRUCTIONS FOR USE
3.1 Selecting V-guides
Four sizes of V-guides are
supplied with the TMEB 2 to fit
pulley grooves of most widths and
types. Should you need to
exchange the V-guides for the
smaller or larger one, select and
attach the appropriate V-guides
as shown in figure 2.
Pulley
groove
width
(mm)
Belt profile Min.
Ø
(mm)
Pulley datum diameter Max.
Ø
(mm)
6 Y/6 75 700
8 8 75 900
9 3V/9N 85 900
9,7 SPZ 85 900
10 Z/10, ZX/X10 80 900
12,7 SPA 85 900
13 A/13, AX/X13 80 900
15 5V/15N 90 1300
16,3 SPB 90 1300
17 B/17, BX/X17 90 1300
20 20 140 1300
22 SPC, C22, CX/X22 140 1300
25 25, 8V/25N 300 1800
32 D/32 300 1800
40 E/40 300 1800
V-guide 1: 5 - 22 mm short rod
V-guide 2: 5 - 22 mm long rod
V-guide 3: 22 - 40 mm short rod
V-guide 4: 22 - 40 mm long rod
Fig. 2. Fitting or removal of
V-guides
