SJ519 TH 216939ADA
85
Model SJ519 TH Section 8 – Labels
Description Label Pictorial
7

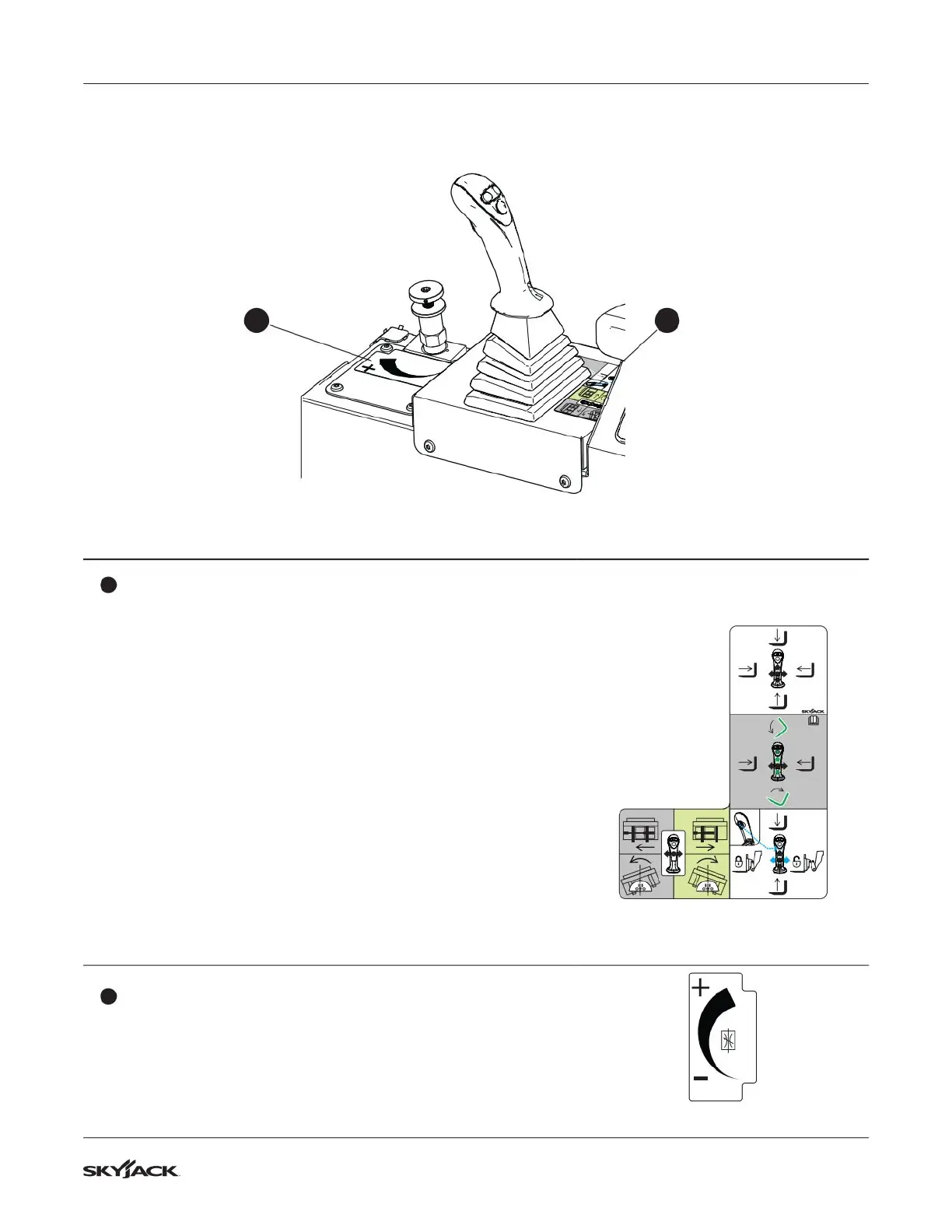

Multi-functional Joystick
The multi-function single controls boom operation, fork tilt, and
auxiliary functions.
▪
Move joystick forward or backward to raise or lower the
boom.
▪
Move joystick right or left to extend or retract the boom.
▪
Press and hold middle button and move joystick forward to
tilt attachment forward.
▪
Press and hold middle button and move joystick rearward
to tilt attachment backward.
▪
Use optional attachment function switches to control the
auxiliary functions of optional attachments.
▪
Press and hold the trigger button and move joystick left
to lock the attachment with the hydraulic quick attach (If
Equipped).
▪
Press and hold the trigger button and move joystick right
to unlock the attachment with the hydraulic quick attach (If
Equipped).
172940AAZZ
6
Attachment Hydraulic Flow Control
▪
Increase the flow of hydraulic fluid through the attachment
by turning the Attachment Hydraulic Flow Control
clockwise.
▪
Decrease the flow by turning it counterclockwise.
172941AAZZ
Operator’s Cab Controls (continued)
78
