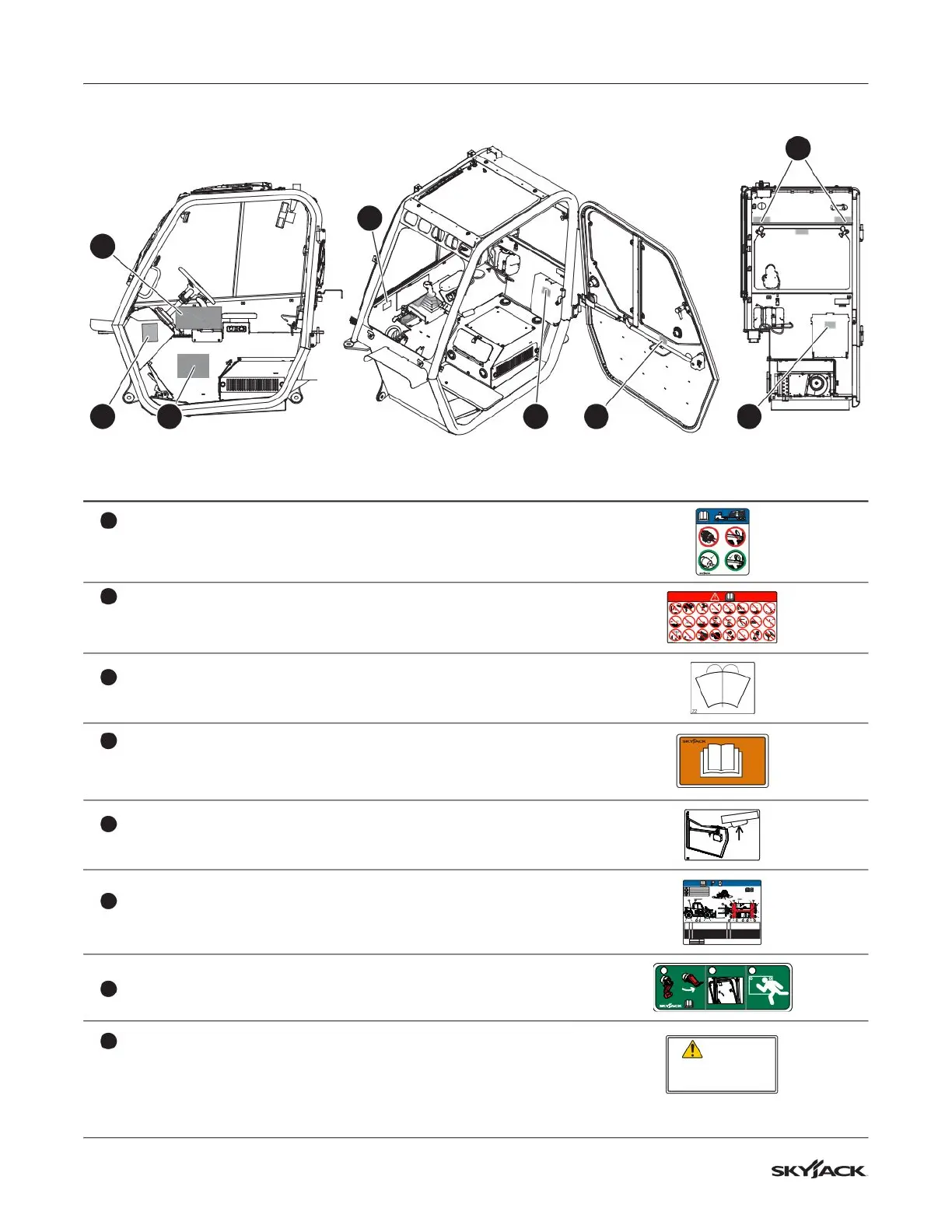

Section 8 – Labels Model SJ519 TH
Operator’s Cab
Description Label Pictorial
1
Transportation Reminder
Ensure engine air cleaner, and exhaust are sealed during
transportation.
2
Hazard Identification
Read and understand outlined risks associated with this
telehandler prior to operation.
3
Windshield Washer Fluid Container
Windshield Washer fluid
4
Manual Storage Box
Indicates location of operating manual and other important
documentation.
TM
5
Open Door (If Equipped)
Squeeze to open cab door.
6
Daily & Weekly Maintenance Chart
Grease points and lubrication intervals chart
Premium Multi-purpose ATF Oil
442 ft.-lbs / 600 N·m
EP2 Grease
Ultra Low Sulfur Diesel Only
Multi-purpose Premium Engine Oil
1 Check engine oil level. Add to “full”.
10 hrs.
or
Daily
50 hrs.
or
Weekly
2 Check engine coolant level. Add as required.
3 Check transmission oil level with engine running. Add to “full”.
4 Check air cleaner indicator. Squeeze vaccuator valve to clean.
5 Check fuel level. Add as required.
15 Grease drive shaft U-joints and slip joints. (6 fittings).
10 Check wheel lugs condition.
11 Check for oil leaks around axle differential.
12 Check axle planetary wheel ends oil level. Add as required. (4 plugs).
13 Grease axle pivot bearings. (4 fittings).
14 Grease axle king pins. (8 fittings).
16 Grease fork pins.
6 Check hydraulic oil level. Fill to sight gauge.
7 Check fuel/water separator.
8 Check tire condition.
9 Check windshield washer fluid level. Add as required.
Engine-Side View
Top View
16
13
3
14
8 15
15 859
11
8 14 612 1012 10
4 2
1 7
14 8
11
14
10h / 50h
Notes:
Filter Maintenance Kit SJ519 TH
(a) 250 h 220512
(b) 1000 h 220513
250h
(a)
1,000h
(b)
7
Emergency Exit Procedure
204421AAZZ
TM
1 2 3
8
Warning - California Proposition 65
Cancer and Reproductive Harm-
https://www.p65warnings.ca.gov/.
Cancer and Reproductive Harm-
https://www.p65warnings.ca.gov/.
WARNING
1 4 5
2
7
6
8
3
