Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 169
Section 5 - Procedures Service and Maintenance
on the box. Note the color and markings for each
wire.

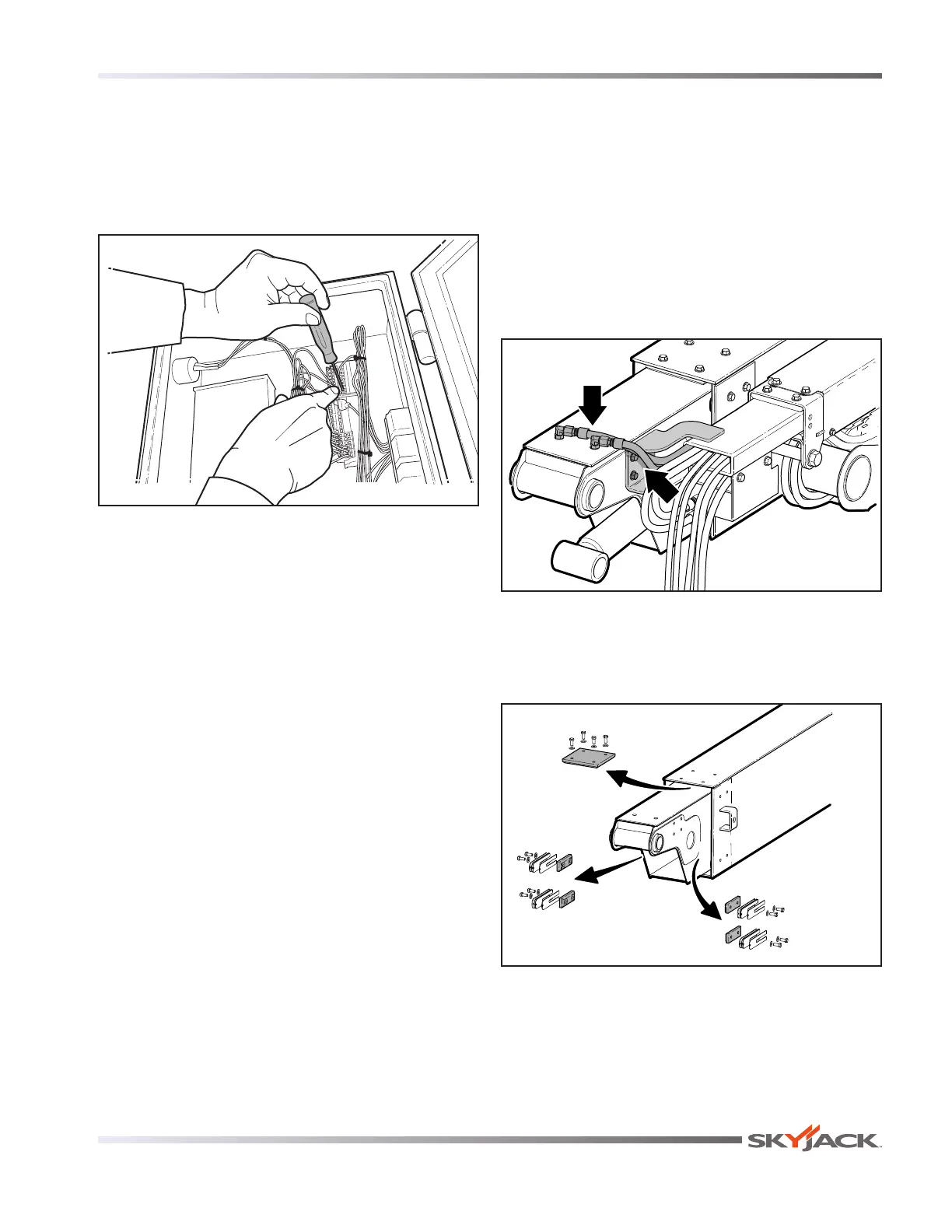

3. Insert a small at screwdriver into the slot beside
the wire position in the terminal strip to depress
the spring mechanism. Insert the end of the wire,
then pull out the screwdriver to secure it.
02
02
02
60/04
20D/41
34A/34
34A/35
36A/36
36A/37
82-/118
M62321AA
Control Console
4. Once the wires are all connected, close the lid and
turn the two box latches to fasten it.
The machine can now be operated for boom
repositioning purposes. Refer to the operator's manual
for information on using emergency power.
Fly Boom Section Removal
Procedure:
1. On the platform end of the boom, mark and
remove the slave cylinder hoses on the top side of
the y boom tip. Crack the lines slowly to relieve
any residual pressure. Provide a suitable container
or rags to catch any oil spillage. Cap hoses and
ports to keep them clean.
2. Remove the fasteners for the cable/hose tube
support on the side of the y boom.
M62030AA
Platform Level Hoses and Cable/hose Tube Support
3. Remove the top and side wear pads and shims
inside the platform end of the mid boom. Store
shims with appropriate parts for reassembly.
M62057AA
Remove Top and Side Wear Pads
4. Place a suitable stand that can bear the weight of
the y boom ahead of the machine.
5. Attach a lifting sling to the y boom tip and using
suitable lift equipment, slide it out 2/3 of the way.
Pull it out straight to avoid binding.
To Next Page
