Skyjack SJ61T Service Manual

Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 55
Section 3 - System Component Identification and Schematics Service and Maintenance

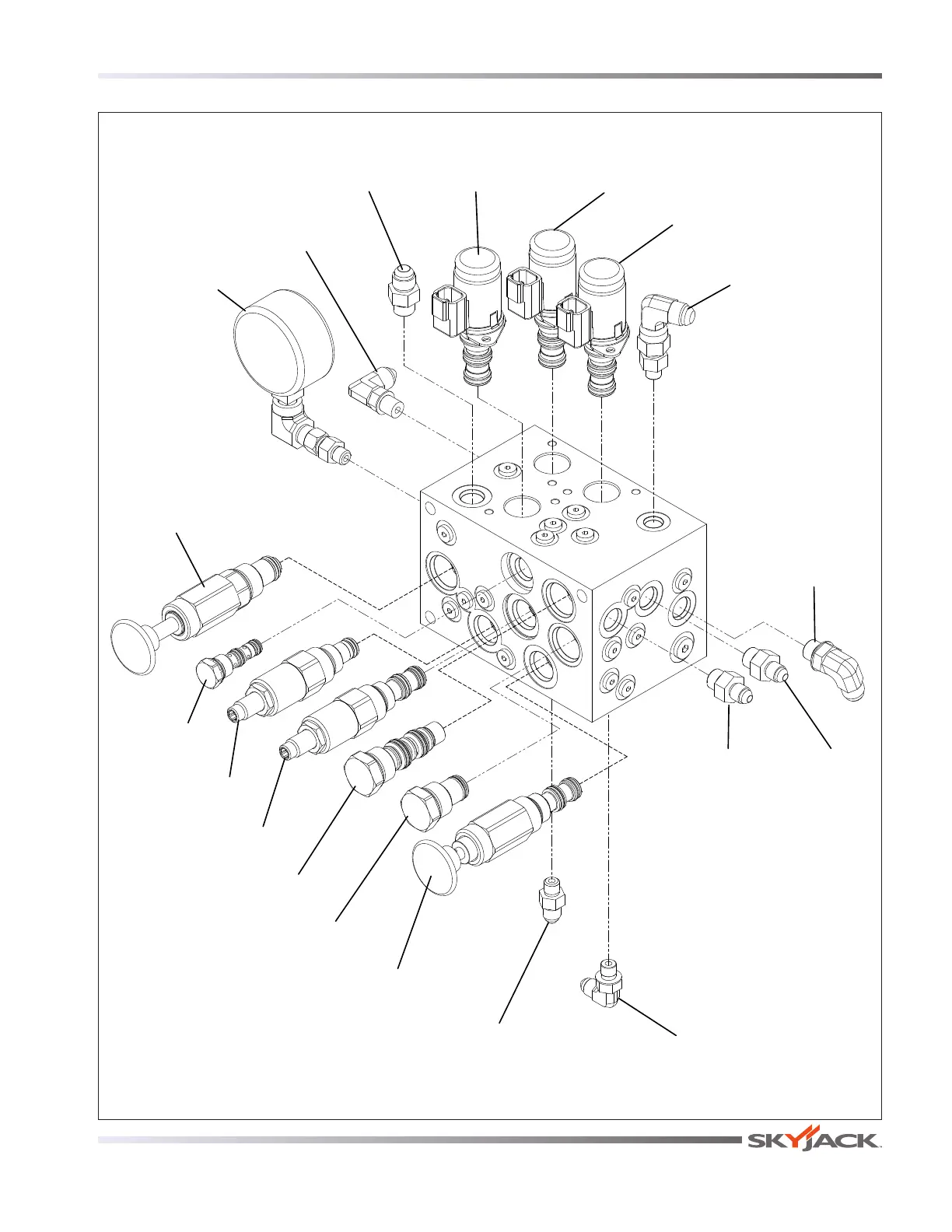

3.7 Brake Manifold and Port Identications
M164654AD_SM
3H-26
Brake Valve
3H-65
Axle Lockout Valve
3H-45
2 Speed Valve
2-SPD
To Rotary Manifold
BR
To Rotary Manifold
AL
To Rotary Manifold
BRG
Pressure Gauge
V3
Hand Pump
Release Valve
T
To Hydraulic Tank
M2
Drive Pump
M1
To Drive Pump
TO
To Hydraulic Tank
LS
To Main Manifold
SV5
Shuttle Valve
RV5
Relief Valve
PR1
Pressure Reducing Valve
V2
Loop Flush Valve
CV13
Check Valve
V1
Brake Release
Override Valve
AD
